IMPORTANT INFORMATION
1-7
EAS20230

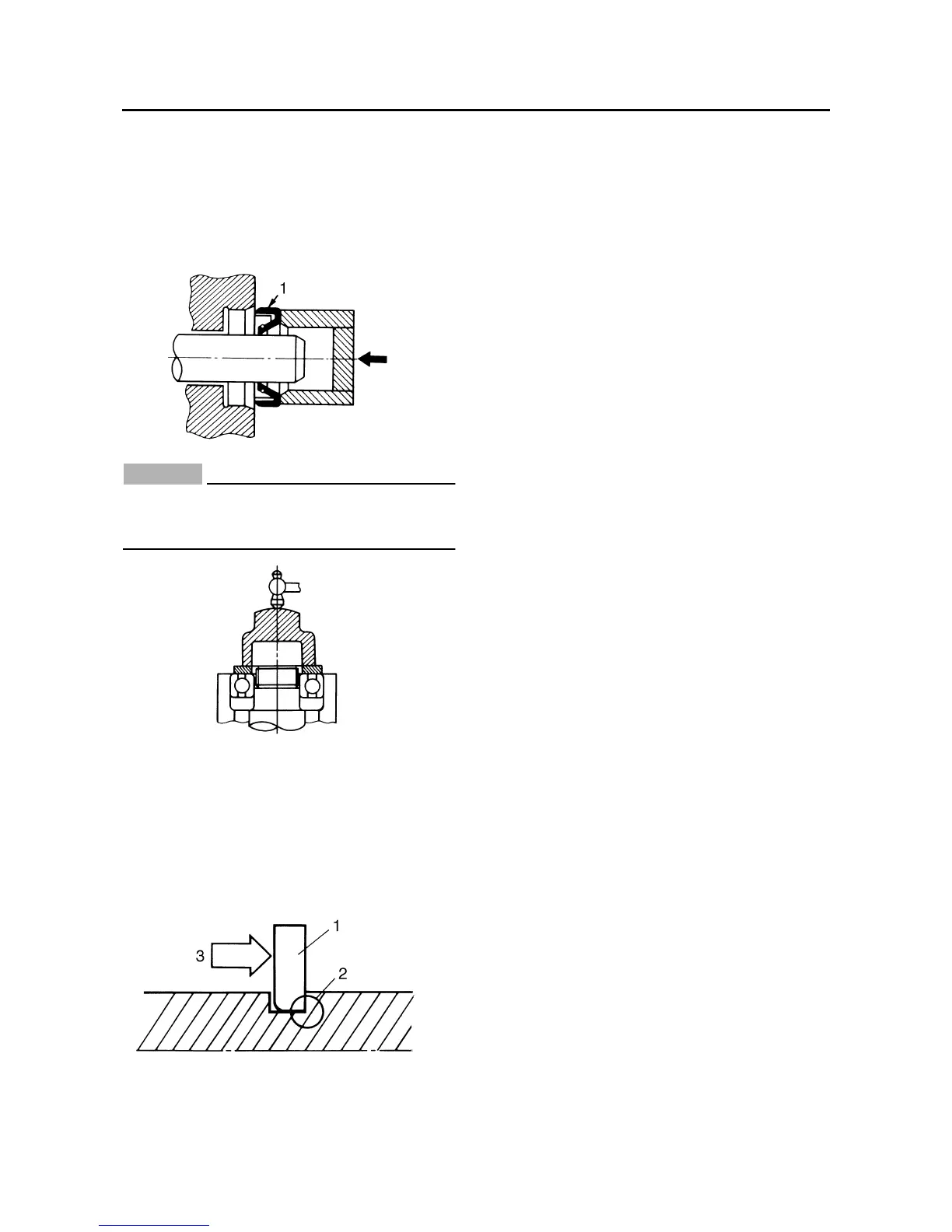

BEARINGS AND OIL SEALS
Install bearings and oil seals so that the manu-
facturer’s marks or numbers are visible. When
installing oil seals “1”, lubricate the oil seal lips
with a light coat of lithium-soap-based grease.
Oil bearings liberally when installing, if appropri-
ate.
CAUTION:
ECA13300
Do not spin the bearing with compressed air
because this will damage the bearing surfac-
es.
EAS20240
CIRCLIPS
Before reassembly, check all circlips carefully
and replace damaged or distorted circlips. Al-
ways replace piston pin clips after one use.
When installing a circlip “1”, make sure the
sharp-edged corner “2” is positioned opposite
the thrust “3” that the circlip receives.
