Yamaha XVS1300A 2007 - Checking the Shift Shaft; Checking the Stopper Lever; Installing the Shift Shaft

SHIFT SHAFT
5-57
EAS25420
CHECKING THE SHIFT SHAFT
1. Check:
• Shift shaft
Bends/damage/wear → Replace.
• Shift shaft spring
Damage/wear → Replace.
EAS25430
CHECKING THE STOPPER LEVER
1. Check:
• Stopper lever
Bends/damage → Replace.
Roller turns roughly → Replace the stopper
lever.
EAS25450

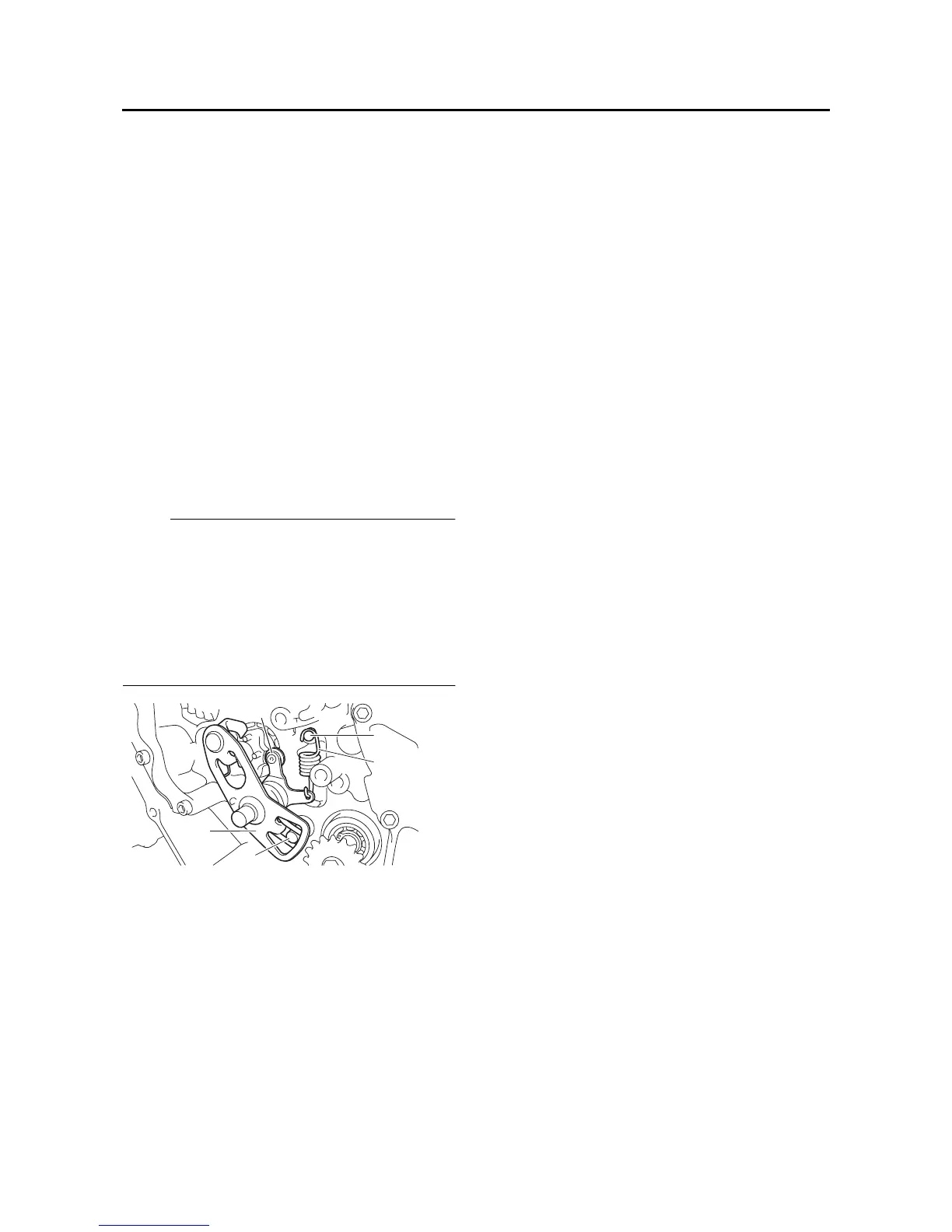

INSTALLING THE SHIFT SHAFT
1. Install:
• Stopper lever “1”
• Stopper lever spring “2”
• Shift shaft “3”
NOTE:
• Lubricate the oil seal lips with lithium-soap-
based grease.
• Hook the ends of the stopper lever spring onto
the stopper lever and the crankcase boss “4”.
• Mesh the stopper lever with the shift drum seg-
ment assembly.
• Hook the end of the shift shaft spring onto the
shift shaft spring stopper “5”.
4
2
3
1
5
