REAR BRAKE
4-32
EAS22550
REAR BRAKE

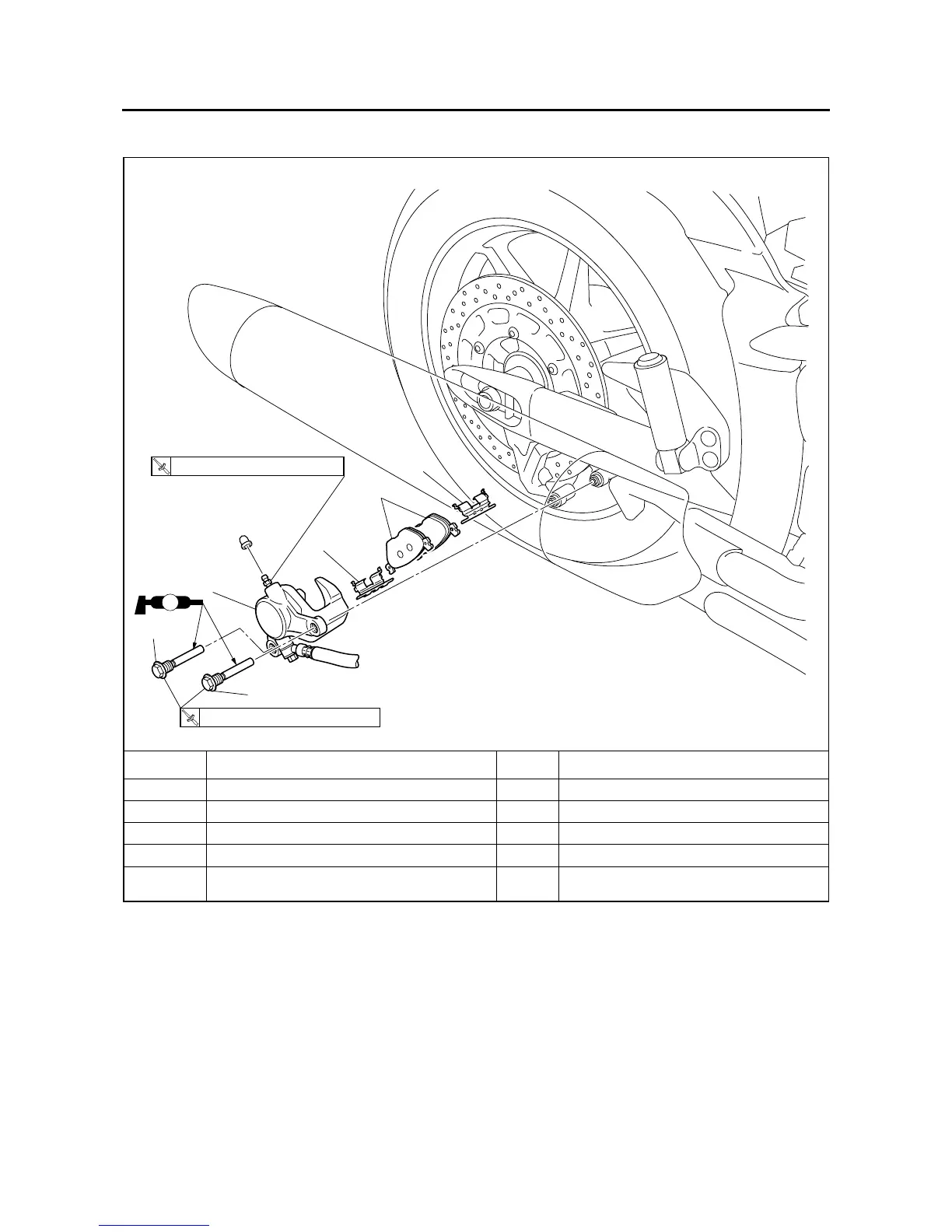

Removing the rear brake pads
Order Job/Parts to remove Q’ty Remarks
1 Rear brake caliper retaining bolt 2
2 Rear brake caliper 1
3 Rear brake pad 2
4 Brake pad spring 2
For installation, reverse the removal proce-
dure.
1
2
4
4
3
1
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
T
R
.
.
27 Nm (2.7 m
•
kg, 19 ft
•
Ib)
LS
