REAR BRAKE
4-33

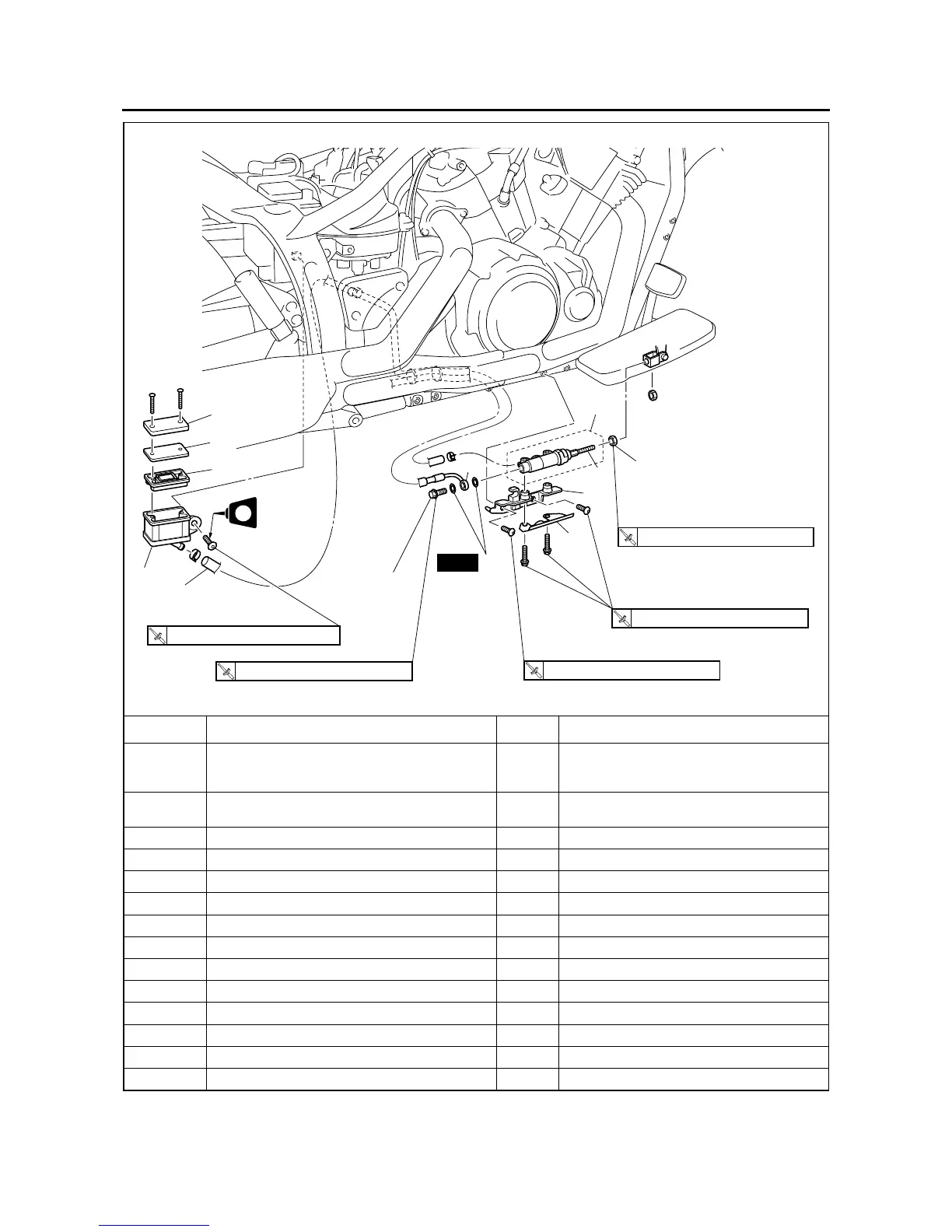

Removing the rear brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-21.
Sub-fuel tank cover
Refer to “GENERAL CHASSIS” on page
4-1.
1 Brake fluid reservoir cap 1
2 Brake fluid reservoir diaphragm holder 1
3 Brake fluid reservoir diaphragm 1
4 Brake fluid reservoir 1
5 Brake fluid reservoir hose 1
6 Locknut (rear brake master cylinder) 1 Loosen.
7 Brake pedal adjusting bolt 1 Loosen.
8 Rear brake hose union bolt 1
9 Copper washer 2
10 Rear brake hose 1
11 Rear brake master cylinder bracket 1
12 Rear brake master cylinder cover 1
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
3
4
2
5
1
6
7
13
8
10
11
12
9
New
LT
To Next Page
