FRONT WHEEL
4-10
4. Check:
• Wheel bearings
Front wheel turns roughly or is loose → Re-
place the wheel bearings.
• Oil seals
Damage/wear → Replace.
EAS21960
ASSEMBLING THE FRONT WHEEL
1. Install:
• Wheel bearings
• Oil seals
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼

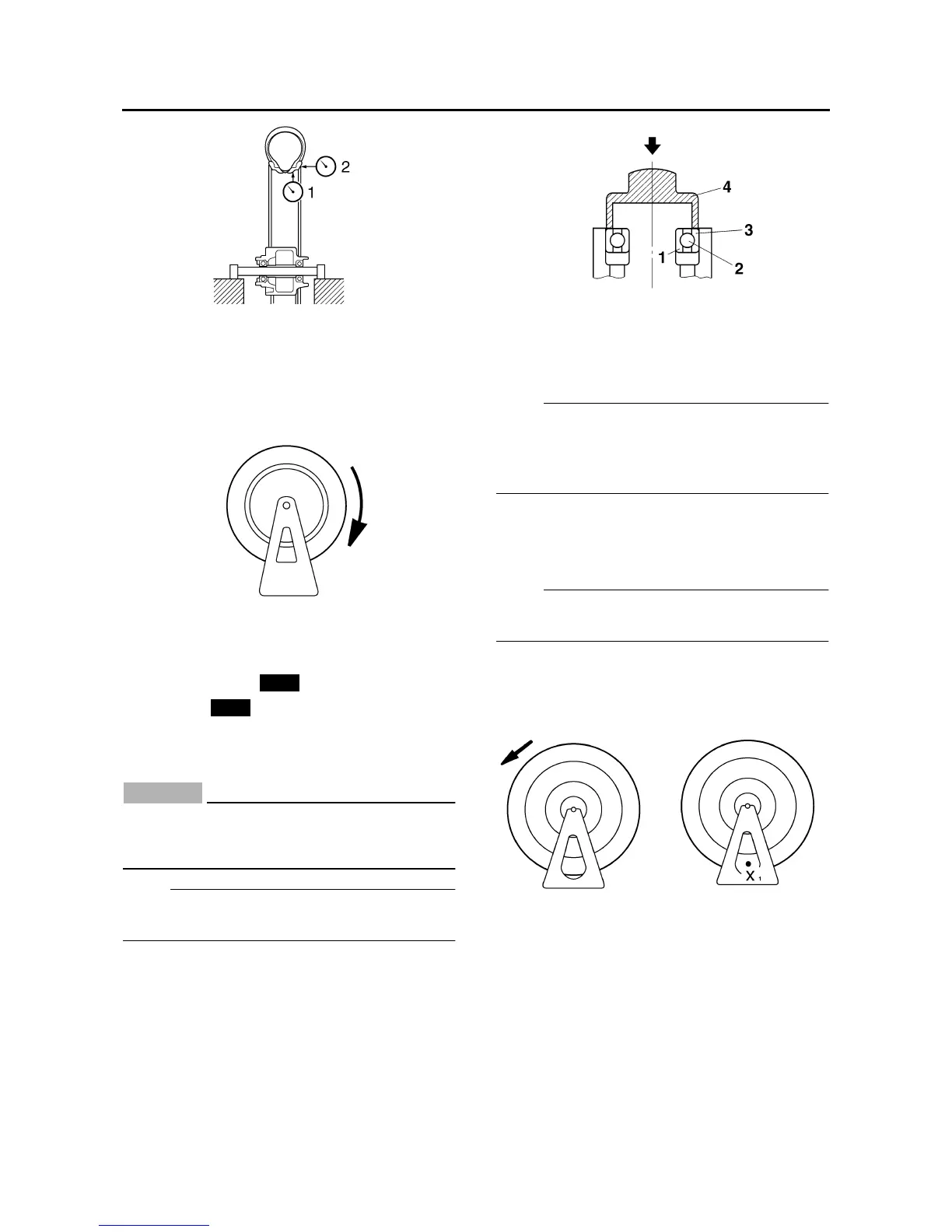

a. Install the new wheel bearings and oil seals in
the reverse order of disassembly.
CAUTION:
ECA3D81004
Do not contact the wheel bearing inner race
“1” or balls “2”. Contact should be made
only with the outer race “3”.
NOTE:
Use a socket “4” that matches the diameter of
the wheel bearing outer race and oil seal.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS21970
ADJUSTING THE FRONT WHEEL STATIC
BALANCE
NOTE:
• After replacing the tire, wheel or both, the front
wheel static balance should be adjusted.
• Adjust the front wheel static balance with the
brake discs installed.
1. Remove:
• Balancing weight(s)
2. Find:
• Front wheel’s heavy spot
NOTE:
Place the front wheel on a suitable balancing
stand.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Spin the front wheel.
b. When the front wheel stops, put an “X
1
” mark
at the bottom of the wheel.
c. Turn the front wheel 90° so that the “X
1
” mark
is positioned as shown.
d. Release the front wheel.
e. When the wheel stops, put an “X
2
” mark at
the bottom of the wheel.
New
New
