ENGINE REMOVAL
5-5
Disconnecting the leads and hoses

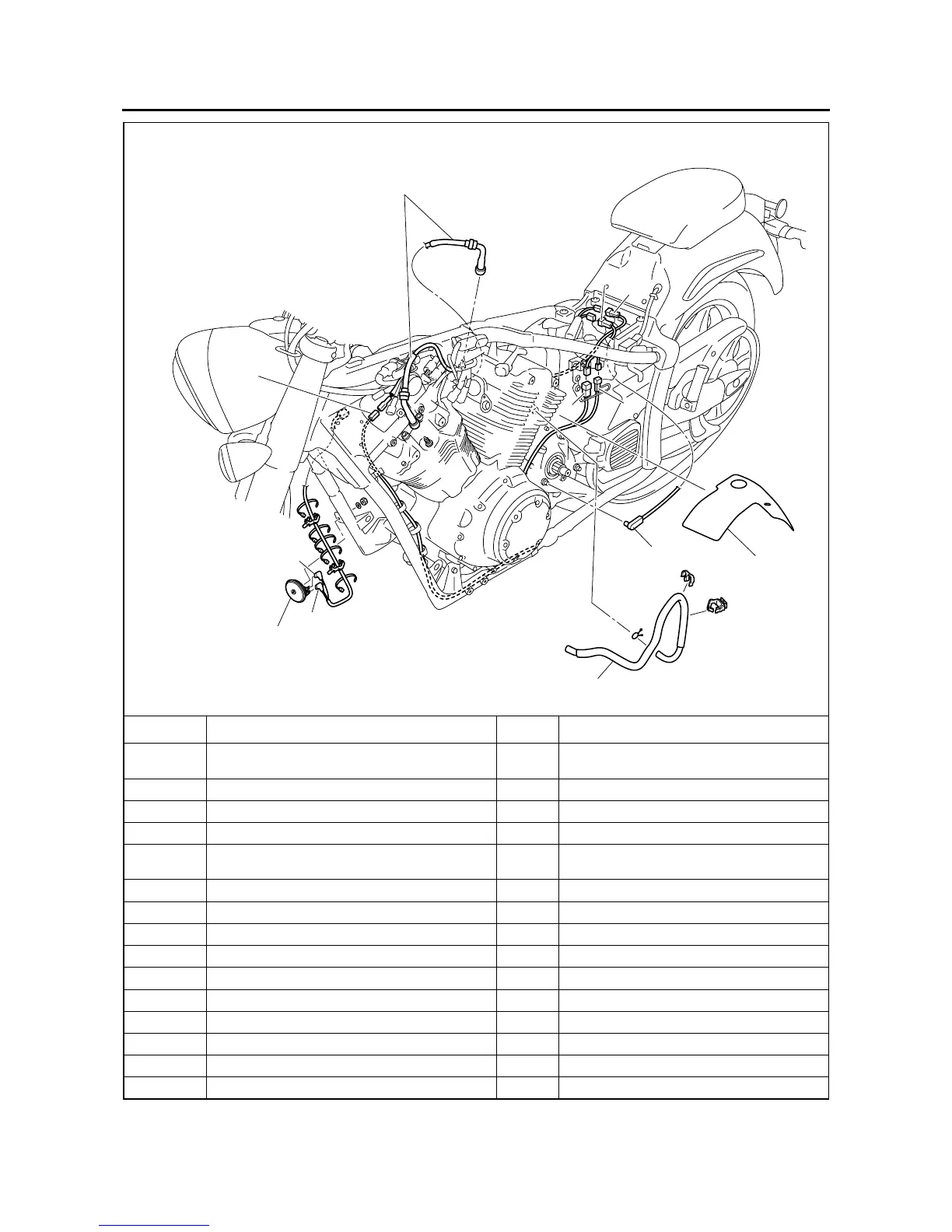

Order Job/Parts to remove Q’ty Remarks
Sub-fuel tank cover
Refer to “GENERAL CHASSIS” on page
4-1.
Radiator Refer to “RADIATOR” on page 6-1.
Thermostat Refer to “THERMOSTAT” on page 6-4.
Intake manifold assembly Refer to “THROTTLE BODIES” on page 7-6.
Starter motor
Refer to “ELECTRIC STARTER” on page
5-61.
1 Oil level switch coupler 1 Disconnect.
2 Spark plug cap 2 Disconnect.
3 Crankcase breather hose 1
4 Stator coil coupler 1 Disconnect.
5 Crankshaft position sensor coupler 1 Disconnect.
6 Speed sensor coupler 1 Disconnect.
7 Neutral switch coupler 1 Disconnect.
8 Neutral switch connector 1 Disconnect.
9 Horn connector 2 Disconnect.
10 Horn 1
1
9
10
2
3
4
5
7
6
8
11
9
