ELECTRIC STARTER
5-62

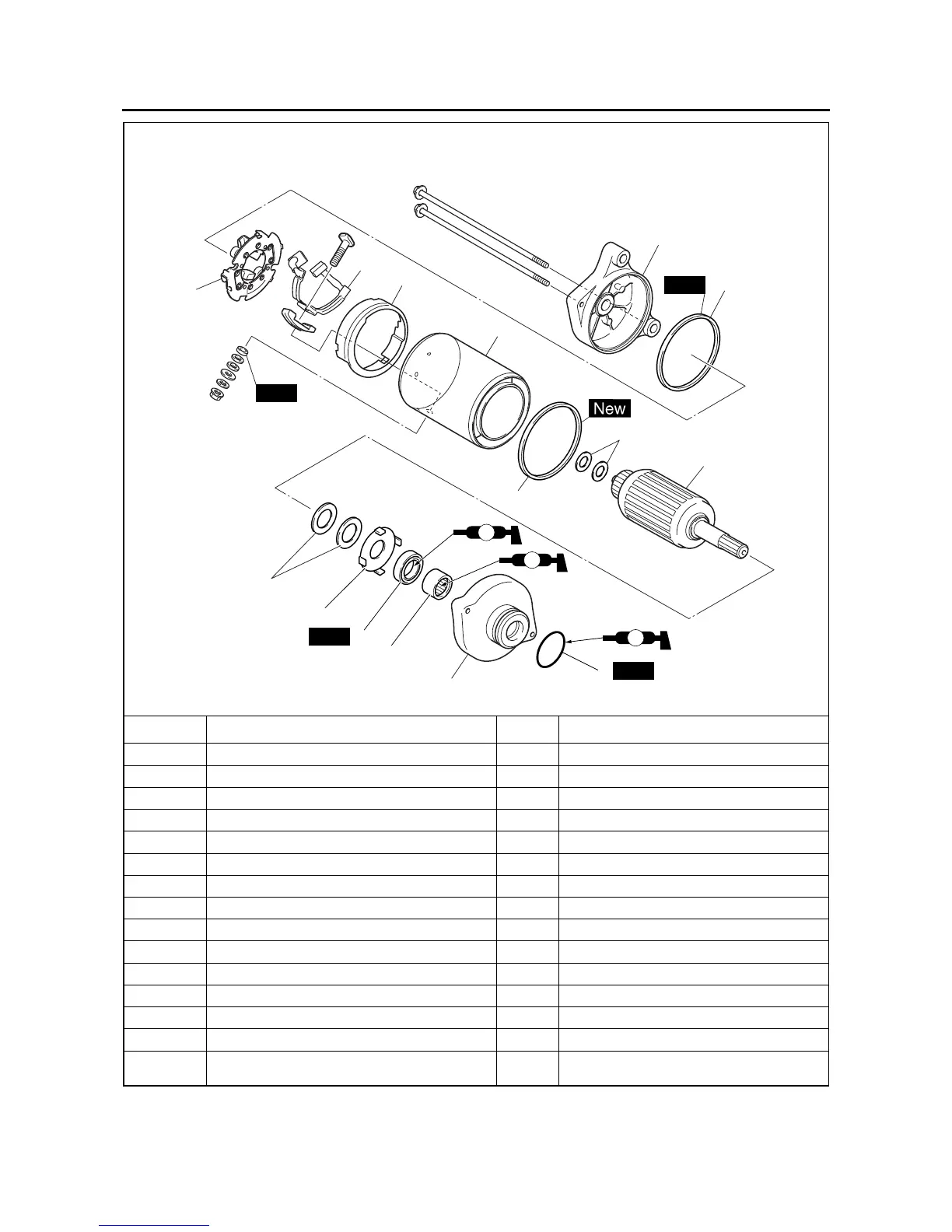

Disassembling the starter motor
Order Job/Parts to remove Q’ty Remarks
1O-ring 1
2 Starter motor front cover 1
3 Lock washer 1
4Washer set 1
5 Oil seal 1
6 Bearing 1
7 Armature assembly 1
8Washer set 1
9 Starter motor rear cover 1
10 Gasket 2
11 Brush seat (along with the brushes) 1
12 Brush holder (along with the brushes) 1
13 Brush holder bracket 1
14 Starter motor yoke 1
For assembly, reverse the disassembly pro-
cedure.
2
6
5
4
7
10
10
14
9
8
13
12
11
New
New
NewNewNew
LS
E
3
1
LS
New
To Next Page
