FRONT BRAKE
4-21

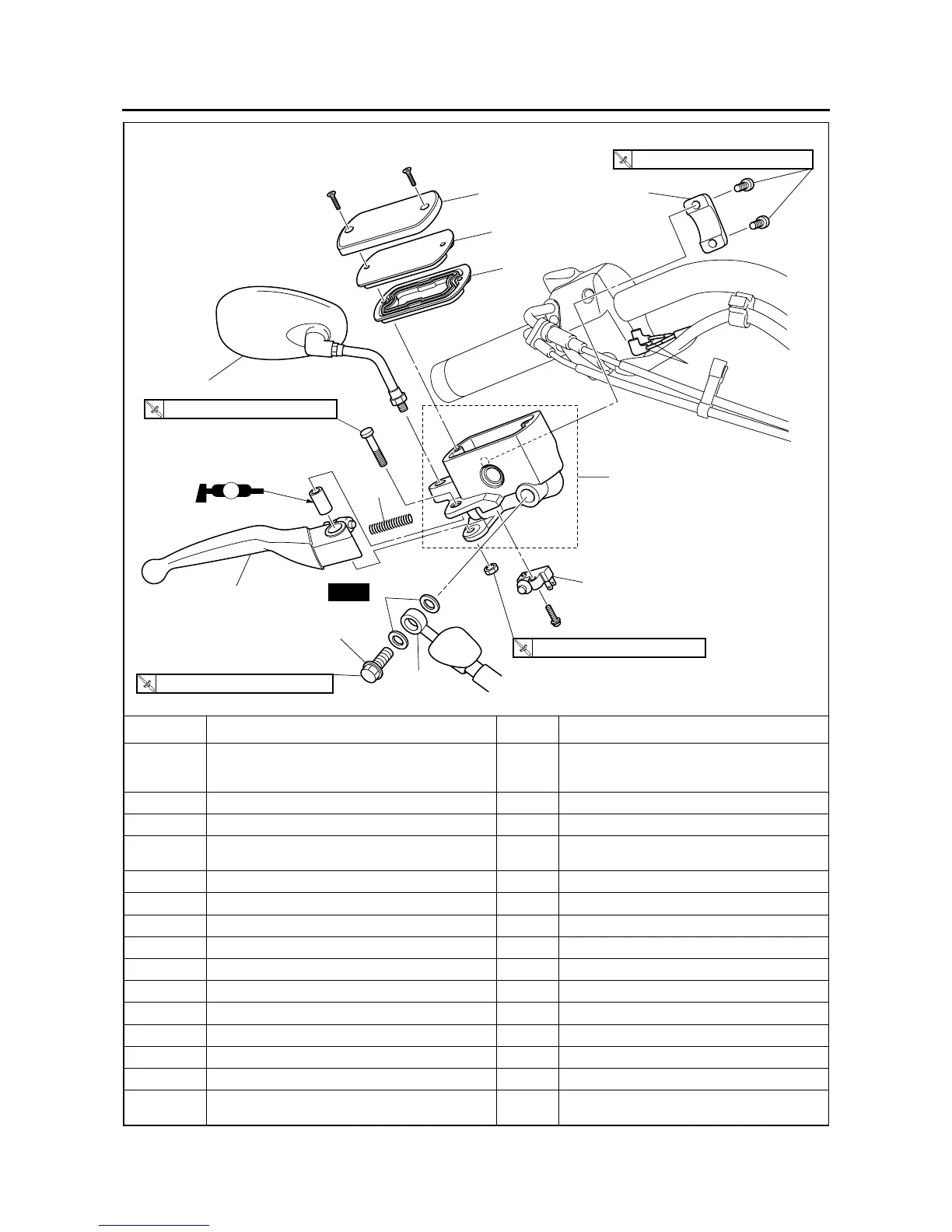

Removing the front brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-21.
1 Right rearview mirror 1
2 Brake master cylinder reservoir cap 1
3
Brake master cylinder reservoir diaphragm hold-
er
1
4 Brake master cylinder reservoir diaphragm 1
5Brake lever 1
6Spring 1
7 Front brake light switch connector 2 Disconnect.
8 Front brake hose union bolt 1
9 Copper washer 2
10 Front brake hose 1
11 Front brake master cylinder holder 1
12 Front brake master cylinder 1
13 Front brake light switch 1
For installation, reverse the removal proce-
dure.
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
1
5
6
7
8
10
9
2
3
4
11
12
13
New
LS
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
