GENERAL CHASSIS
4-1
EAS21830
GENERAL CHASSIS

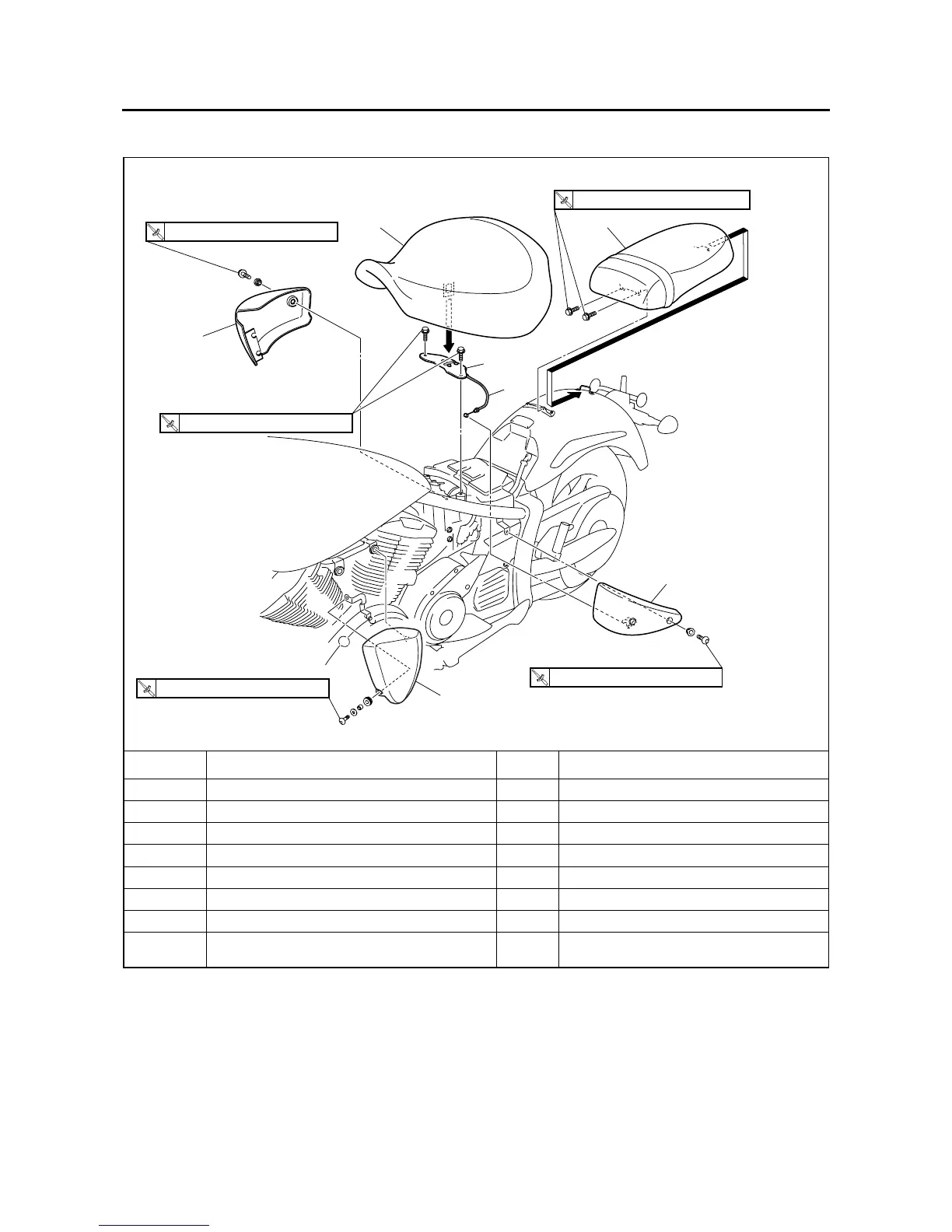

Removing the rider seat and left side cover
Order Job/Parts to remove Q’ty Remarks
1 Rider seat 1
2 Passenger seat 1
3 Sub-fuel tank cover 1
4Relay cover 1
5 Seat lock cable 1 Disconnect.
6 Seat lock bracket 1
7 Left side cover 1
For installation, reverse the removal proce-
dure.
7
4
2
1
3
6
5
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
R
.
.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
