GENERAL CHASSIS
4-3

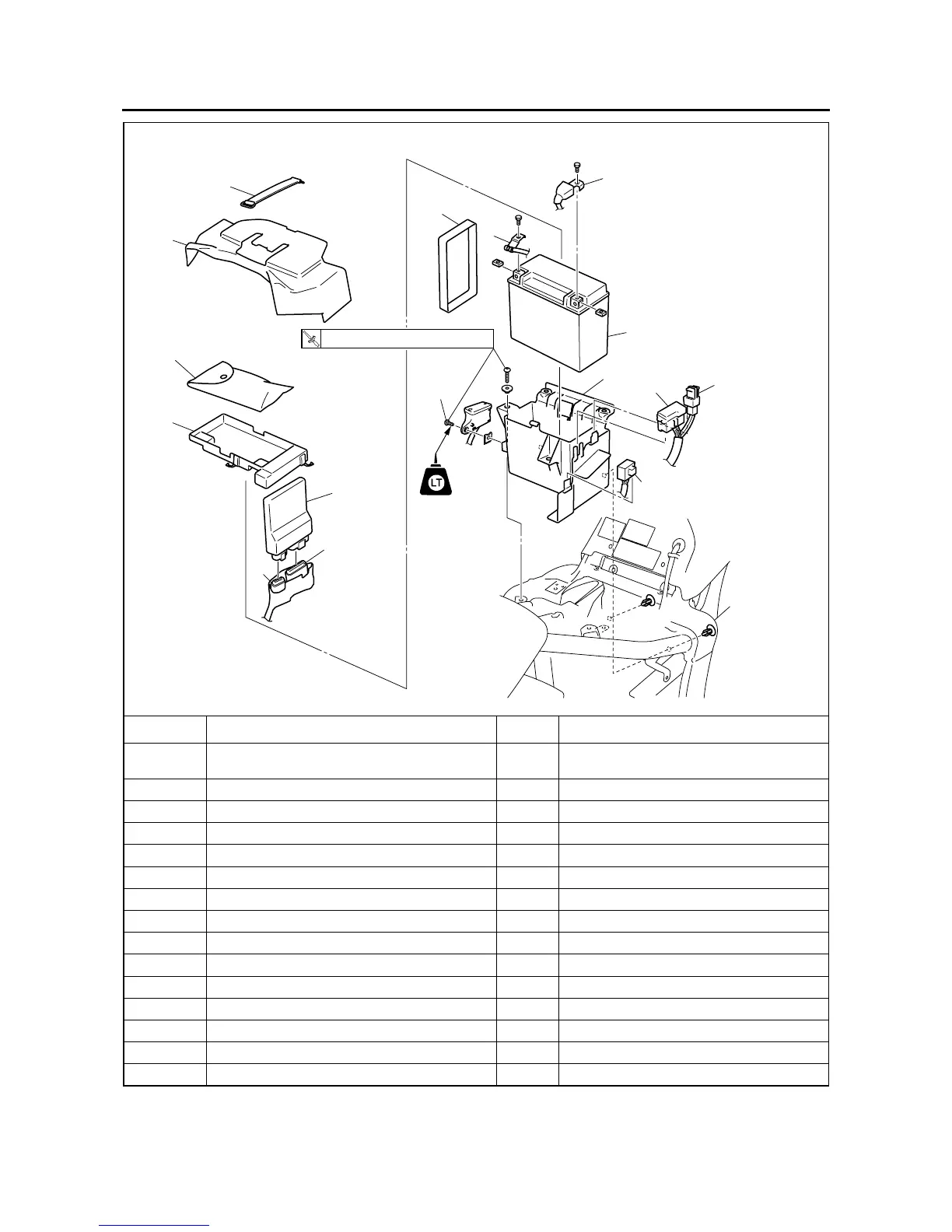

Removing the battery
Order Job/Parts to remove Q’ty Remarks
Rider seat/Sub-fuel tank cover
Refer to “GENERAL CHASSIS” on page
4-1.
1 Battery cover band 1
2 Battery cover 1
3Tool kit 1
4 Tool kit tray 1
5 Negative battery lead 1 Disconnect.
6 Positive battery lead 1 Disconnect.
7Battery 1
8 Battery band 1
9 ECU coupler 2 Disconnect.
10 ECU (engine control unit) 1
11 Fuse box 1
12 Main fuse 1
13 Relay unit 1
14 Rear brake fluid reservoir bolt 1
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
2
1
3
4
10
9
9
5
6
7
8
15
14
11
12
13
(4)
