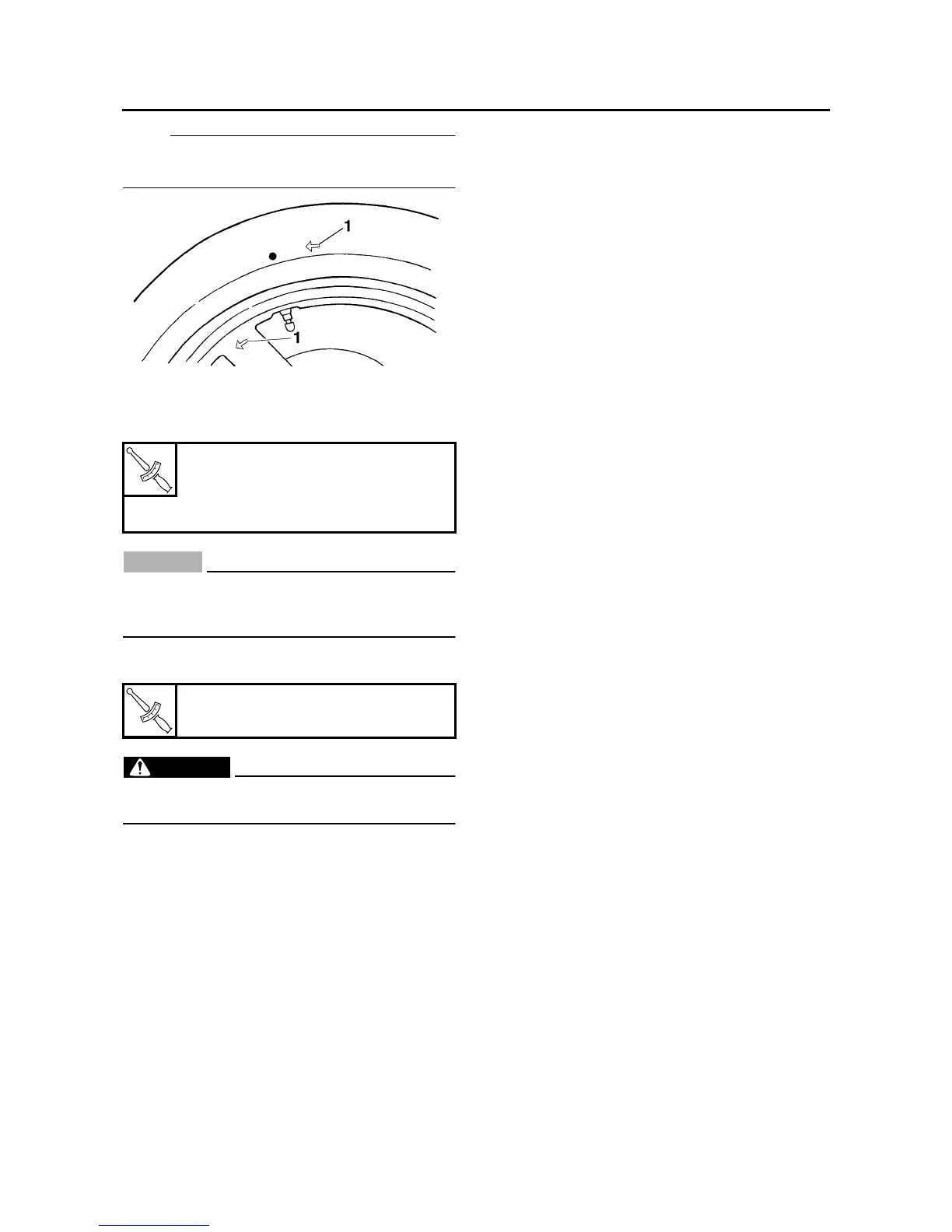

FRONT WHEEL
4-12
NOTE:
Install the tire and wheel with the marks “1”
pointing in the direction of wheel rotation.
5. Tighten:
• Front wheel axle
• Front wheel axle pinch bolt
CAUTION:
ECA3D81011
Before tightening the wheel axle, push down
hard on the handlebar several times and
check if the front fork rebounds smoothly.
6. Install:
• Front brake calipers
WARNING
EWA3D81008
Make sure the brake hoses are routed prop-
erly.
T
R
.
.
Front wheel axle
59 Nm (5.9 m·kg, 43 ft·lb)
Front wheel axle pinch bolt
20 Nm (2.0 m·kg, 14 ft·lb)
T
R
.
.
Front brake caliper bolt
40 Nm (4.0 m·kg, 29 ft·lb)
