REAR WHEEL
4-14

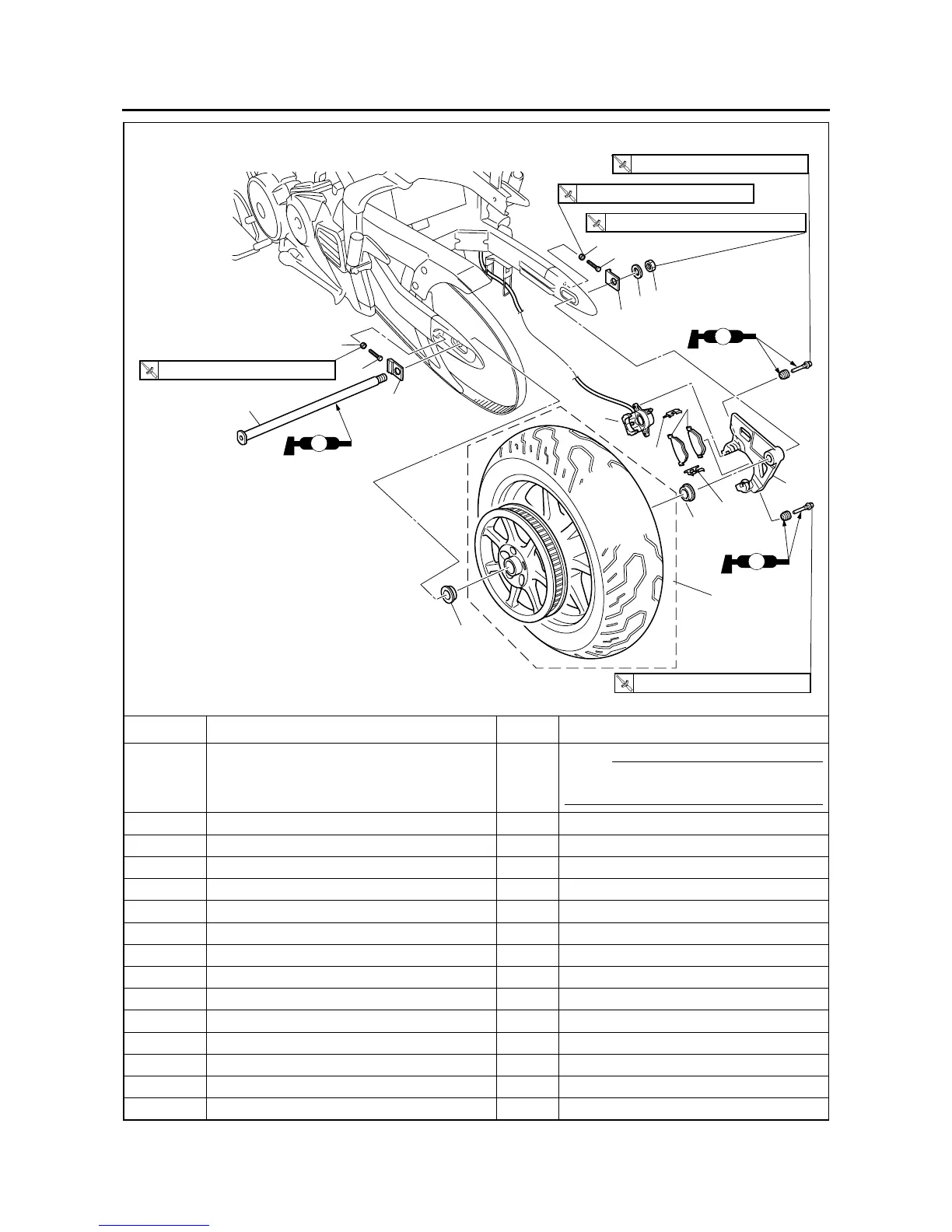

Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
NOTE:
Place the vehicle on a suitable stand so that
the rear wheel is elevated.
Muffler Refer to “ENGINE REMOVAL” on page 5-1.
1 Rear brake caliper 1
2 Rear brake pad 2
3 Brake pad spring 2
4 Drive belt adjusting locknut 2 Loosen.
5 Drive belt adjusting bolt 2 Loosen.
6 Rear wheel axle nut 1
7Washer 1
8 Rear wheel axle 1
9 Right drive belt puller 1
10 Left drive belt puller 1
11 Rear brake caliper bracket 1
12 Collar 1 Black
13 Collar 1 Silver
3
1
2
LS
LS
T
R
.
.
27 Nm (2.7 m
•
kg, 19 ft
•
Ib)
T
R
.
.
27 Nm (2.7 m
•
kg, 19 ft
•
Ib)
T
R
.
.
150 Nm (15.0 m
•
kg, 110 ft
•
lb)
LS
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
11
8
3
12
14
6
7
13
4
5
9
4
5
10
To Next Page
