Yamaha XVS1300A 2007 - Page 160

REAR BRAKE
4-35

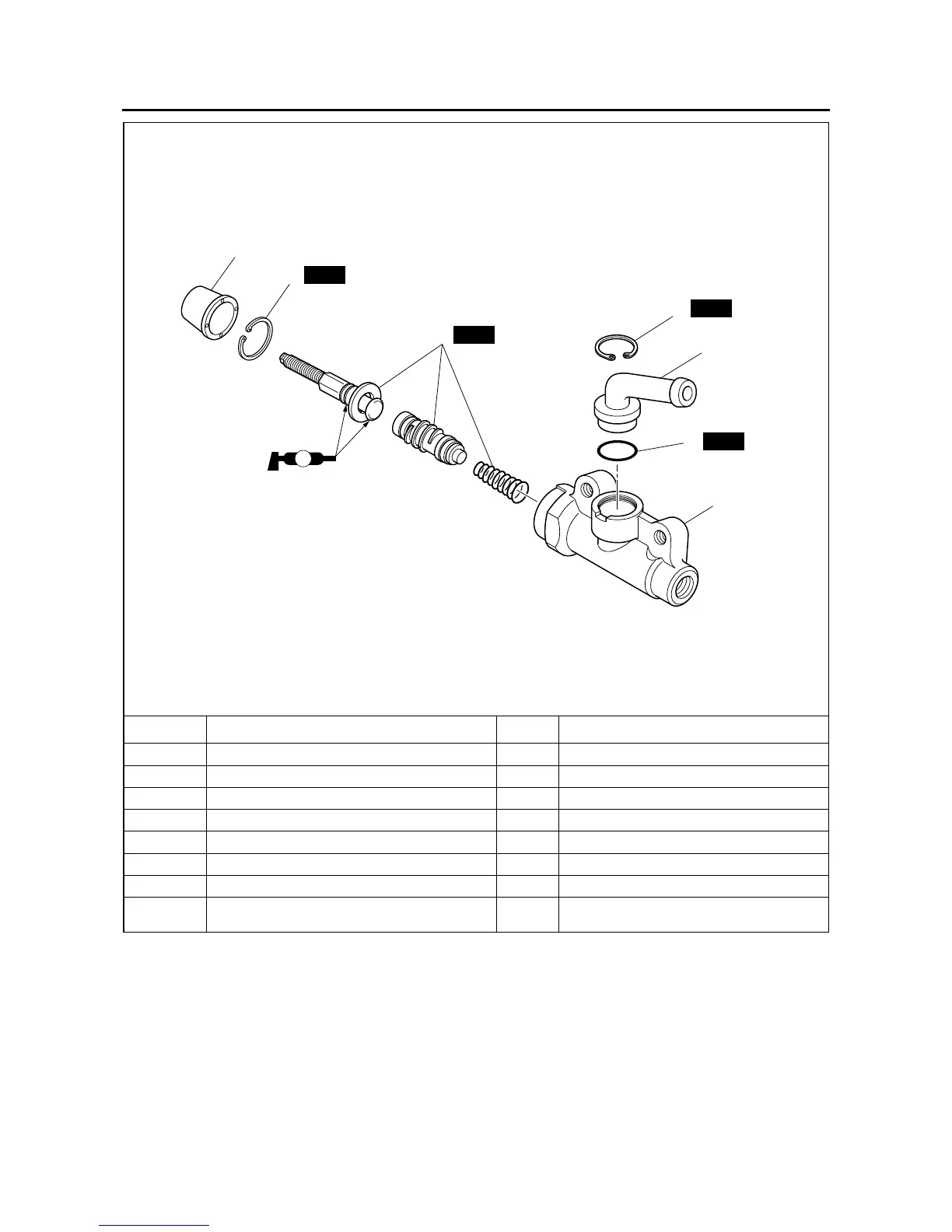

Disassembling the rear brake master cylinder
Order Job/Parts to remove Q’ty Remarks
1 Dust boot 1
2 Circlip 1
3 Brake master cylinder kit 1
4 Circlip 1
5 Brake hose joint 1
6O-ring 1
7 Brake master cylinder body 1
For assembly, reverse the disassembly pro-
cedure.
1
2
3
4
5
6
7
New
New
New
New
LS
