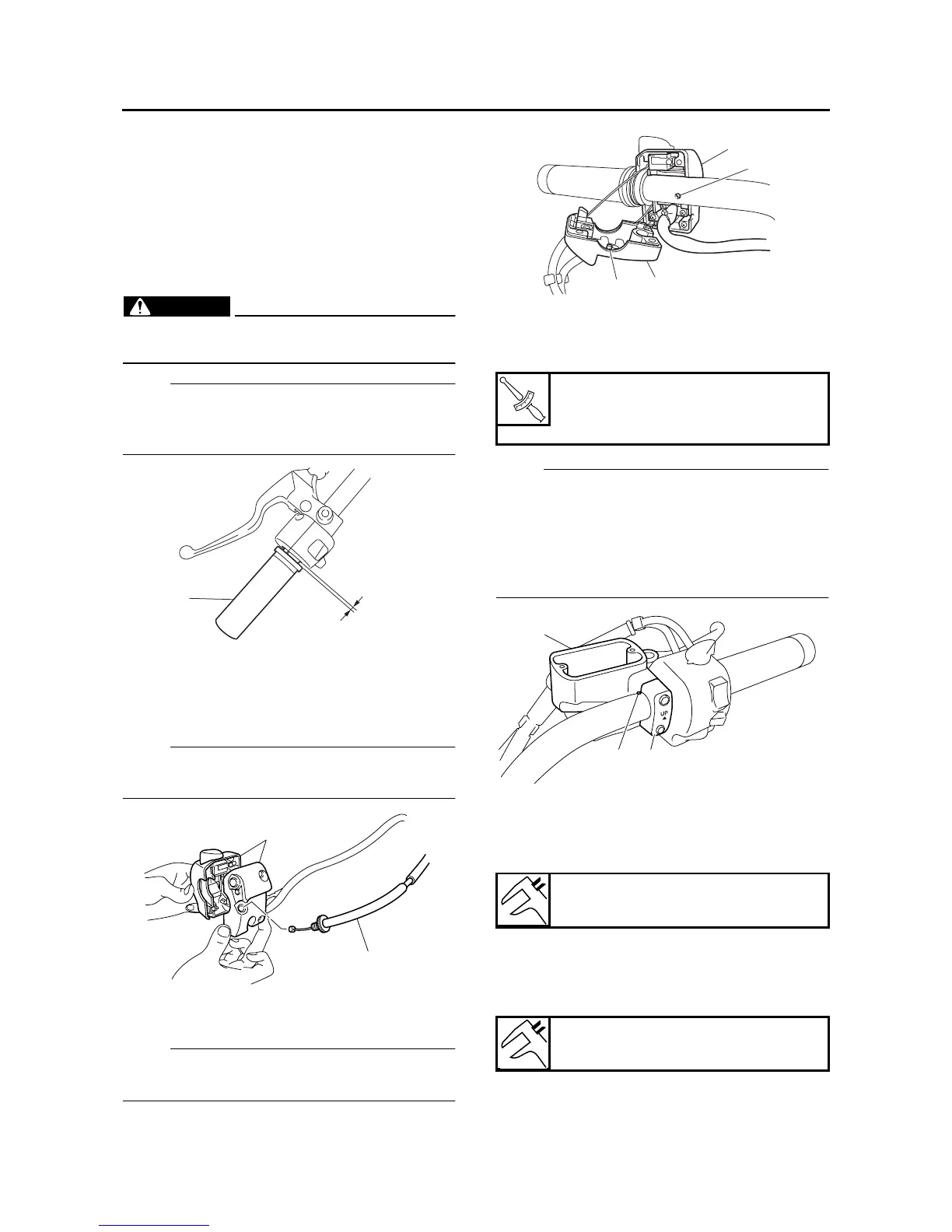

HANDLEBAR
4-46
5. Install:
• Handlebar grip “1”
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Apply a thin coat of rubber adhesive onto the
left end of the handlebar.
b. Slide the handlebar grip over the left end of
the handlebar.
c. Wipe off any excess rubber adhesive with a
clean rag.
WARNING
EWA13700
Do not touch the handlebar grip until the rub-
ber adhesive has fully dried.
NOTE:
There should be less than 3 mm (0.12 in) of
clearance “a” between the handlebar grip and
left handlebar switch.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
6. Connect:
• Throttle cable (decelerator cable) “1”
(to the right handlebar switch “2”)
NOTE:
Rotate the right handlebar switch and screw it
onto the end of the throttle cable.
7. Install:
• Right handlebar switch “1”
NOTE:
Align the projection “a” on the right handlebar
switch with the hole “b” in the handlebar.
8. Install:
• Front brake master cylinder “1”
• Front brake master cylinder holder “2”
NOTE:
• Install the front brake master cylinder holder
with the “UP” mark facing up.
• Align the end of the front brake master cylinder
holder with the punch mark “a” on the handle-
bar.
• First, tighten the upper bolt, then the lower bolt.
9. Adjust:
• Clutch lever free play
Refer to “ADJUSTING THE CLUTCH LEVER
FREE PLAY” on page 3-12.
10.Adjust:
• Throttle cable free play
Refer to “ADJUSTING THE THROTTLE CA-
BLE FREE PLAY” on page 3-7.
1
a
2
1
T
R
.
.
Front brake master cylinder hold-
er bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Clutch lever free play
5.0–10.0 mm (0.20–0.39 in)
Throttle cable free play
4.0–6.0 mm (0.16–0.24 in)
1
1
b
a
2
a
1
