FRONT FORK
4-49

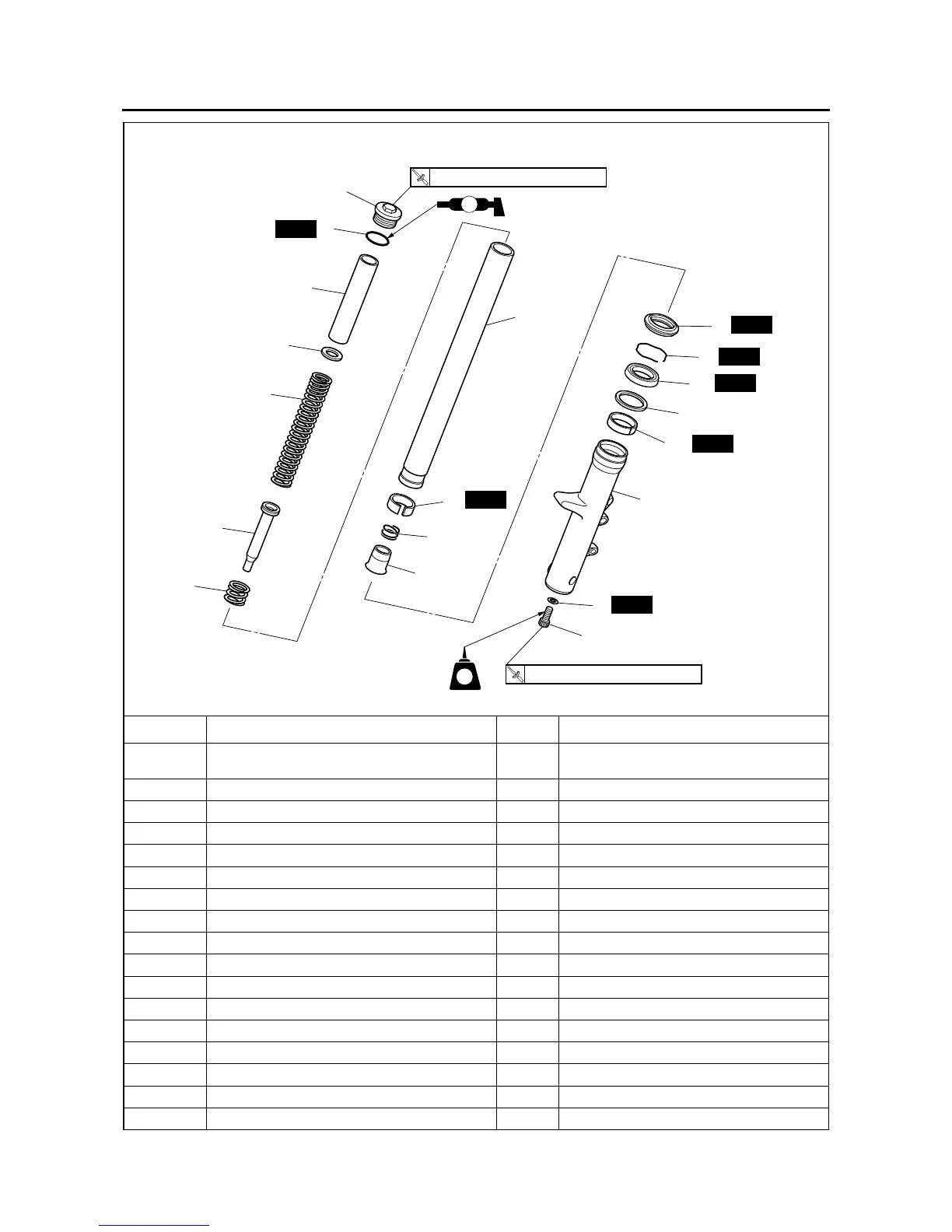

Disassembling the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
1 Cap bolt 1
2O-ring 1
3 Spacer 1
4 Spring seat 1
5 Fork spring 1
6 Dust seal 1
7 Oil seal clip 1
8 Damper rod bolt 1
9 Copper washer 1
10 Damper rod 1
11 Rebound spring 1
12 Inner tube 1
13 Oil seal 1
14 Washer 1
15 Outer tube bushing 1
16 Inner tube bushing 1
6
7
13
14
12
16
17
18
9
8
19
15
5
10
11
1
2
3
4
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
LS
LT
New
New
New
New
New
New
New
