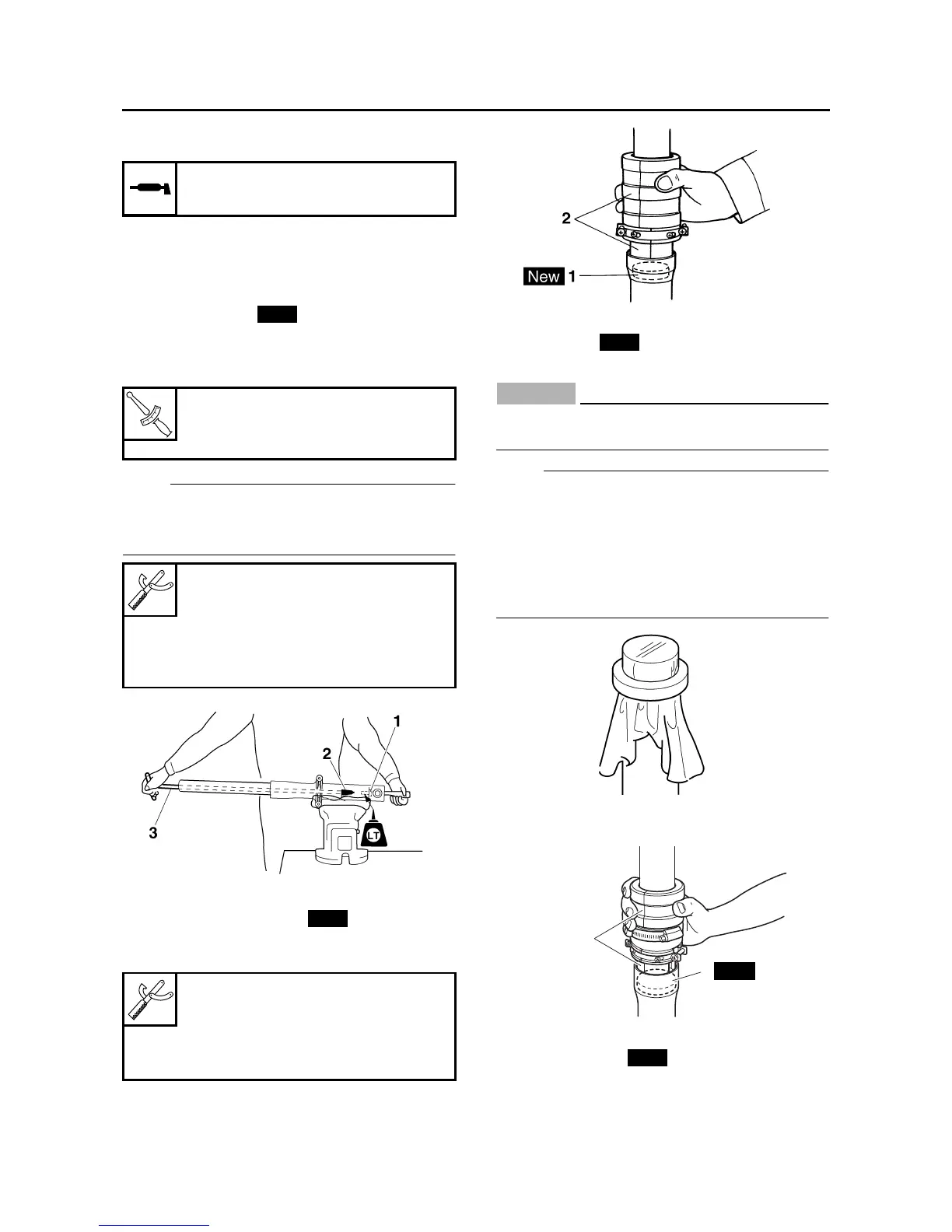

FRONT FORK
4-53
2. Lubricate:
• Inner tube’s outer surface
3. Install:
• Inner tube
(in the outer tube)
4. Install:
• Copper washer
• Damper rod bolt
5. Tighten:
• Damper rod bolt “1”
NOTE:
While holding the damper rod assembly with the
damper rod holder “2” and T-handle “3”, tighten
the damper rod bolt.
6. Install:
• Outer tube bushing “1”
• Washer
(with the fork seal driver “2”)
7. Install:
• Oil seal “1”
(with the fork seal driver “2”)
CAUTION:
ECA14220
Make sure the numbered side of the oil seal
faces up.
NOTE:
• Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
• Lubricate the outer surface of the inner tube
with fork oil.
• Before installing the oil seal, cover the top of
the front fork leg with a plastic bag to protect
the oil seal during installation.
8. Install:
• Oil seal clip “1”
Recommended oil
Yamaha fork oil 10WT
T
R
.
.
Damper rod bolt
30 Nm (3.0 m·kg, 22 ft·lb)
LOCTITE®
Damper rod holder
90890-01460
T-handle
90890-01326
T-handle 3/8" drive 60 cm long
YM-01326
Fork seal driver
90890-01442
Adjustable fork seal driver (36–46
mm)
YM-01442
New
New
New
1
2
New
New
