ENGINE REMOVAL
5-10

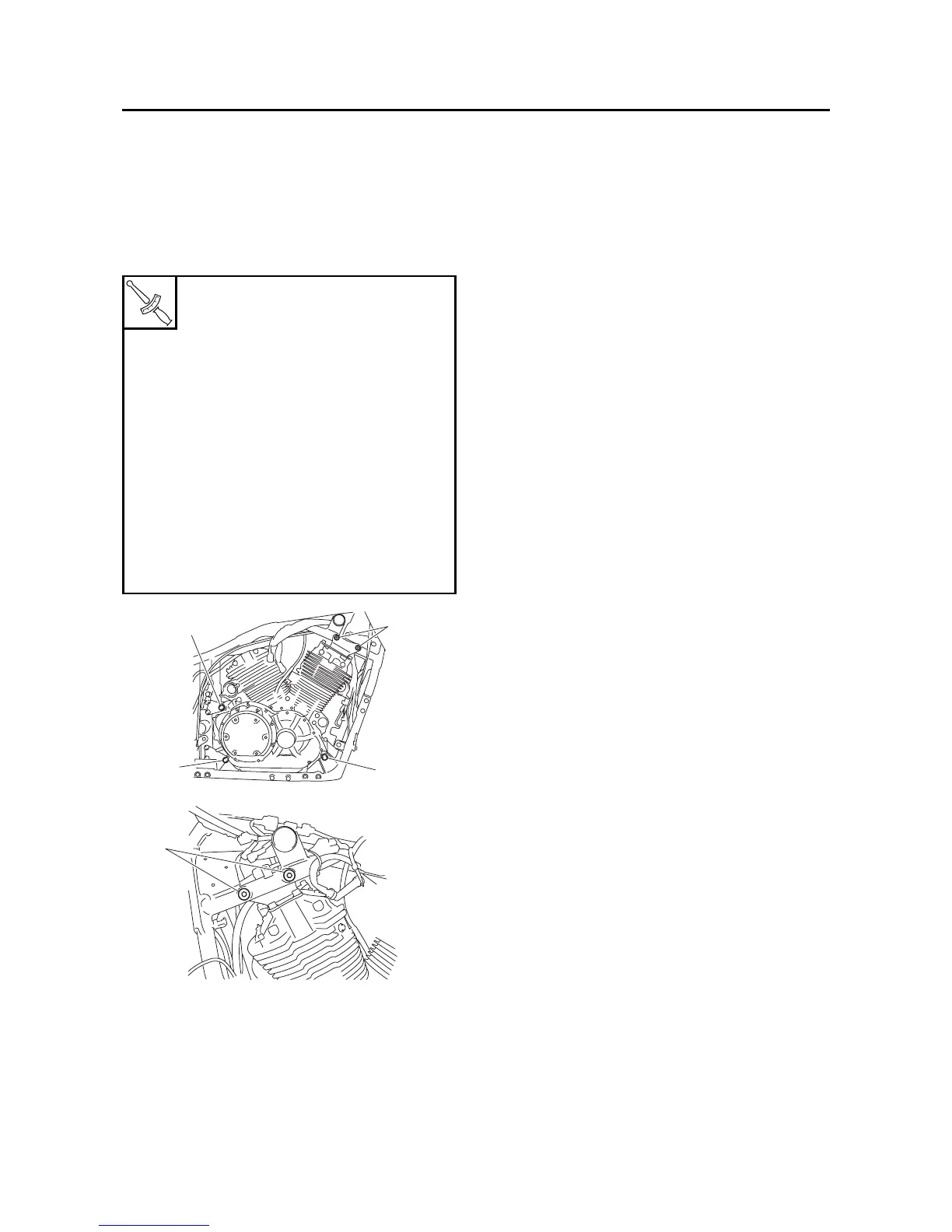

4. Tighten:
• Engine mounting bolts (front right upper side)
“4”
• Engine mounting bolts (front left upper side)
“5”
• Engine mounting nut (rear lower side) “11”
• Engine mounting nut (rear upper side) “13”
• Engine mounting nut (front lower side) “16”
T
R
.
.
Engine mounting bolt (front right
upper side)
48 Nm (4.8 m·kg, 35 ft·lb)
LOCTITE®
Engine mounting bolt (front left
upper side)
48 Nm (4.8 m·kg, 35 ft·lb)
LOCTITE®
Engine mounting nut (rear lower
side)
88 Nm (8.8 m·kg, 64 ft·lb)
Engine mounting nut (rear upper
side)
88 Nm (8.8 m·kg, 64 ft·lb)
Engine mounting nut (front lower
side)
88 Nm (8.8 m·kg, 64 ft·lb)
13
11
4
16
5
