GENERATOR AND STARTER CLUTCH
5-41

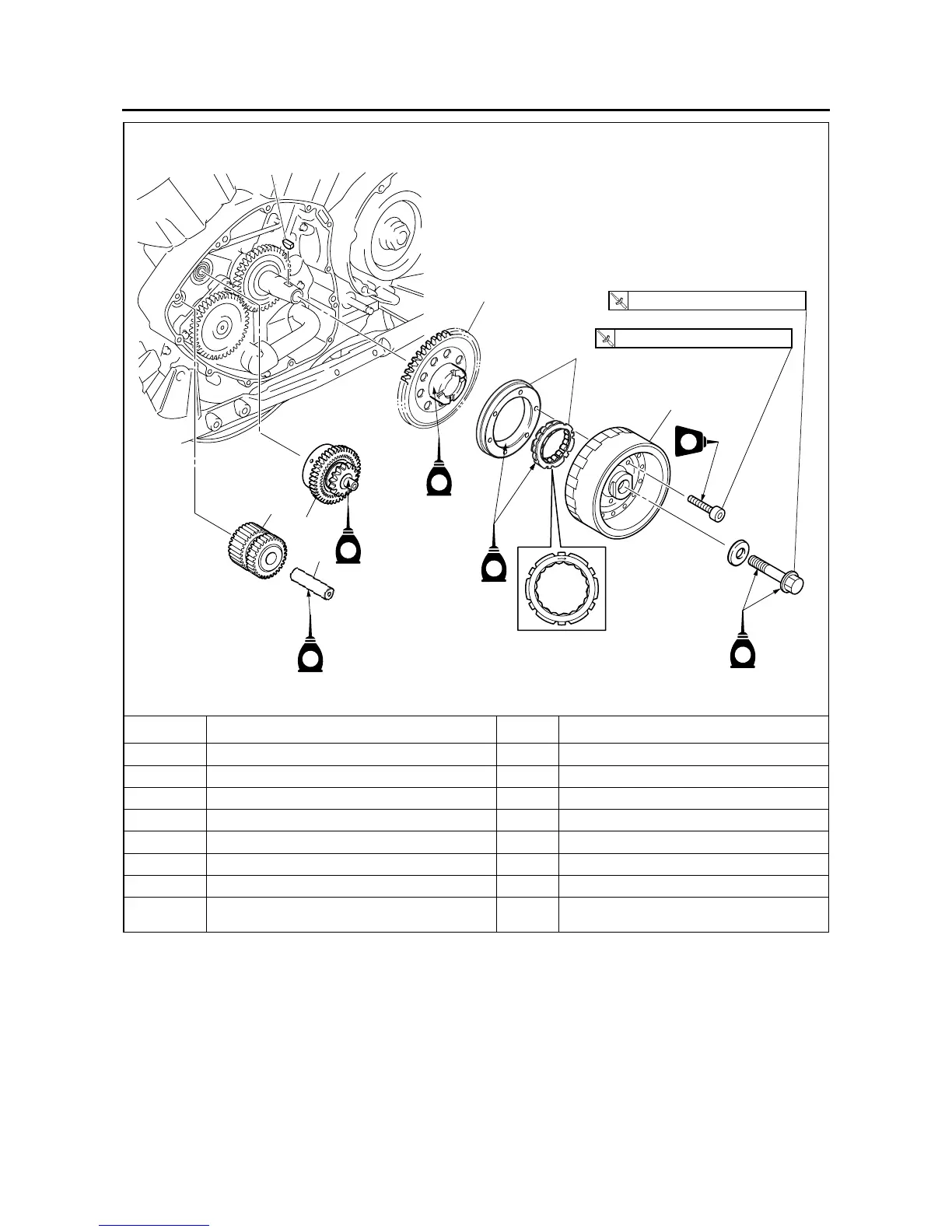

Removing the generator rotor and starter clutch
Order Job/Parts to remove Q’ty Remarks
1 Generator rotor 1
2 Starter clutch 1
3 Woodruff key 1
4 Starter clutch gear 1
5 Torque limiter 1
6 Starter clutch idle gear shaft 1
7 Starter clutch idle gear 1
For installation, reverse the removal proce-
dure.
(6)
LT
1
6
7
5
4
3
2
T
R
.
.
24 Nm (2.4 m
•
kg, 17 ft
•
Ib)
T
R
.
.
90 Nm (9.0 m
•
kg, 65 ft
•
Ib)
E
E
E
E
E
