CLUTCH
5-49

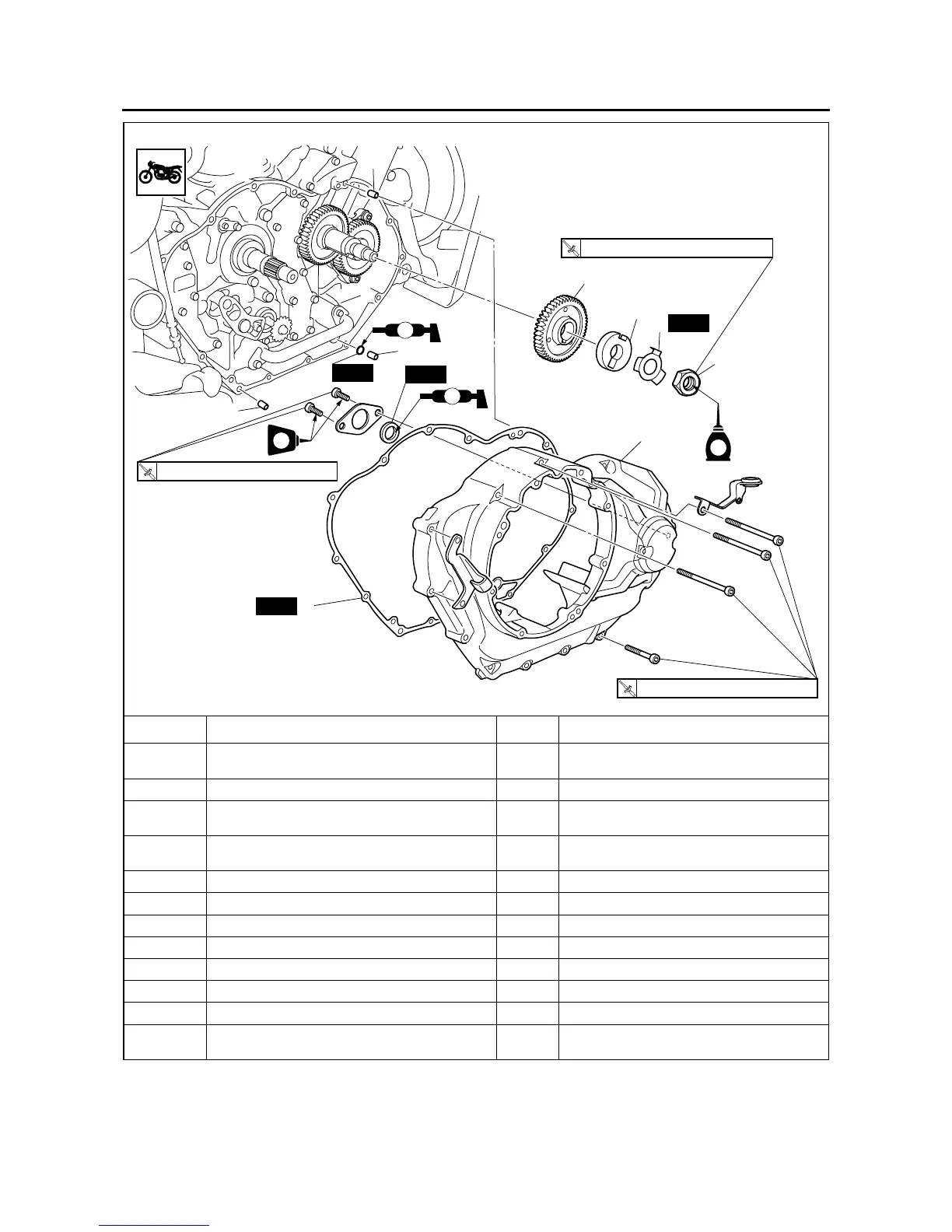

Removing the primary drive gear
Order Job/Parts to remove Q’ty Remarks
Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Rear brake master cylinder Refer to “REAR BRAKE” on page 4-32.
Right footrest assembly/Rear brake light
switch/Horn/Down tube
Refer to “ENGINE REMOVAL” on page 5-1.
Generator cover
Refer to “GENERATOR AND STARTER
CLUTCH” on page 5-39.
1 Primary drive gear cover 1
2 Primary drive gear cover gasket 1
3 Dowel pin 3
4 Primary drive gear nut 1
5 Lock washer 1
6 Spacer 1
7 Primary drive gear 1
For installation, reverse the removal proce-
dure.
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
100 Nm (10.0 m
•
kg, 72 ft
•
lb)
New
New
New
E
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
LT
New
LS
7
5
2
(12)
1
4
3
3
6
LS
3
To Next Page
