ENGINE SPECIFICATIONS
2-4
Timing chain
Model/number of links 98XRH2010–132M/132
Tensioning system Automatic
Rocker arm/rocker arm shaft
Rocker arm inside diameter 12.000–12.018 mm (0.4724–0.4731 in)
Rocker arm shaft outside diameter 11.976–11.991 mm (0.4715–0.4721 in)
Rocker-arm-to-rocker-arm-shaft clearance 0.009–0.042 mm (0.0004–0.0017 in)
Limit 0.095 mm (0.0037 in)
Valve, valve seat, valve guide
Valve clearance (cold)
Intake 0.09–0.13 mm (0.0035–0.0051 in)
Exhaust 0.14–0.18 mm (0.0055–0.0071 in)

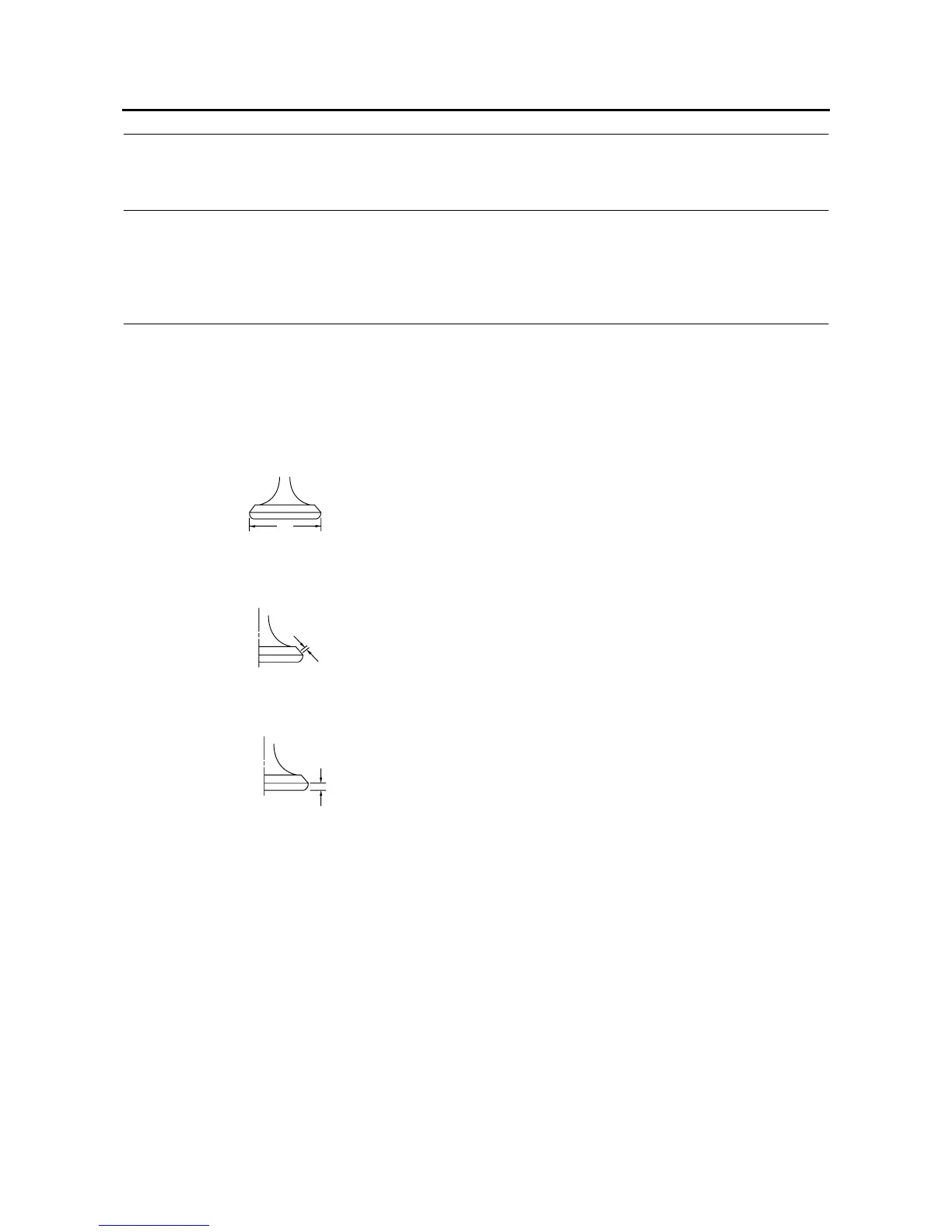

Valve dimensions
Valve head diameter A (intake) 35.90–36.10 mm (1.4134–1.4213 in)
Valve head diameter A (exhaust) 31.90–32.10 mm (1.2559–1.2638 in)
Valve seat width C (intake) 1.00–1.20 mm (0.0394–0.0472 in)
Valve seat width C (exhaust) 1.00–1.20 mm (0.0394–0.0472 in)
Valve margin thickness D (intake) 1.15–1.45 mm (0.0453–0.0571 in)
Valve margin thickness D (exhaust) 1.15–1.45 mm (0.0453–0.0571 in)
Valve stem diameter (intake) 5.975–5.990 mm (0.2352–0.2358 in)
Limit 5.945 mm (0.2341 in)
Valve stem diameter (exhaust) 5.960–5.975 mm (0.2346–0.2352 in)
Limit 5.930 mm (0.2335 in)
Valve guide inside diameter (intake) 6.000–6.012 mm (0.2362–0.2367 in)
Limit 6.050 mm (0.2382 in)
Valve guide inside diameter (exhaust) 6.000–6.012 mm (0.2362–0.2367 in)
Limit 6.050 mm (0.2382 in)
Valve-stem-to-valve-guide clearance (intake) 0.010–0.037 mm (0.0004–0.0015 in)
Limit 0.080 mm (0.0032 in)
Valve-stem-to-valve-guide clearance (exhaust) 0.025–0.052 mm (0.0010–0.0020 in)
Limit 0.100 mm (0.0039 in)
A
C
D
