THROTTLE BODIES
7-6
EAS26970
THROTTLE BODIES

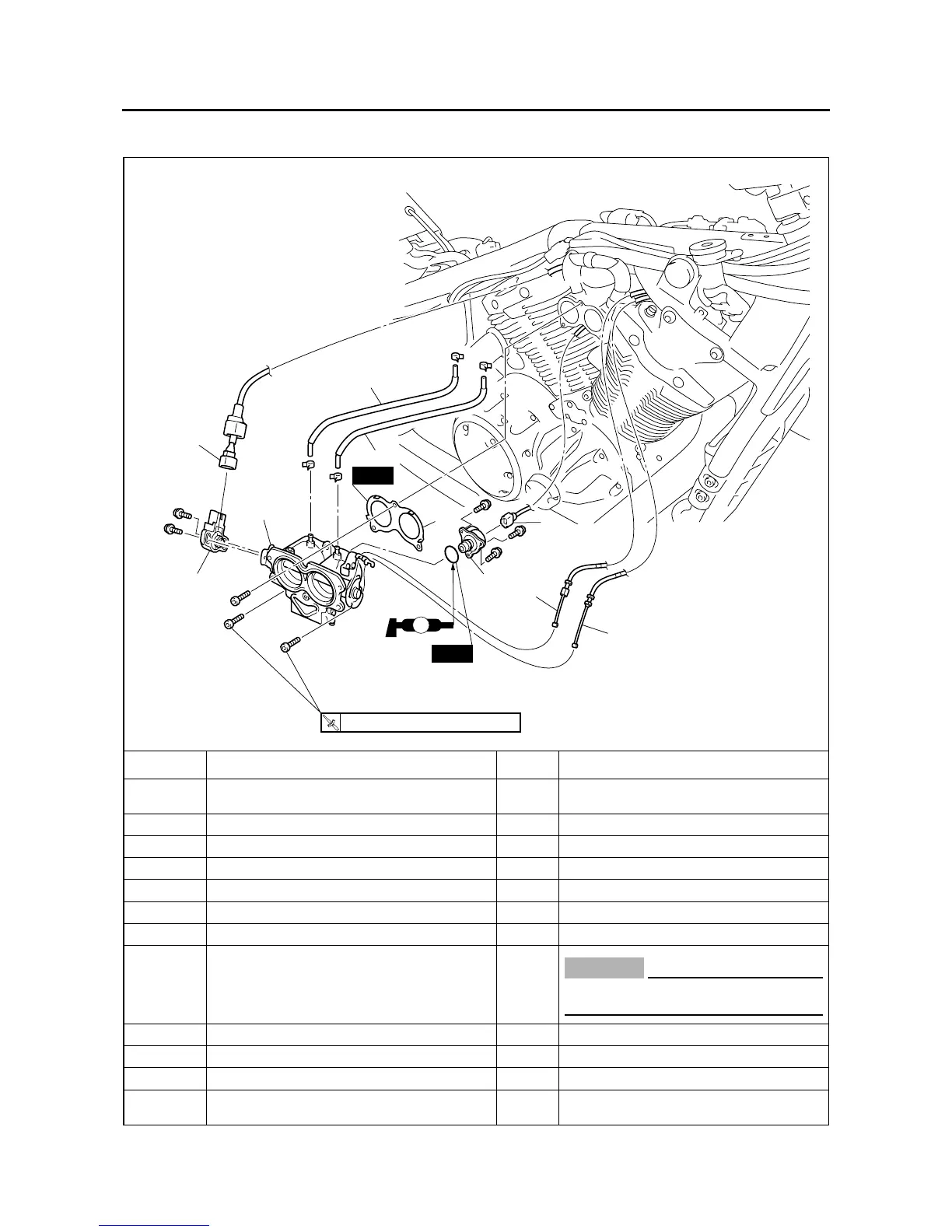

Removing the throttle body and ISC (idle speed control) unit
Order Job/Parts to remove Q’ty Remarks
Rider seat/Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Throttle position sensor coupler 1 Disconnect.
2 Front cylinder intake air pressure sensor hose 1
3 Rear cylinder intake air pressure sensor hose 1
4 Throttle cable 2 Disconnect.
5 ISC (idle speed control) unit coupler 1 Disconnect.
6 Throttle body 1
CAUTION:
ECA3D81003
The throttle body should not be disas-
sembled.
7Gasket 1
8 ISC (idle speed control) unit 1
9 Throttle position sensor 1
For installation, reverse the removal proce-
dure.
3
2
7
8
5
4
1
6
9
4
New
New
LS
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
To Next Page
