5.2 Servomotor Main Circuit Wire Size and Connectors
5-37
5

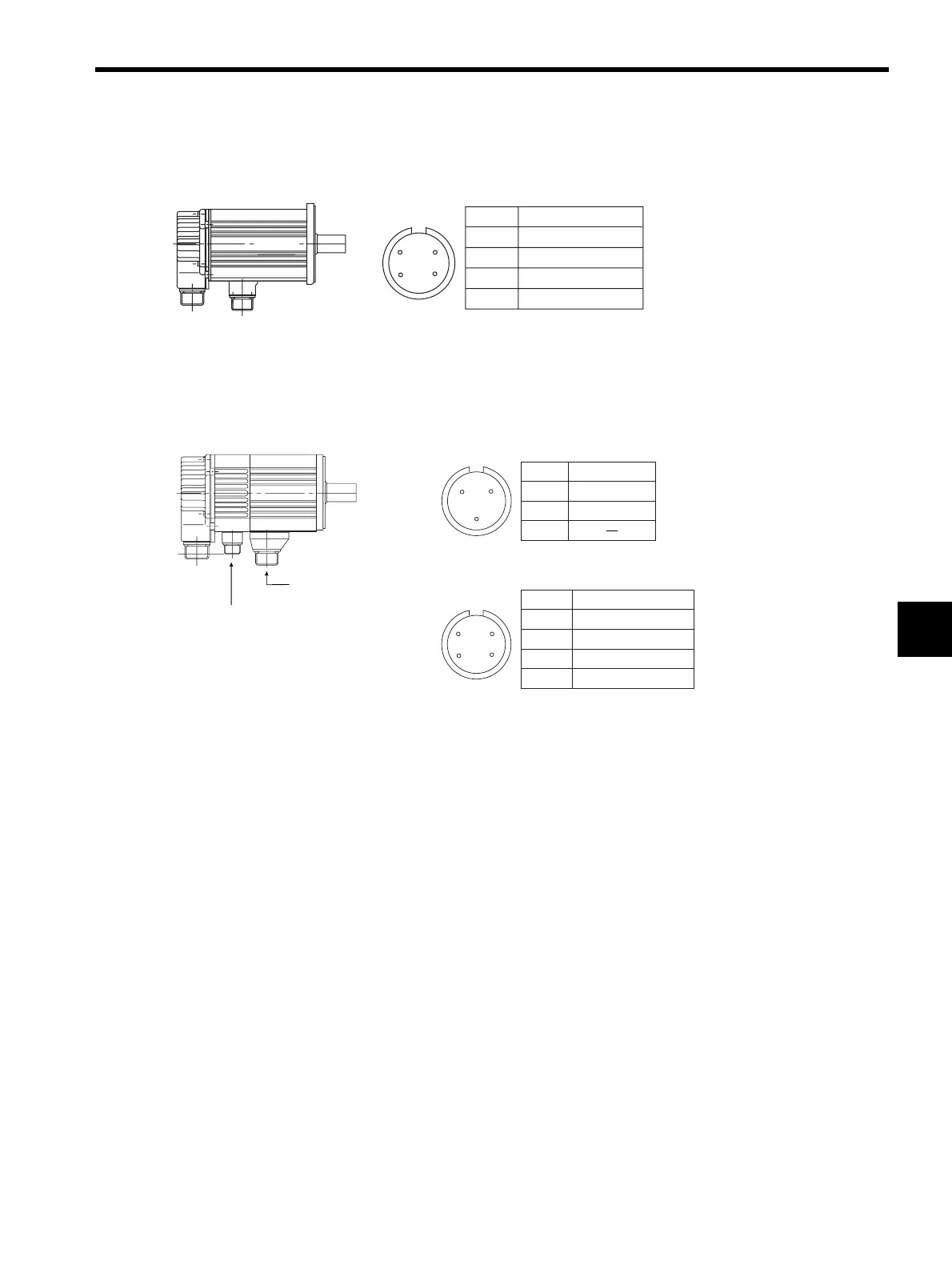

(3) Servomotor Main Circuit Connector Pin Arrangement
(a) Without Brakes
(b) With Brakes
Servomotor-end
connector
A
B
C
D
Phase U
Phase V
Phase W
FG (Frame Ground)
D
BC
A
Pin No. Signal
Three-phase 400 V 1.0 to 4.0 kW
Servomotor-end
connector
Brake-end connector
Brake Connector Pin Arrangement
B
C
A
Servomotor Connector Pin Arrangement
A
B
C
D
Phase U
Phase V
Phase W
FG (Frame Ground)
D
BC
A
Pin No. Signal
A *
B *
C
Brake terminal
Brake terminal
Pin No. Signal
* No polarity
