Zebra ZT600 Series User Manual

Printer Configuration and Adjustment
183

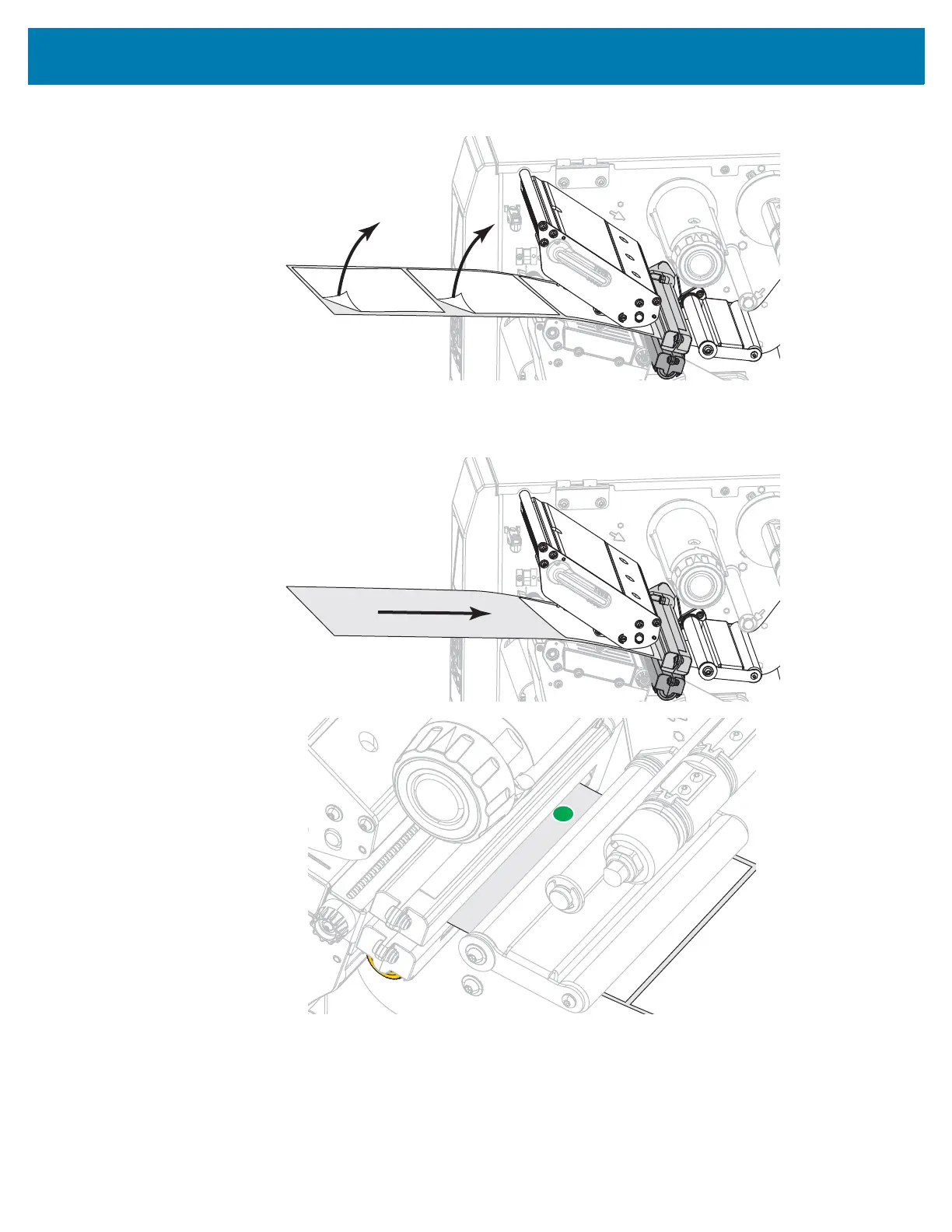

4. Remove the exposed labels so that only the liner remains.
5. Pull the media into the printer so that only the backing is over the green light on the lower part of the
media sensor.
6. Remove the ribbon (if used).

Zebra ZT600 Series Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	14 ips (356 mm/s) for 203 dpi, 12 ips (305 mm/s) for 300 dpi
Media Sensors	Reflective and Transmissive
Communication	USB, Serial, Ethernet, Bluetooth
Memory	512 MB Flash
Operating Temperature	5°C to 40°C
