ABB IRB 1660 - Page 326

InformationAction
xx1500003257

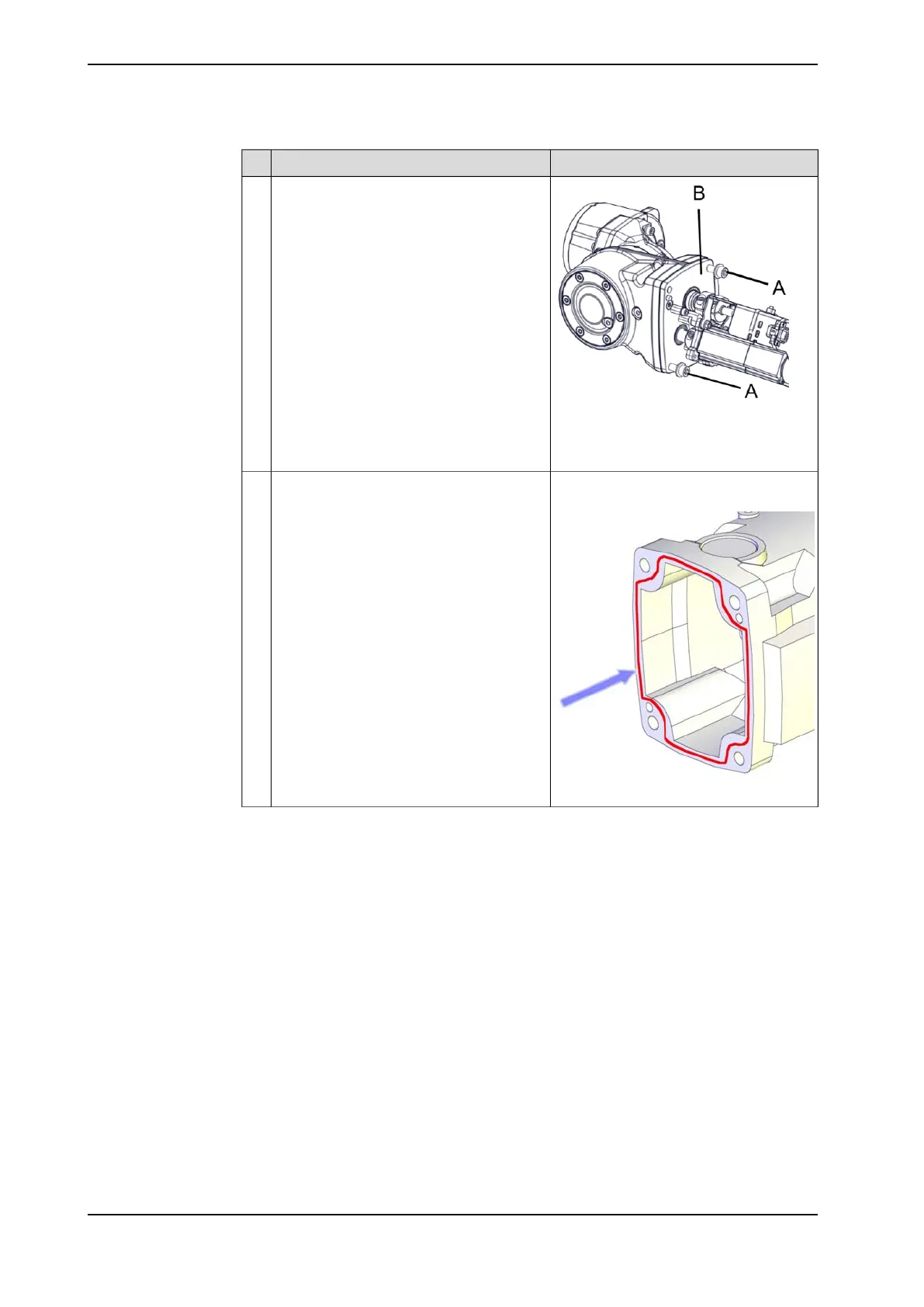

Remove the two short screws used to tem-
porarily secure the cover.
8
• A: Short screws (2 pcs)
• B: Cover
The locking liquid is specified in Required
equipment on page 319.
xx1200000063
Apply locking liquid to the assembly surface
on the upper arm tube.
9
Continues on next page
326 Product manual - IRB 1600/1660
3HAC026660-001 Revision: W
© Copyright 2006-2018 ABB. All rights reserved.
4 Repair
4.6.12 Replacement of motor, axis 6, IRB 1660ID
Continued
