4.4.7 Replacing the damper, axis 2

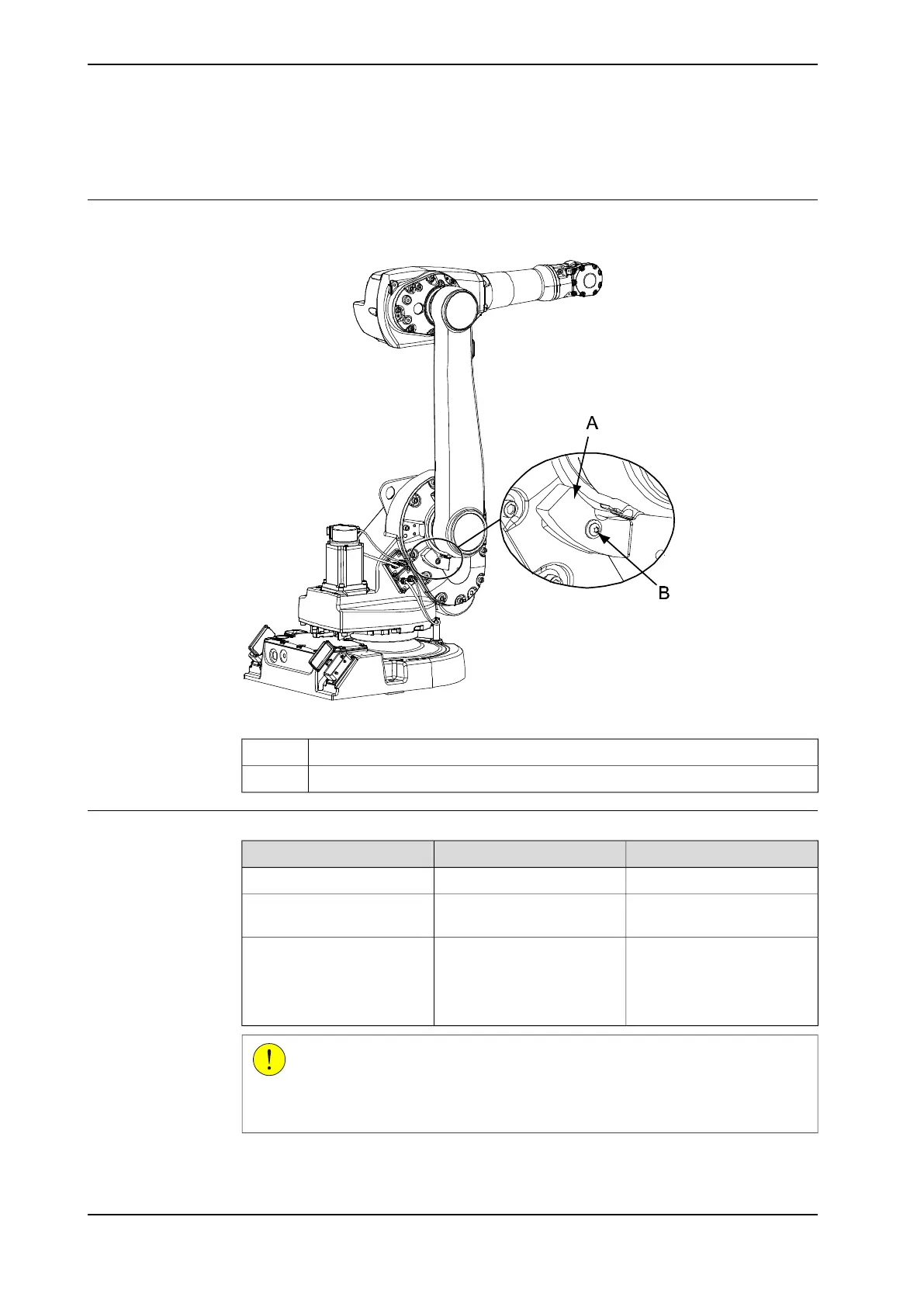

Location of damper, axis 2
The damper, axis 2, is located as shown in the figure.
xx0400001217
Damper, axis 2A
Attachment screw and washerB
Required equipment
NoteArt. no.Equipment, etc.
3HAC022013-001Damper, axis 2
Content is defined in section
Standard tools on page 383.
-Standard toolkit
These procedures include
references to the tools re-
quired.
Other tools and procedures
may be required. See refer-
ences to these procedures in
the step-by-step instructions
below.
CAUTION
Always cut the paint with a knife and grind the paint edge when disassembling
parts. See Cut the paint or surface on the robot before replacing parts on page 159.
