ABOV Semiconductor Co., Ltd.
FORCE Drive ALL Channel with A-ch mode
If FORCA bit sets to ‘1’, it is possible to enable or disable all PWM output pins through PWM outputs which occur from
A-ch duty counter. It is noted that the inversion outputs of A, B, C channel have the same A-ch output waveform.
According to POLAA/BB/CC, it is able to control the inversion of outputs.

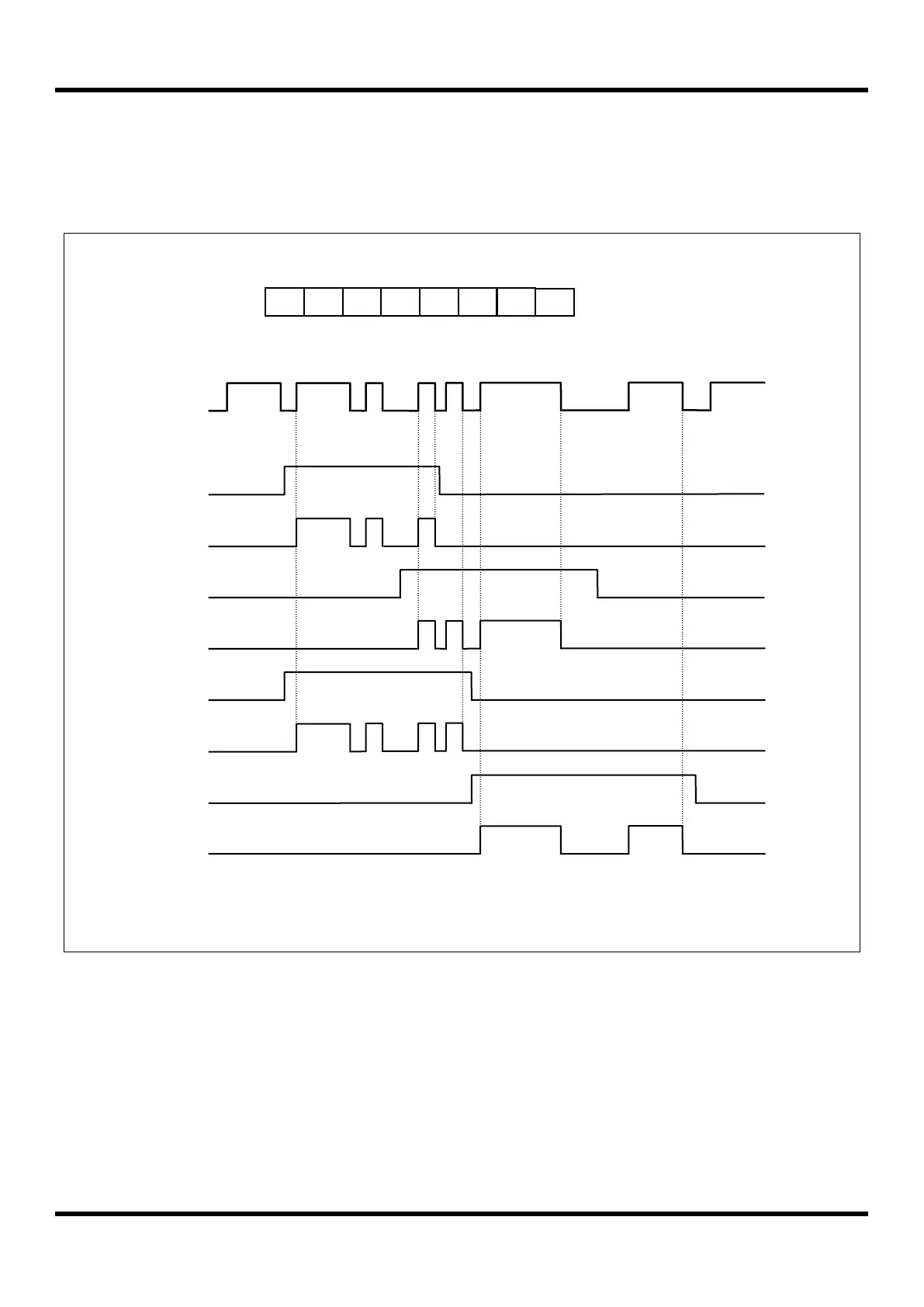

Figure 11.35 Example of Force Drive All Channel with A-ch
ADDRESS : 1054H (ESFR)
INITIAL VALUE : 0-00_0000B
※C-ch operation is the same with channel A and B waveform
