6240B DC Voltage Current Source/Monitor Operation Manual
5.1.3 Preventing Oscillation
5-5
5.1.3.2 Preventing DUT Oscillation
The DUT itself may oscillate due to the stray capacitance of cables and a test fixture. Particularly a high
h
FE transistor or a high gm FET has a higher probability of oscillation.
Take the following measures to prevent oscillation.
Attach a ferrite bead near the DUT as in Figure 5-4
For the transistor it is effective to attach the ferrite bead at the base, and for the FET at the gate.
To minimize a current leak, be careful that the ferrite bead does not touch other terminals, the DUT
case, lead wires, or other ferrite beads.

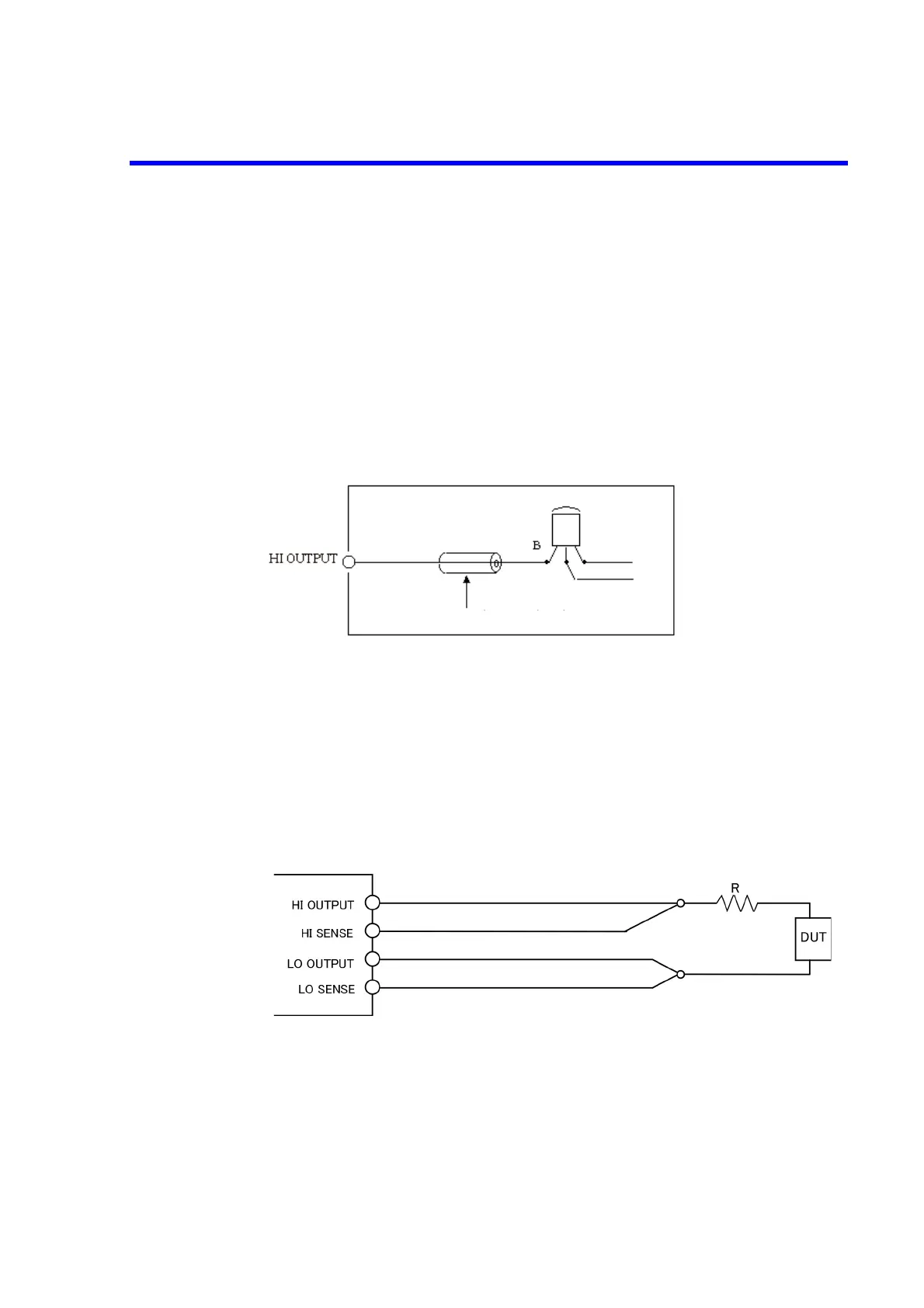

Figure 5-4 Preventing DUT Oscillation
For a high frequency device such as a GaAS FET, take the following measures.
Separate the ground line of the gate power supply from that of the drain power supply.
Insert ferrite beads and by-pass capacitors both at the gate and the drain so that high frequency
signals do not enter the power supplies.
Insert matching resistors both at the gate and the drain or make the pattern length /4 for match-
ing.
Figure 5-5 Preventing 6240B Oscillation
Ferrite bead
Shield box
(Note) Insert a resistor with a value in a tolerable range.
6240B
