6240B DC Voltage Current Source/Monitor Operation Manual
2.2.8 Random Sweep Source
2-47
2.2.8 Random Sweep Source
This section describes an example of random sweep from 1 V to 3 V as shown below.
Turning off measurement enables high-speed sweep.

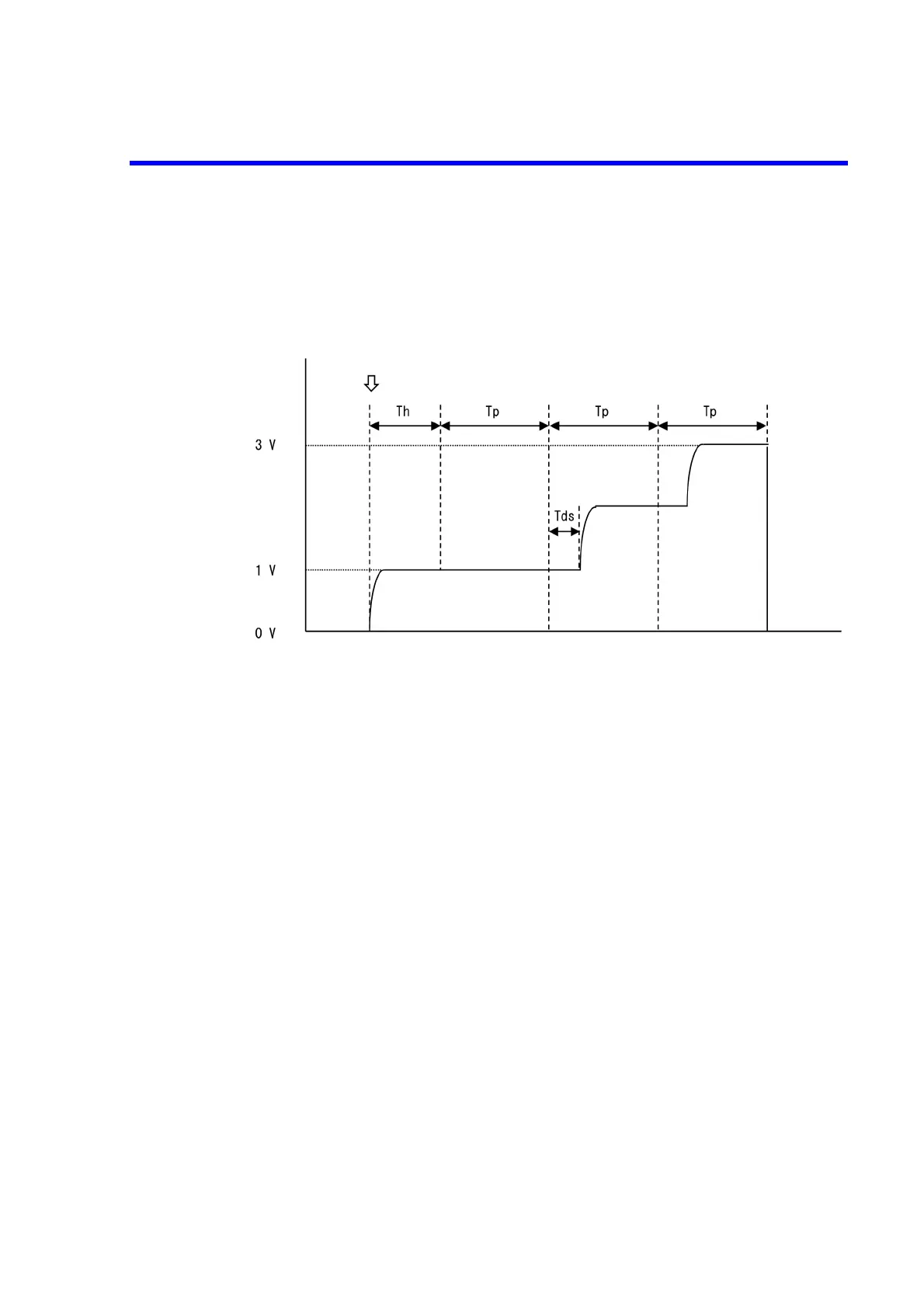

Figure 2-18 Random Sweep Source
Source mode: DC sweep
Sweep type: Random sweep
Bias value: 0 V (default)
Start address: 0
Stop address: 2
Sweep range: Fixed (3 V range)
Random memory: 1 V, 2 V, 3 V in order from address 0
Measurement: OFF
Hold time (Th): 1 ms
Source delay time (Tds): 0.03 ms (default)
Measurement delay time (Td): 0.05 ms
Period time (Tp): 2 ms
Current limit value: 1 A (default)
Press TRIG
Value at address 2
Value at address 0
Bias value
