5.2.9 Source and Measurement Timing
5-47
5.2.9.1 Restrictions on Time Parameters
The time parameters have restrictions for setting in relation to the others. If the time parameters are set to
exceed any of these restrictions, an error message is displayed when the output is set to Operate or when
sweep starts, and measurement does not start.
1. Restrictions
• Source delay time (Tds) + 300 s < period time (Tp)
• Measurement delay time (Td) + 300  < period time (Tp)
• Source delay time (Tds)  Measurement delay time (Td)

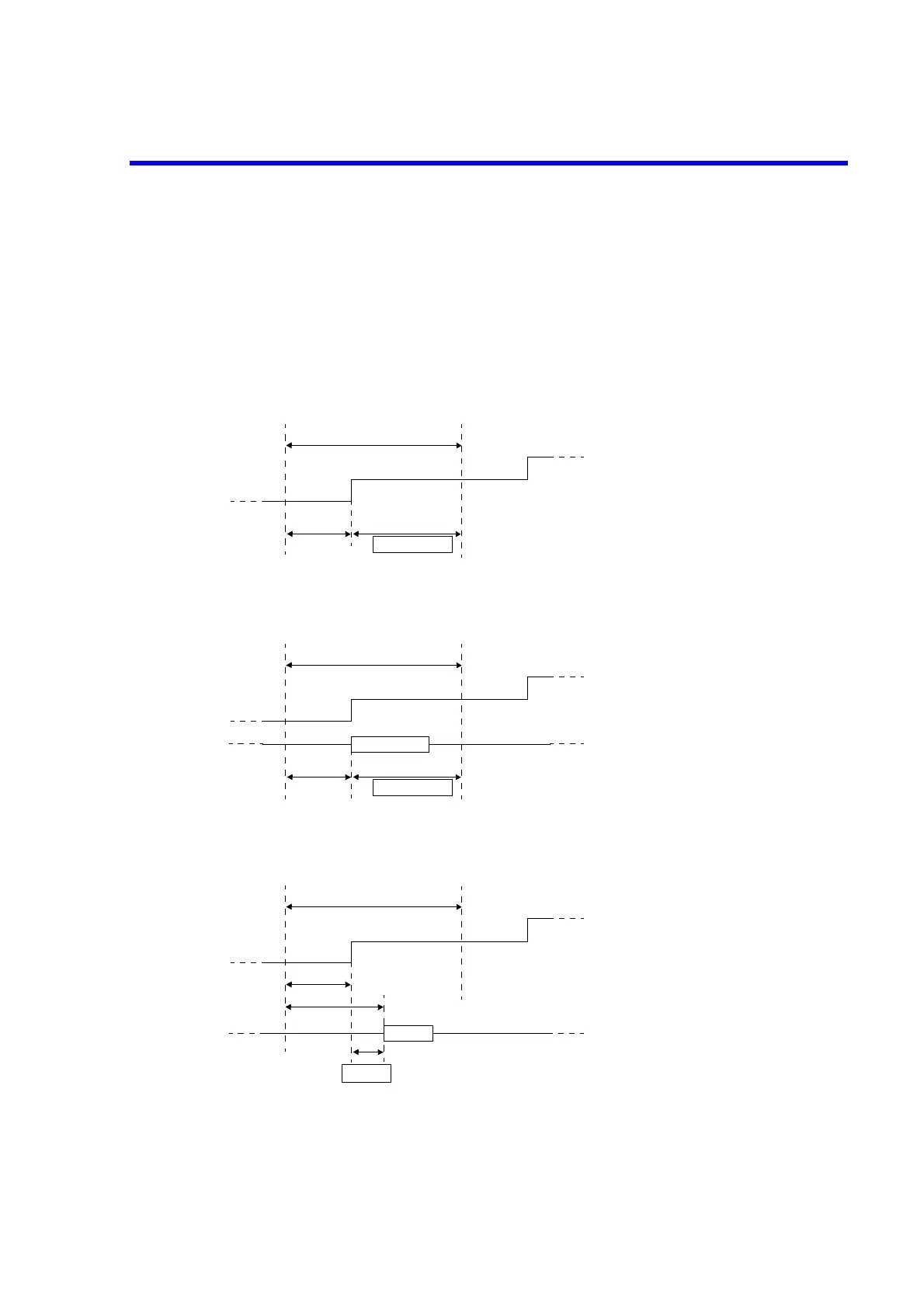

Tp
Tds
300 s or more
Tp
Td
300s or more
Measurement
Tp
Tds
Td
0 t
Measurement
