5.2 Functions in Detail
5-8
5.2 Functions in Detail
5.2.1 Operations in DC Source Mode
The following table shows operations in the DC source mode.

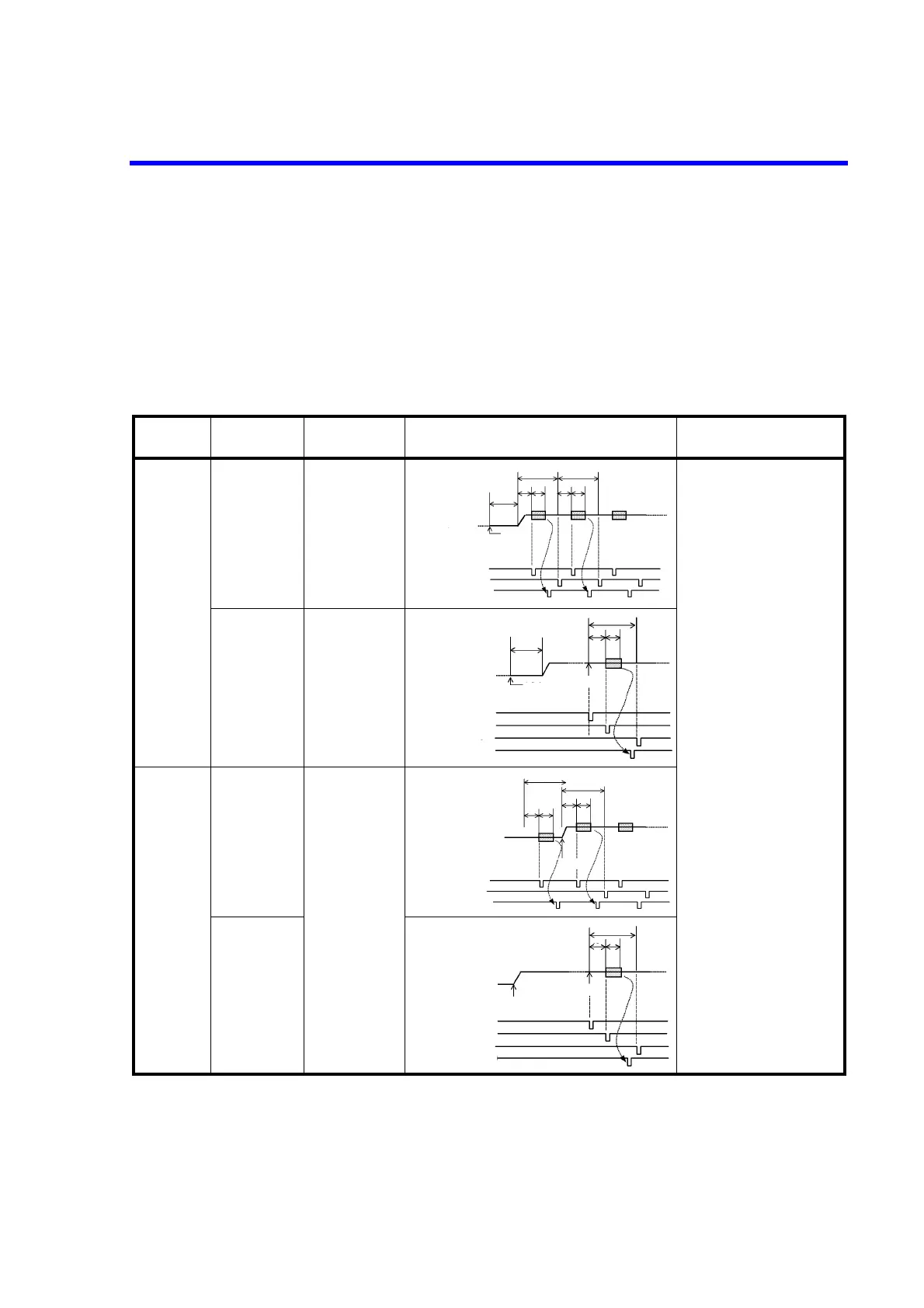

Table 5-2 Operations in DC Source Mode (1/2)
Operational
condition
Trigger mode Description Operation Remarks
Operate
ON
AUTO
Executes continu-
ous measurement
with the setting
period time Tp.
Tp: Period time
Td: Measurement delay time
Tm: Measurement time
(Integration time +
Measurement data
processing time)
Tcn: Operate processing time
HOLD
Executes mea-
surement after
trigger input.
Changing the
source value
AUTO
Source value
changing does not
induce range
changing.
HOLD
Standby
COMPLETE OUT [FRONT]
COMPLETE OUT [END]
COMPLETE OUT [HI/GO/LO]
Operate
Tcn
Tp
Td
Tp
Tm Td Tm
Tcn
Td Tm
Standby
Operate
Measurement
trigger
COMPLETE OUT [FRONT]
COMPLETE OUT [END]
COMPLETE OUT [HI/GO/LO]
TRIGGER IN
Tp
Tp
Changes the
source value
COMPLETE OUT [FRONT]
COMPLETE OUT [END]
COMPLETE OUT [HI/GO/LO]
Tp
Td Tm
Td
Tm
Previous value
Td
Tm
Previous value
Changes the
source value
TRIGGER IN
COMPLETE OUT [END]
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [FRONT]
Tp
Measurement
trigger
