2.2.6 Pulse Measurement
2-38
13. Press MON twice to switch to voltage measurement. (See Point B in Figure
2-15.)
2.2.6 Pulse Measurement
This section describes an example operation which uses the pulse source mode.
In this example, voltage source current measurement (VSIM) is performed as changing the measurement
points A and B in accordance with the following figure:

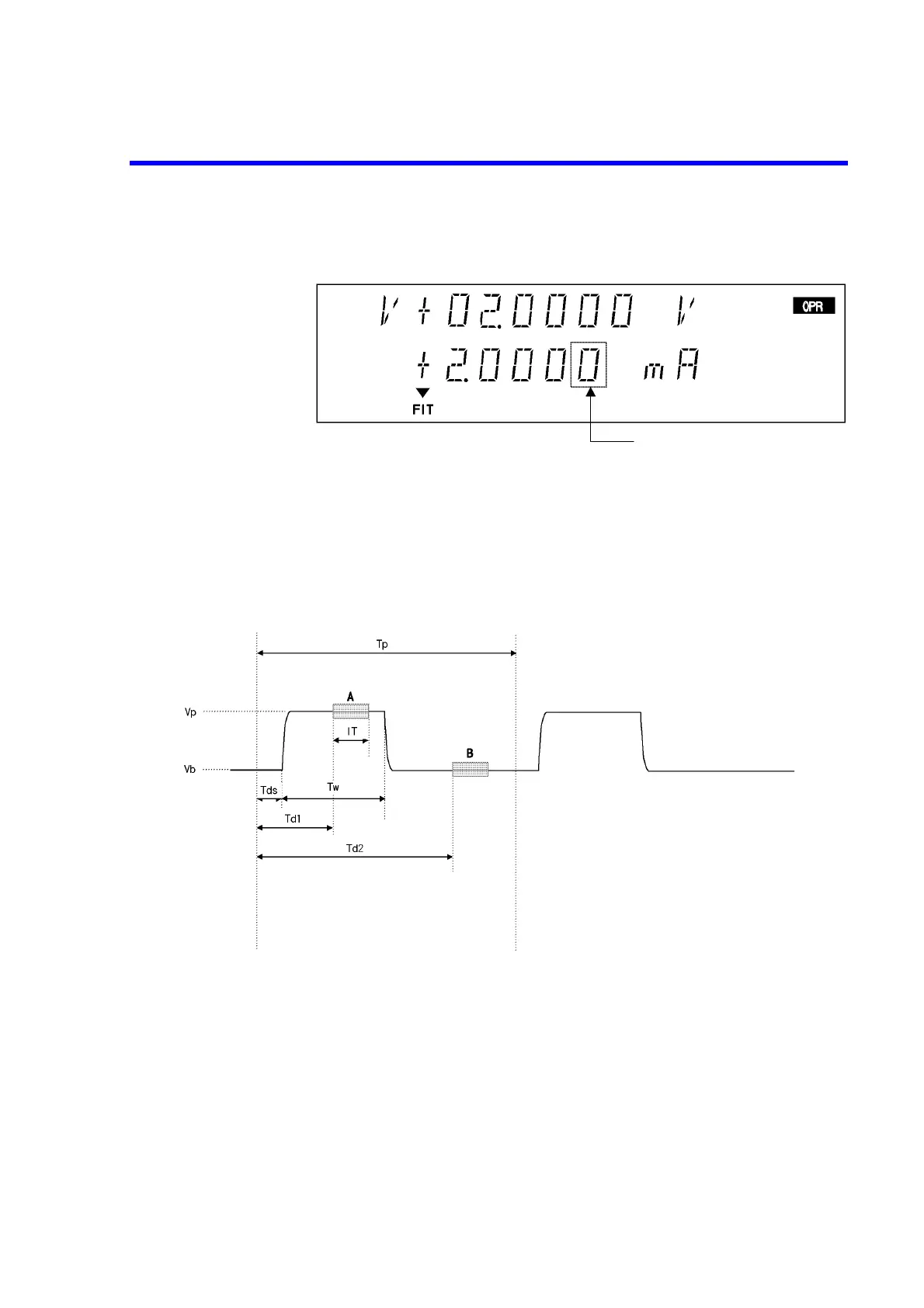

Figure 2-16 Pulse Measurement
Cursor (blinking)
Tds: Source delay time ; 1 ms
Tw: Pulse width ; 50 ms
Td1: Measurement delay time (at A) ; 3 ms
Td2: Measurement delay time (at B) ; 60 ms
Tp: Period time ; 130 ms
IT: Integration time ; 1 PLC (default)
Vp: Pulse value ; 2 V, 2.5 V
Vb: Base value ; 1 V, 0.5 V
