5.2.6 Measurement Function
5-39
5.2.6.3 Measurement Delay Time and Measurement Value

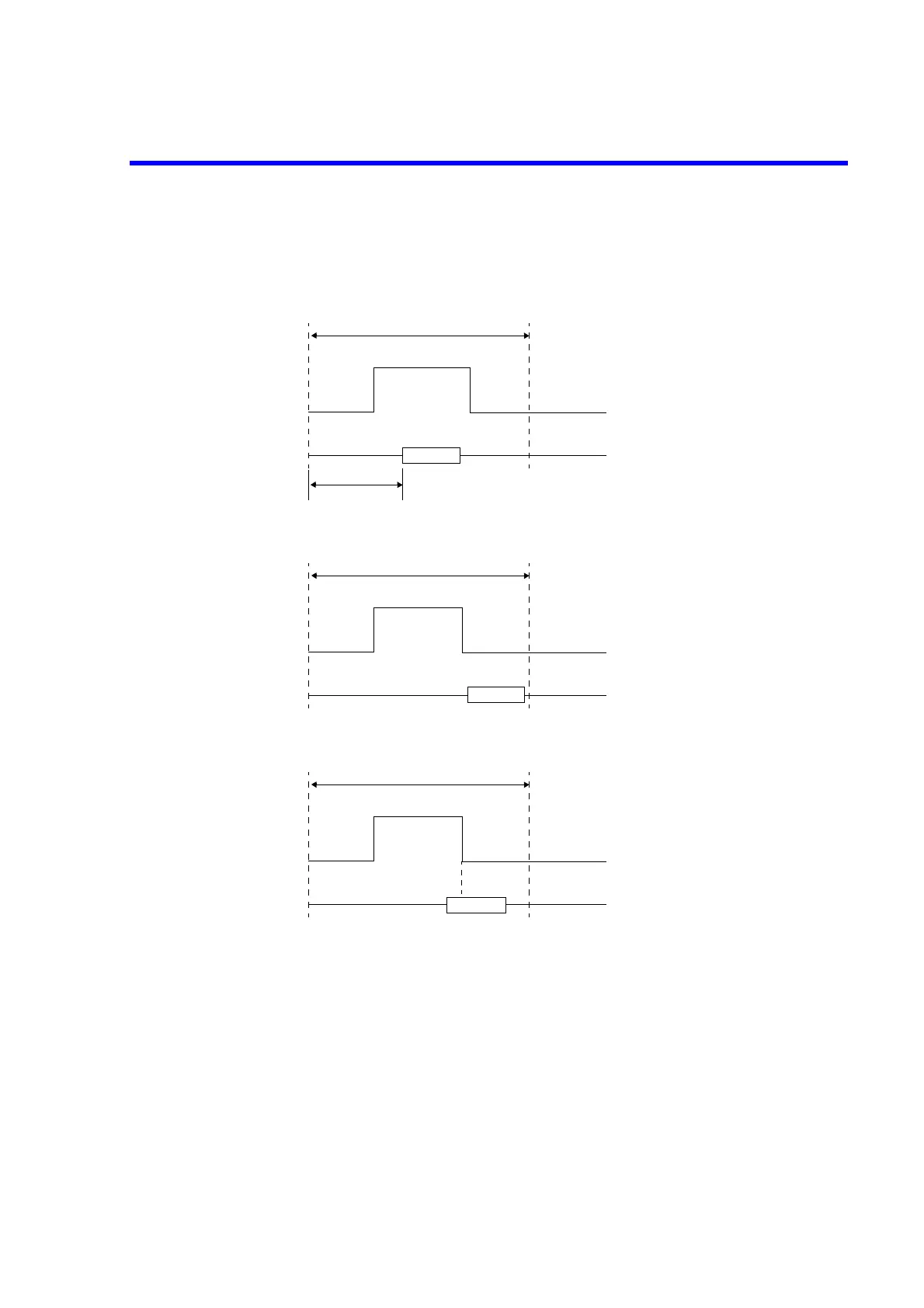

1. Measurement at the pulse value timing
2. Measurement at the base timing
3. Measuring at the timing overlapping with the pulse value and the base value
The measurement value changes depending on the time ratio of the pulse value to the base value in
the measured time.
Pulse source
Tp
Base value
Pulse value
Base value
Td
Measurement
Tp
Base value
Pulse value
Base value
Measurement
Tp
Base value
Pulse value
Base value
Measurement
