6240B DC Voltage Current Source/Monitor Operation Manual
2.1.2 Screen Display (Annotations)
2-7
2.1.2 Screen Display (Annotations)
This section describes the screen display (annotations).

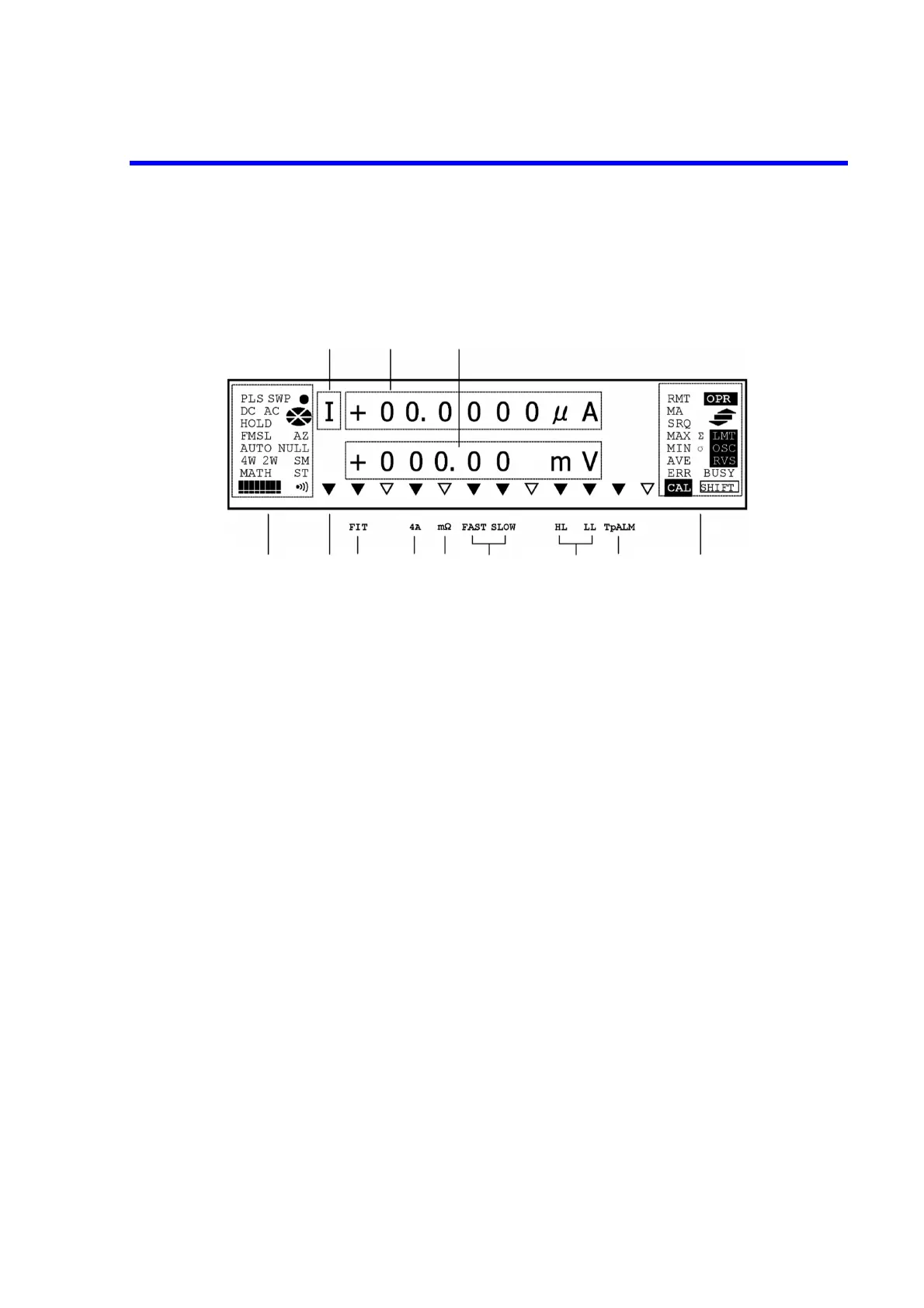

Figure 2-11 Screen Display (Annotations)
1. Source value Displays a voltage source (VS) or current source (IS) value with
a unit.
2. Measurement value In Operate:
Displays a measurement value.
In Standby or Suspend:
Displays the suspend voltage. Displays the output impedance
in Suspend status.
HZ: High impedance status
LZ: Low impedance status
(For more information, refer to Section 5.2, "Functions in
Detail.")
3. Measurement function Displays the measurement function.
I: Current measurement (IM)
V: Voltage measurement (VM)
R: Resistance measurement (RM)
_: Measurement OFF
2
1
3
481195761012
