5.2.3 Operations in Sweep Source Mode
5-21
5.2.3.6 RTB Function
RTB setting switches the source value at sweep stop.

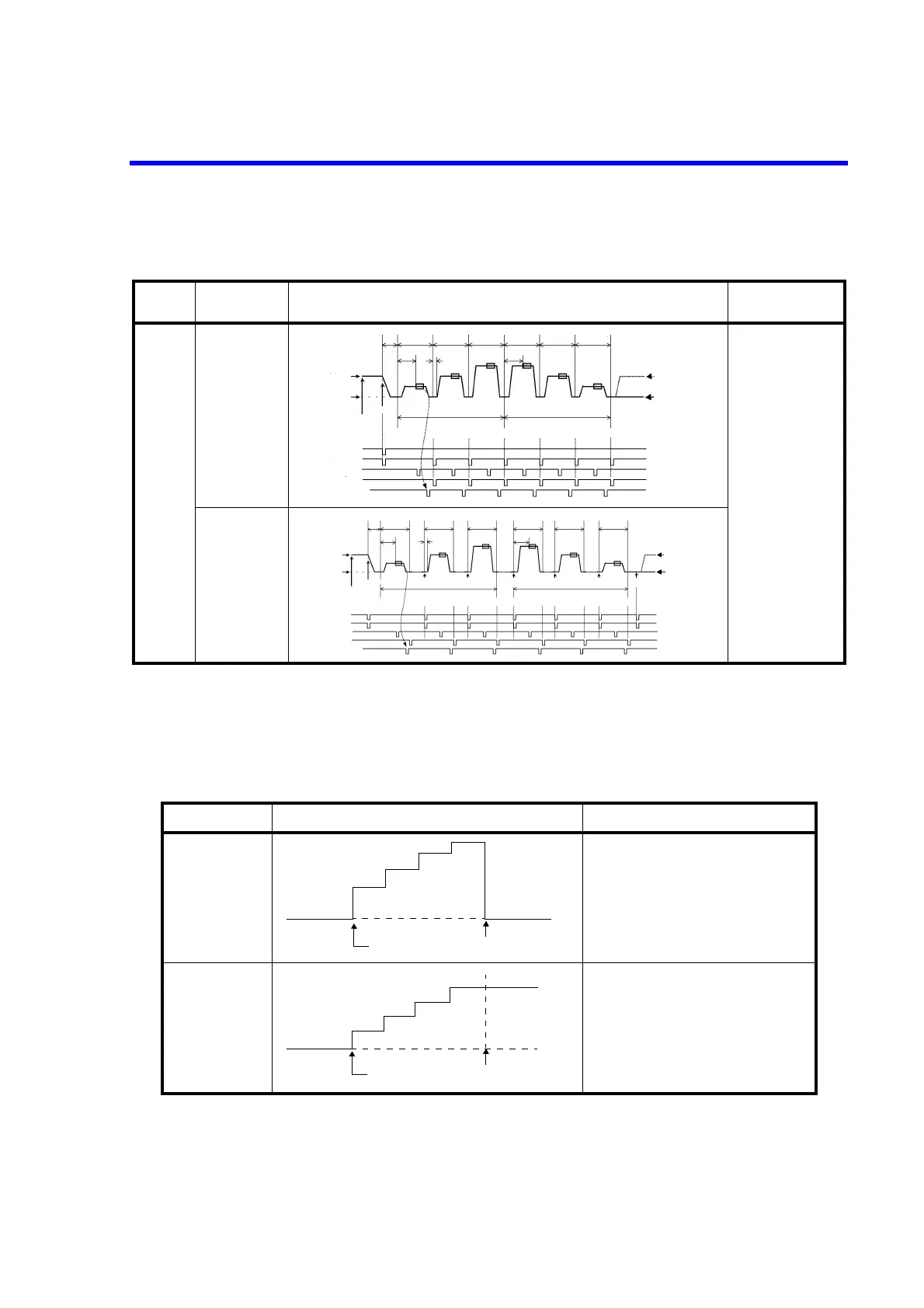

Table 5-8 Reverse Operations in Pulse Sweep Mode
Operational
condition
Trigger mode Operation Remarks
Pulse
sweep
AUTO
Th: Hold time
Tp: Period time
Td: Measurement
delay time
Tds:Source delay
time
Tm: Measurement
time
(Integration time
+ Measurement
data processing
time)
Tcn: Operate
processing time
Trc: Range change
processing time
HOLD
RTB Waveform Operation
ON
Returns to the bias value when
sweep stops.
OFF
Stays at the stop value when sweep
stops.
Bias value
Th
Tp
Tp
Tp Tp
Tp Tp
Td
Tds
Td
Base value
Operate
Start trigger
Forward
Reverse
RTB ON
(returns to the bias value)
RTB OFF
(stays at the present value)
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [FRONT]
COMPLETE OUT [END]
SYNC OUT
TRIGGER IN
Bias value
Th
Tp
Tp
Tp Tp
Tp Tp
Td
Tds
Td
Base value
Operate
Start trigger
Measurement
trigger
Measurement
trigger
Measurement
trigger
Measurement
trigger
Measurement
trigger
Measurement
trigger
ReverseForward
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [FRONT]
COMPLETE OUT [END]
SYNC OUT
TRIGGER IN
RTB ON
(returns to the bias value)
RTB OFF
(stays at the present value)
Start
Bias value
Bias value
Sweep stop
Start
Bias value
Sweep stop
