5.2.13 Measurement Data Memory Function
5-67
5.2.13 Measurement Data Memory Function
The 6240B features a measurement data memory for storing up to 8000 measurement data items.
This section describes how data is stored in and cleared from the measurement data memory.
5.2.13.1 Memory Store
Two ways of storing the measured data are available; Normal mode and Burst mode. Select the parameters,
F) MEMORY and 1) Store Mode on the menu screen to set the Normal mode or Burst mode.

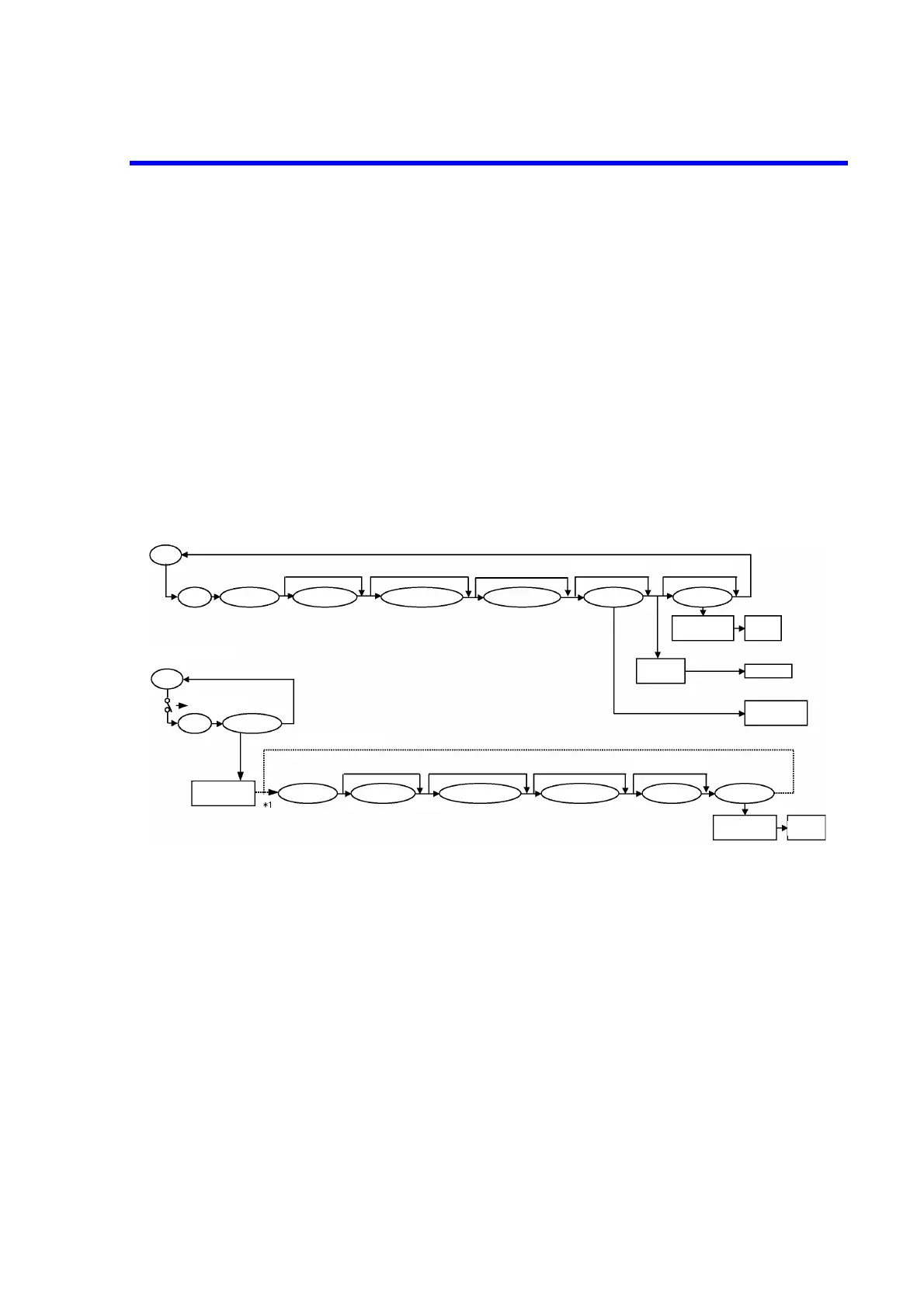

Figure 5-17 shows a conceptual diagram for storing measured data. Figure 5-18 compares the operations
in the Normal mode and the Burst mode.
Figure 5-17 Conceptual Diagram of Memory Store
Scaling calculation
Scaling calculation OFF
Scaling calculation OFF
Max/Min calculation
Max/Min calculation OFF
Max Min calculation OFF
Normal mode
Measurement task
Memory full
Trigger
Burst mode
Trigger
Comparator
calculation OFF
GRIB/USB
Output buffer
Measurement
buffer memory
Memory full
Comparator
calculation OFF
AD data buffer
True value
calculation
Measure-
ment
NULL
calculation
Comparator
calculation
Memory store
Memory store
True value
operation
NULL cal-
culation
Scaling calculation
Max Min calculation
Comparator
calculation
Memory store
Measurement
buffer memory
GRIB/USB
Complete OUT
HI/GO/LO
Data processing task
Measure-
ment
NULL OFF
NULL OFF
*1: The data processing task is executed during idle time in the measurement task
and when the measurement is stopped.
RECALL
(RN1)
RECALL
(RN1)
