5.2.9 Source and Measurement Timing
5-46
5.2.9 Source and Measurement Timing
The source and measurement timings of the 6240B differ depending on the source mode as shown in Table
5-13.
To ensure accurate measurement, consider the relevant source and measurement timings and set the
required parameters.

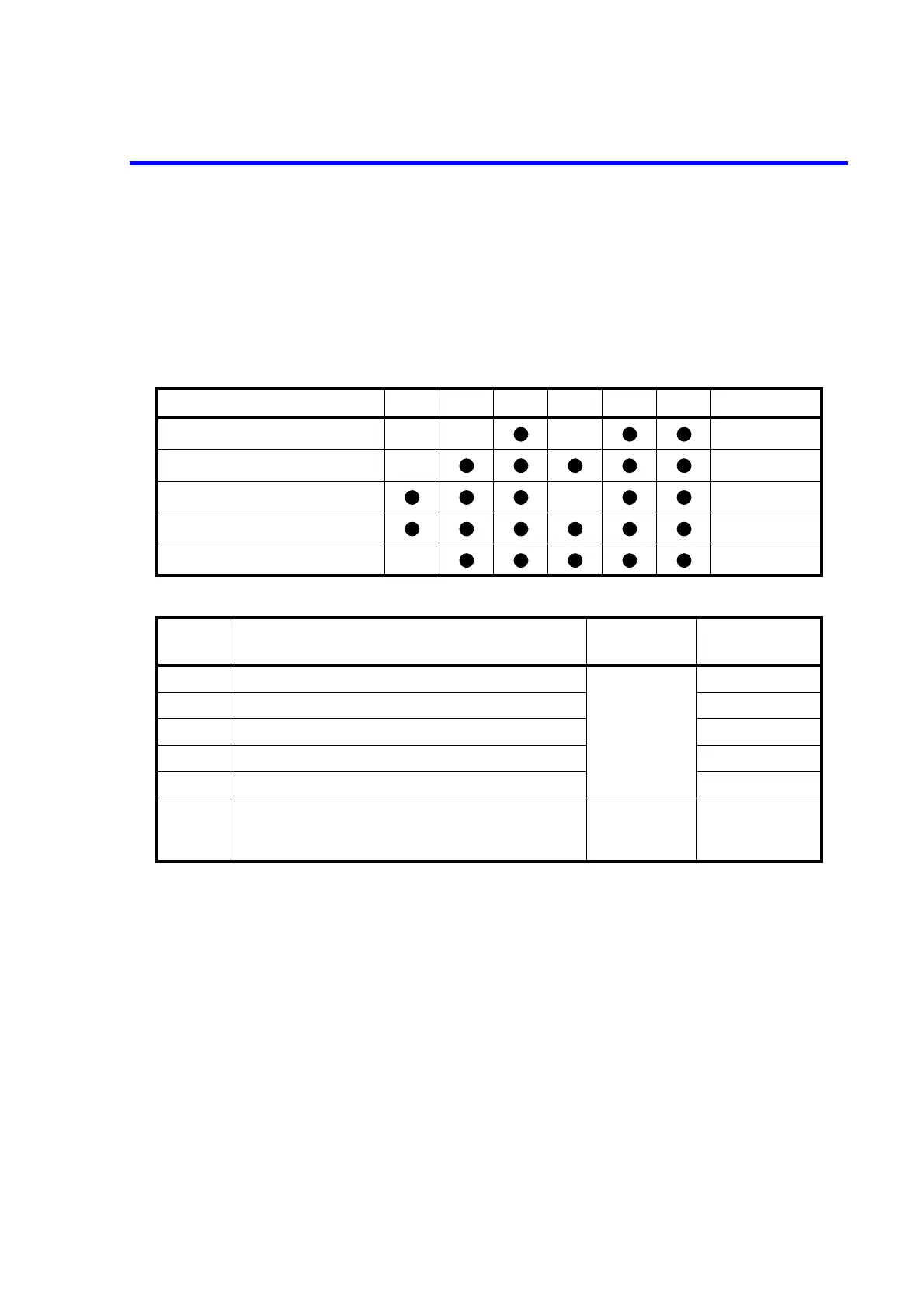

Table 5-13 Source Mode and Time Parameters to be Considered
Source mode Th Tds Td Tw Tp Tm Timing diagram
DC
Table 5-2
Pulse Table 5-3
DC Sweep Table 5-5
Pulse Sweep Table 5-6
Low-resistance measurement pulse Table 5-9
Item Description Category level
Select level
Input/Run level
Th Hold time MENU key

D) TIME
1) Hold Time
Tds Source delay time 2) Src Delay
Td Measurement delay time 3) Meas Delay
Tw Pulse width 4) Pls Width
Tp Period time 5) Period
Tm Measurement time (Integration time + Processing time) MENU key

E) MEASURE
2) Integ Time
