5.2.5 Source Function
5-27
5.2.5 Source Function
This section describes restrictions on and operations of the source function.
5.2.5.1 Source Mode, Source Function and Setting Parameters

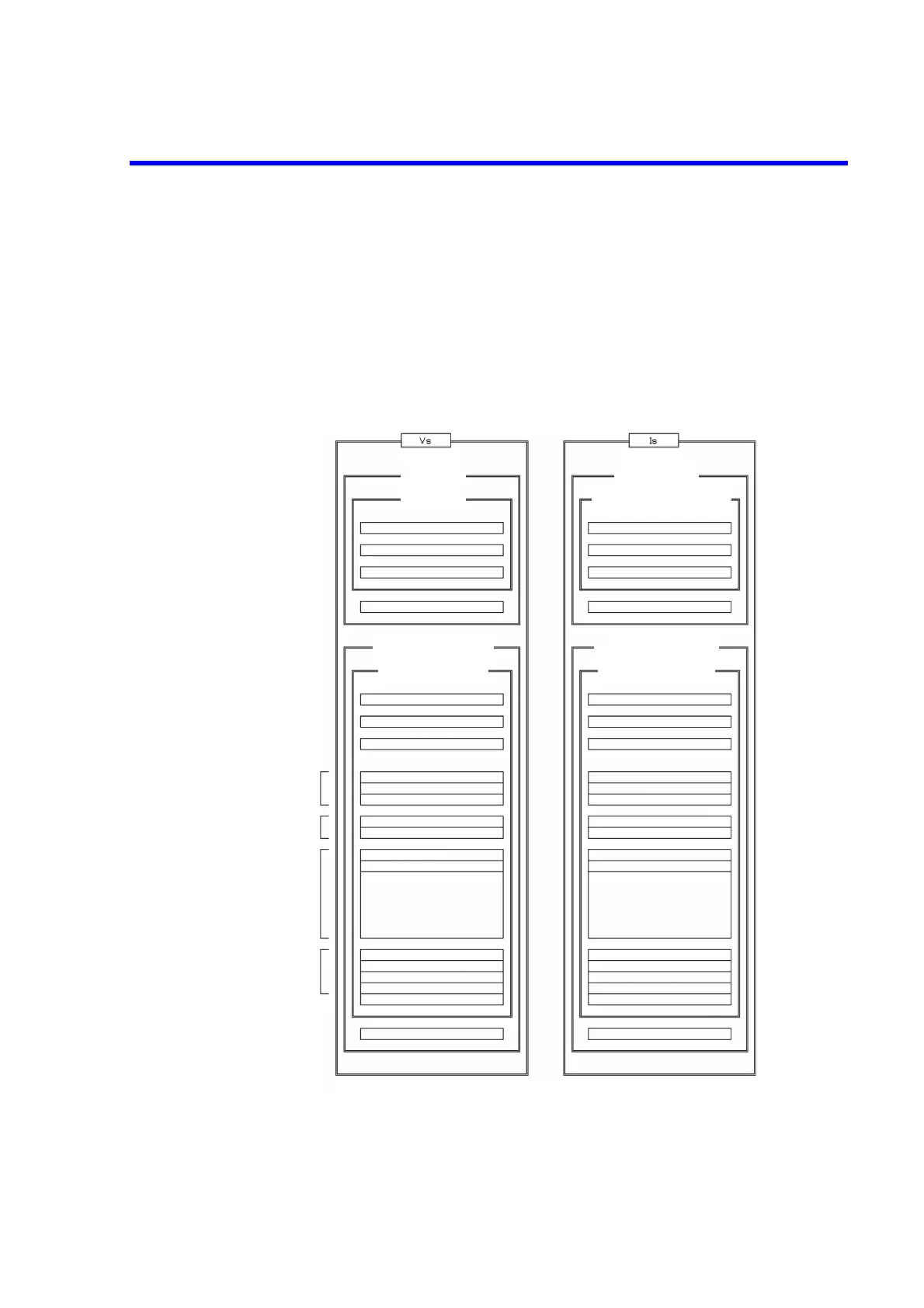

The following shows relationships between the source-related setting parameters.
1. For the DC source or pulse source mode, the Vs and Is parameters can be changed regardless of the
functions currently set.
2. For the DC sweep source or pulse sweep mode, only function parameters currently set are changeable.
Pulse source
DC source
Pulse source
DC source, low-resistance
measurement pulse source
Pulse sweep source
DC sweep source
Pulse sweep source
DC sweep source
Linear sweep
Fixed sweep
Random sweep
Voltage random
source value
(8000 data)
Current random
source value
(8000 data)
Current pulse sweep base valueVoltage pulse sweep base value
Voltage stop address
Voltage start address
Voltage sampling count
Voltage level value
Voltage step value
Voltage stop value Current stop value
Current step value
Current level value
Current sampling count
Current start address
Current stop address
Current start value
Current bias value
Voltage LO limit value (*2)
Voltage HI limit value (*2)Current HI limit value (*1)
Current LO limit value (*1)
Voltage bias value
Voltage start value
Voltage pulse base value Current pulse base value
Current source value
Voltage LO limit value (*2)
Voltage HI limit value (*2)Current HI limit value (*1)
Current LO limit value (*1)
Voltage source value
(*1) (*2): The limit values are shared by the DC, pulse, DC sweep and pulse sweep source modes.
2-slope linear sweep
Current last valueVoltage last value
Current 1st step valueVoltage 1st step value
Current first value
Voltage first value
Current middle value
Voltage middle value
Current 2nd step valueVoltage 2nd step value
