6240B DC Voltage Current Source/Monitor Operation Manual
2.2.1 Setting Source Value
2-17
2.2.1.3 Setting Source Value Using Cursor Keys/Rotary Knob (with FIT Indicator
ON)
When the FIT indicator turns ON, the range is automatically adjusted so that the source value is generated
in the optimum range.

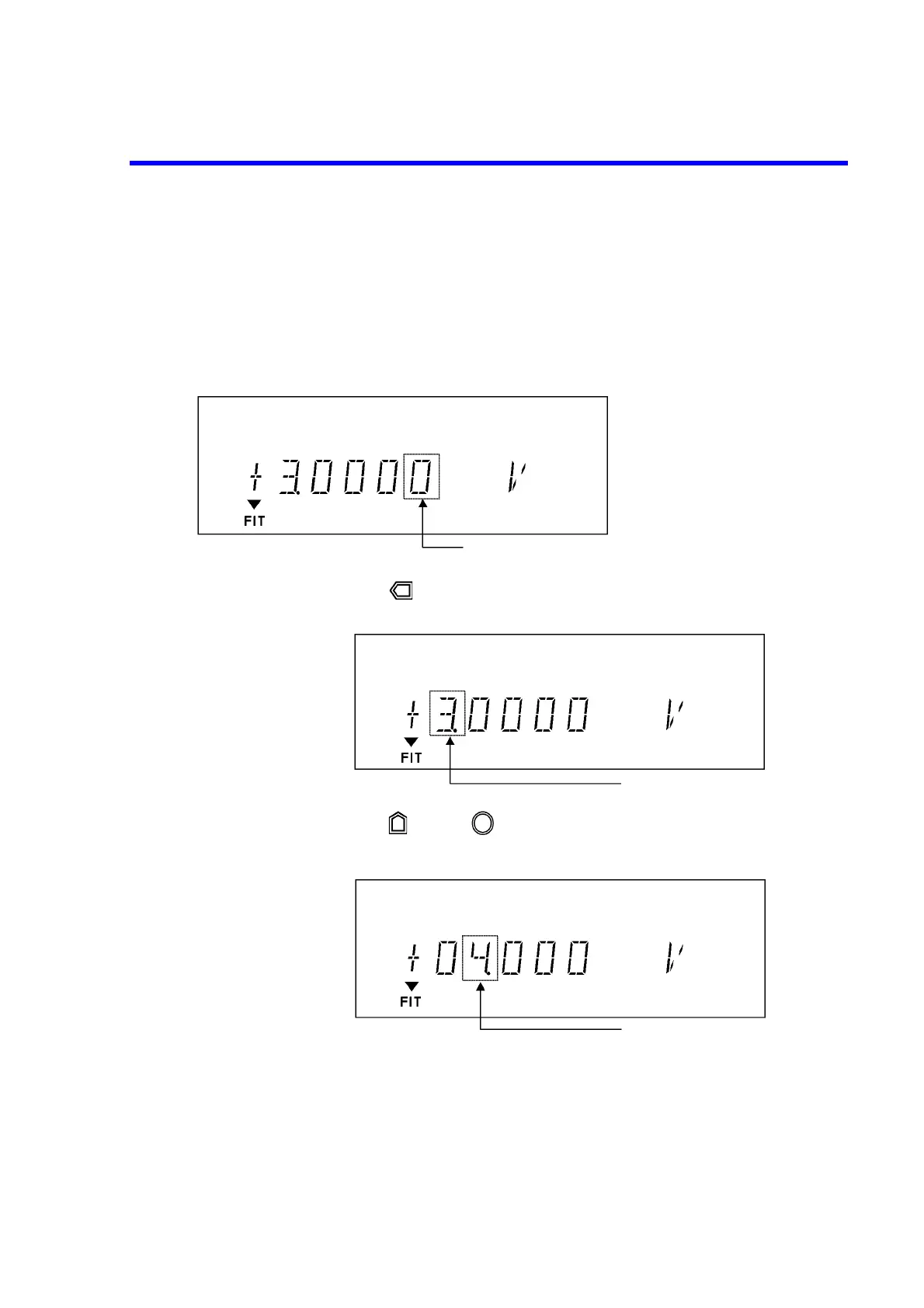

The following figures show the setting procedure.
1. Press to move the cursor to the left.
2. Press or rotate on click clockwise to change the 3 V setting to 4 V. The
source range is automatically set to 15 V.
To Next Page
