4.2.6 MENU Key (Parameter Setting)
4-6
Linear:
SWEEP VAL
Start Value Sets the start value for linear sweep.
Stop Value Sets the stop value for linear sweep.
Step Value Sets the step value for linear sweep.
Bias Value Sets the bias value (source value before sweep start).
PSW Base Sets the pulse sweep base value.

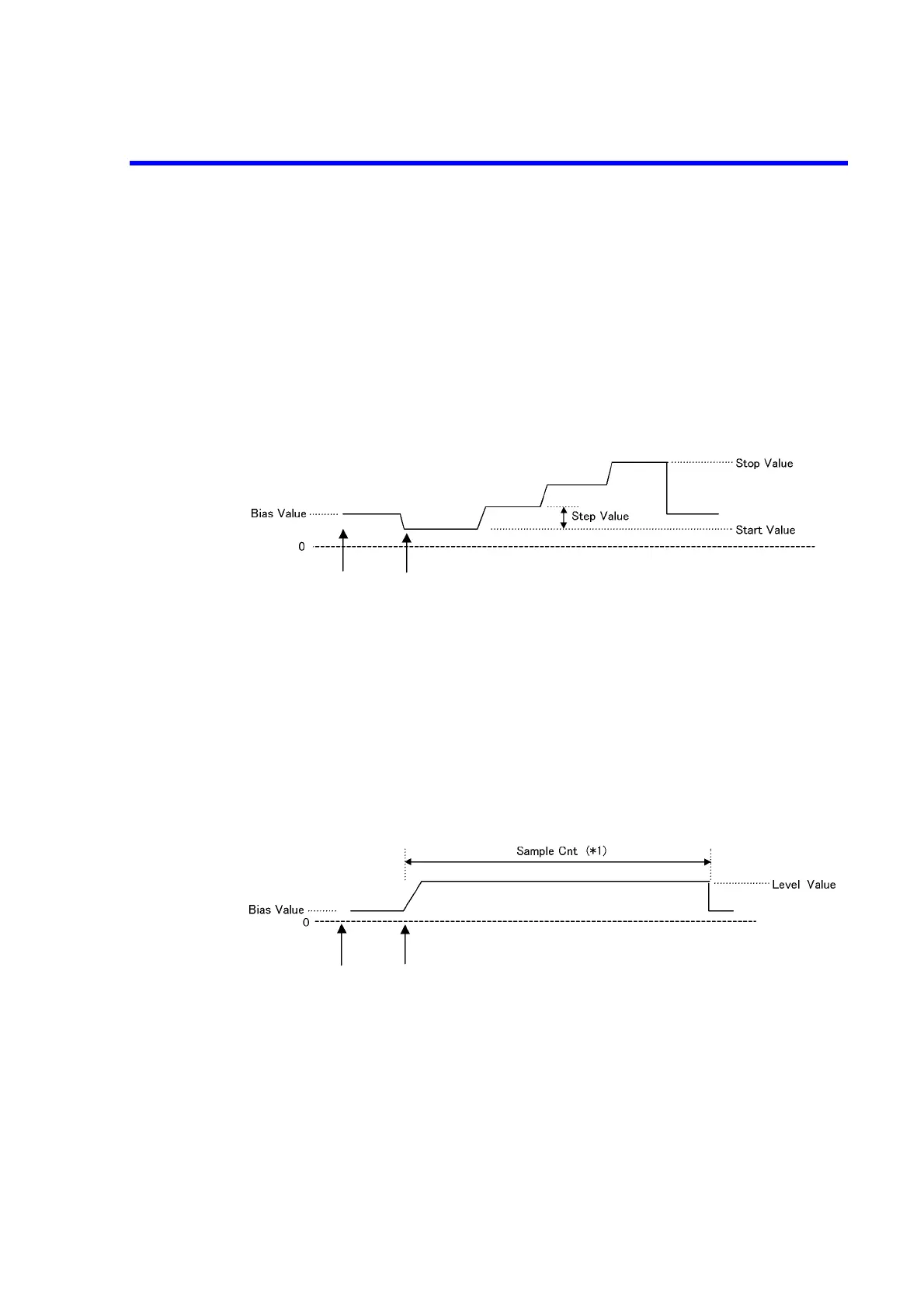

Figure 4-1 Linear Sweep
Fixed:
SWEEP VAL
Level Value Sets the fixed level value for fixed sweep.
Sample Cnt Sets the sample count (number of measurement in every Tp
period) for fixed sweep.
Bias Value Sets the bias value (source value before sweep start).
PSW Base Sets the pulse sweep base value.
Figure 4-2 Fixed Sweep
Operate Start
(*1) Repeats Tp period for the (Sample Cnt)
number of times.
Operate Start
