ADCMT 6240B User Manual

6240B DC Voltage Current Source/Monitor Operation Manual
2.1.1 Front Panel
2-3
2.1.1.3 SOURCE RANGE Section

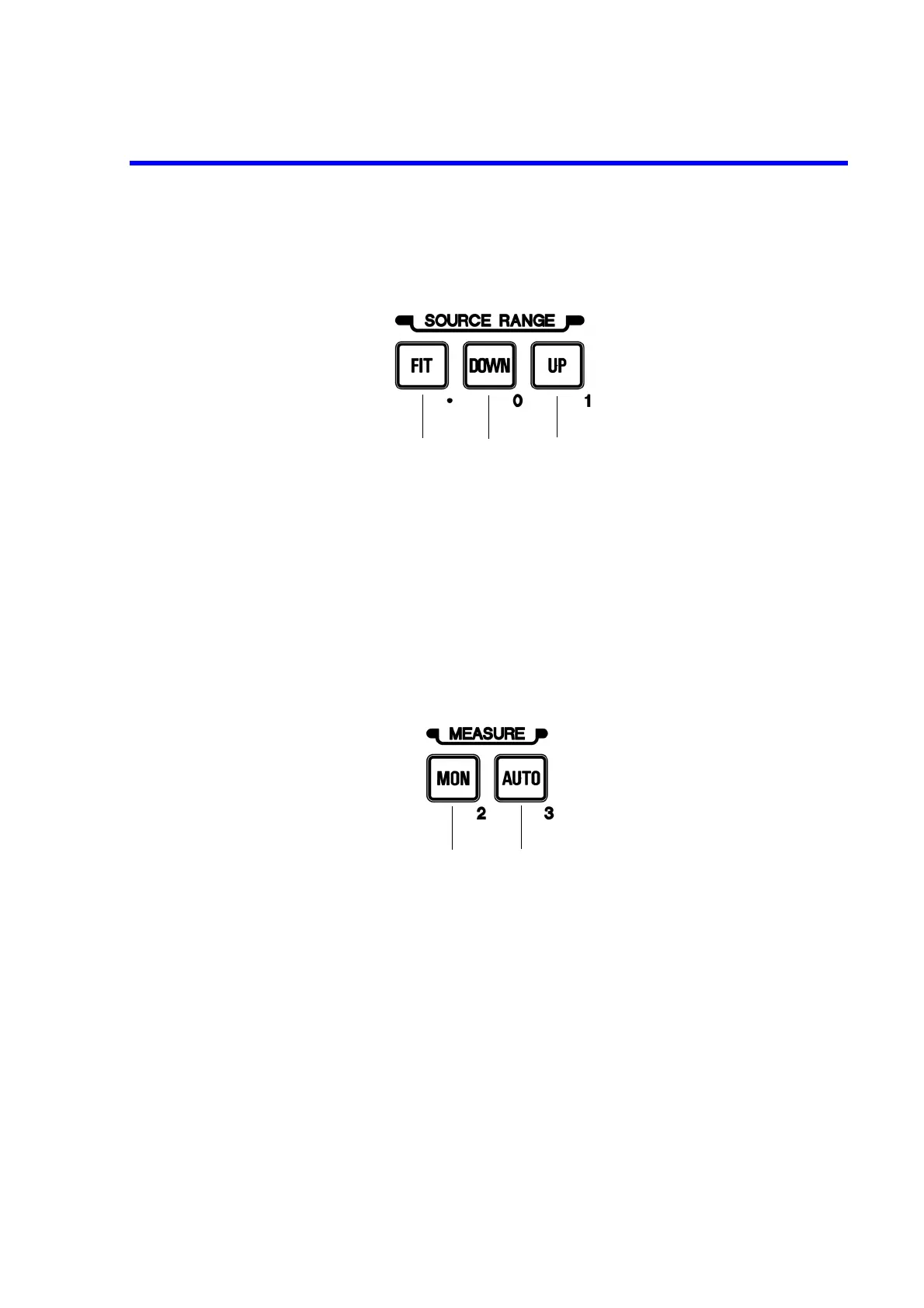

Figure 2-4 SOURCE RANGE Section
1. FIT key Selects the optimum fitting range (FIT) or the currently setting
range to input the source values.
2. DOWN key Lowers the source range.
3. UP key Raises the source range.
2.1.1.4 MEASURE Section
Figure 2-5 MEASURE Section
1. MON key Selects the measurement function (voltage, current, or resistance
measurement).
2. AUTO key Selects the measurement range (Auto or Fixed).
1
2
3
1
2
