6240B DC Voltage Current Source/Monitor Operation Manual

5.2.7 Limiter (Compliance)

5-44

5.2.7.2 Setting Limiters

1. Setting Types

Two types of limit value settings are available; one is Balance setting. This sets the same absolute

value on both the polarities, + and -; the other is Separate setting. This sets a different value on each

polarity.

For more information on these settings, refer to Section 2.2.2, "Setting Limit Values."

2. Setting ranges

For the HI limit and the LO limit values, the ranges are always the same.

The setting values are set in the optimal ranges.

3. Usage for Separate setting

Setting both the HI limit and LO limit values to + (positive) voltage can be used for rechargeable bat-

tery charge and discharge testing.

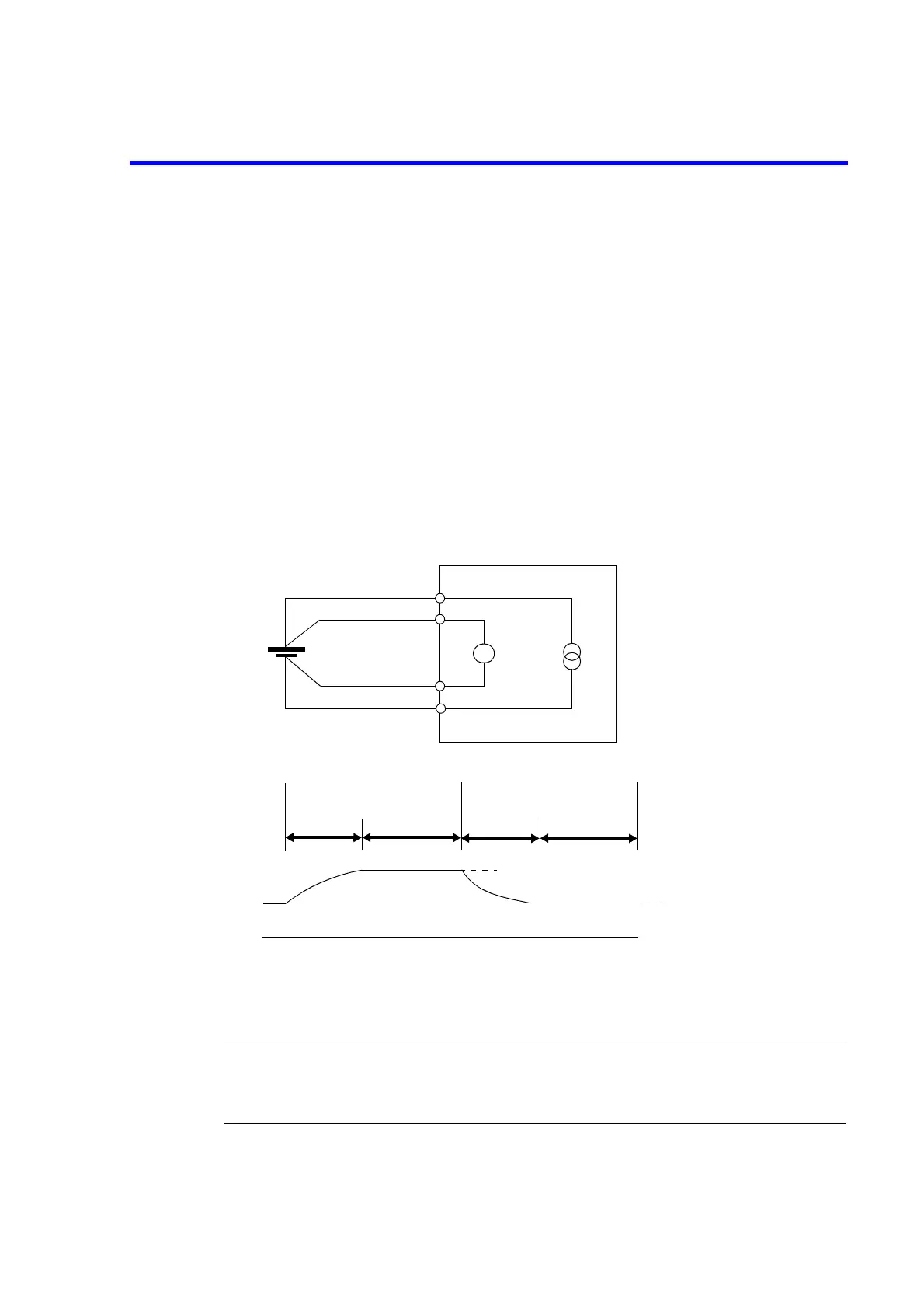

Figure 5-13 Rechargeable Battery Charge and Discharge Operations

Setting the HI limit value as voltage for charging constant voltage and the LO limit value as voltage

for discharging termination provides CV/CC operation as shown in the above figure.

NOTE: Applying higher voltage than the HI limit value or lower voltage than the LO limit value from an

external device sets overload (OVL) and then Standby.

For example, connecting a battery of lower voltage than the LO limit voltage results in overload

(OVL) and then Standby.

Connection diagram

6240B

HI OUTPUT

HI SENSE

LO SENSE

LO OUTPUT

Rechargeable battery

Charge Discharge

0 V

HI limit value

LO limit value
