6240B DC Voltage Current Source/Monitor Operation Manual
2.1.1 Front Panel
2-4
2.1.1.5 OUTPUT CONTROL Section

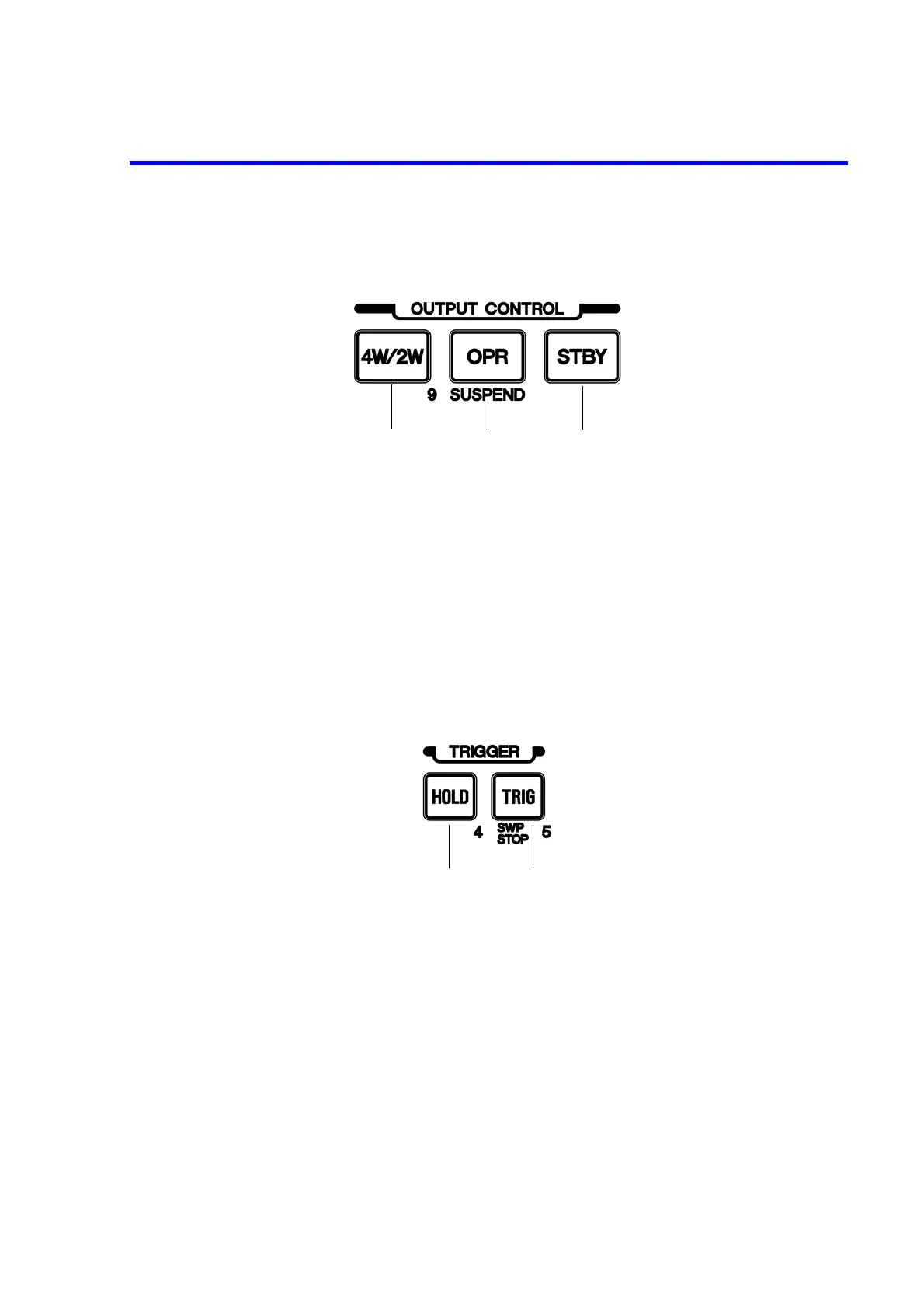

Figure 2-6 OUTPUT CONTROL Section
1. 4W/2W key Selects the output sensing 4-wire or 2-wire connection.
2. OPR key Switches between Operate and Suspend*.
* : Suspend status outputs the suspended voltage without turning
OFF the output relays. OPR indicator blinks.
3. SUSPEND (SHIFT, OPR) key Sets Suspend regardless of Operate or Standby status.
4. STBY key Sets the output status to Standby.
2.1.1.6 TRIGGER Section
Figure 2-7 TRIGGER Section
1. HOLD key Selects the trigger mode (AUTO or HOLD).
2. TRIG key When the trigger mode is set to HOLD, triggers measurement and
pulse source in the DC source or pulse source mode, and starts
sweep source or moves to the next step in the sweep source mode.
3. SWP STOP (SHIFT, TRIG) key
Stops the sweep.
