6240B DC Voltage Current Source/Monitor Operation Manual
2.1.1 Front Panel
2-2
2.1.1.1 Display Section

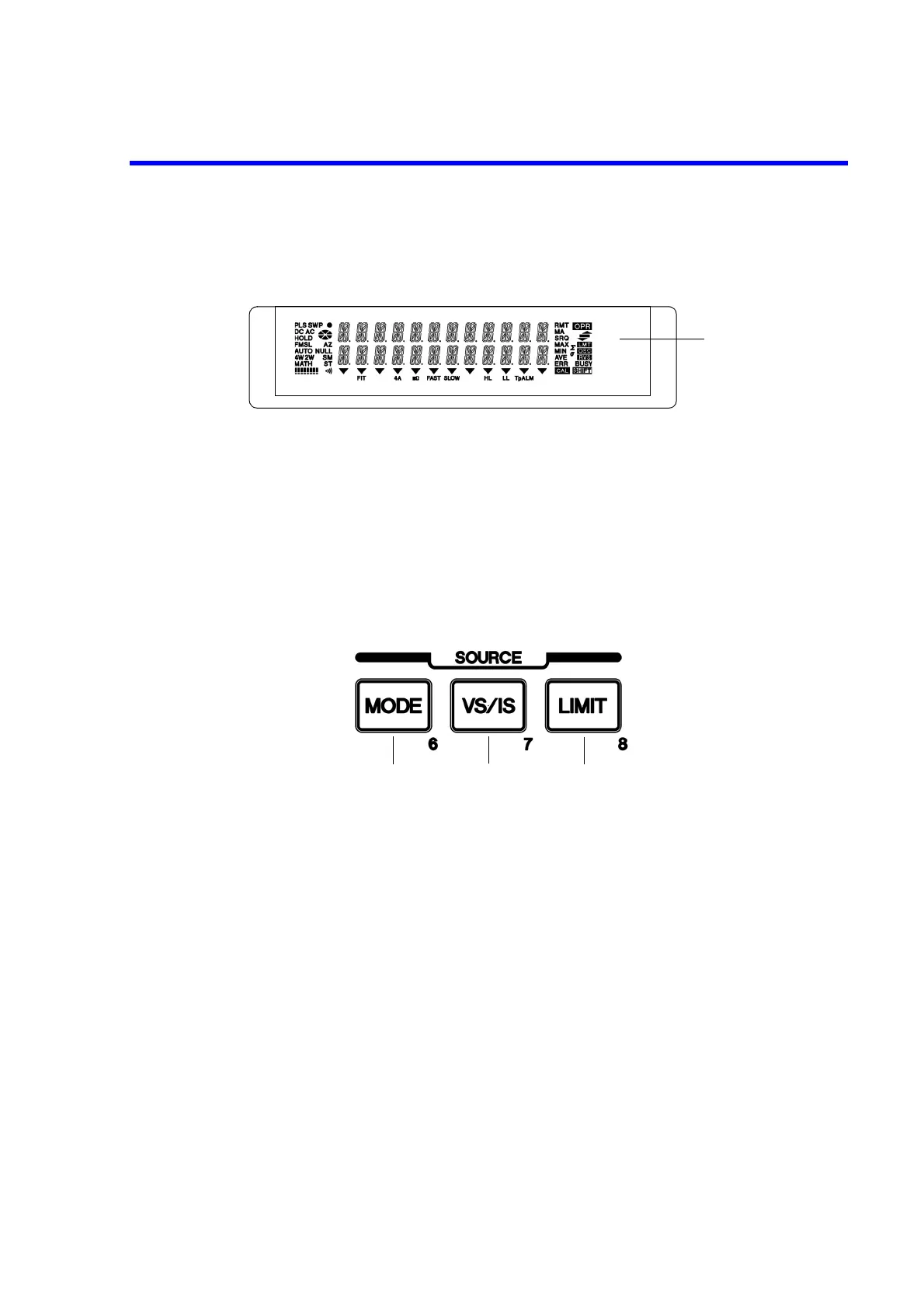

Figure 2-2 Display Section
1. Display The screen employs a vacuum fluorescent display.
It displays the source value, the measurement value and the unit
operational status.
It functions as setting screen when changing the setting parame-
ters.
2.1.1.2 SOURCE Section
Figure 2-3 SOURCE Section
1. MODE key Selects the source mode (DC, pulse, DC sweep, pulse sweep or
low-resistance measurement pulse).
2. VS/IS key Selects the source function (voltage source or current source).
3. LIMIT key Sets the limit value.
