ADCMT 6240B User Manual

6240B DC Voltage Current Source/Monitor Operation Manual
2.2.5 DC Measurement
2-34
2.2.5 DC Measurement
This section describes the operations of voltage source current measurement (VSIM) and current source
voltage measurement (ISVM) when a resistor of 1 k is connected.
The following figure shows the DC measurement operating status and operating point.

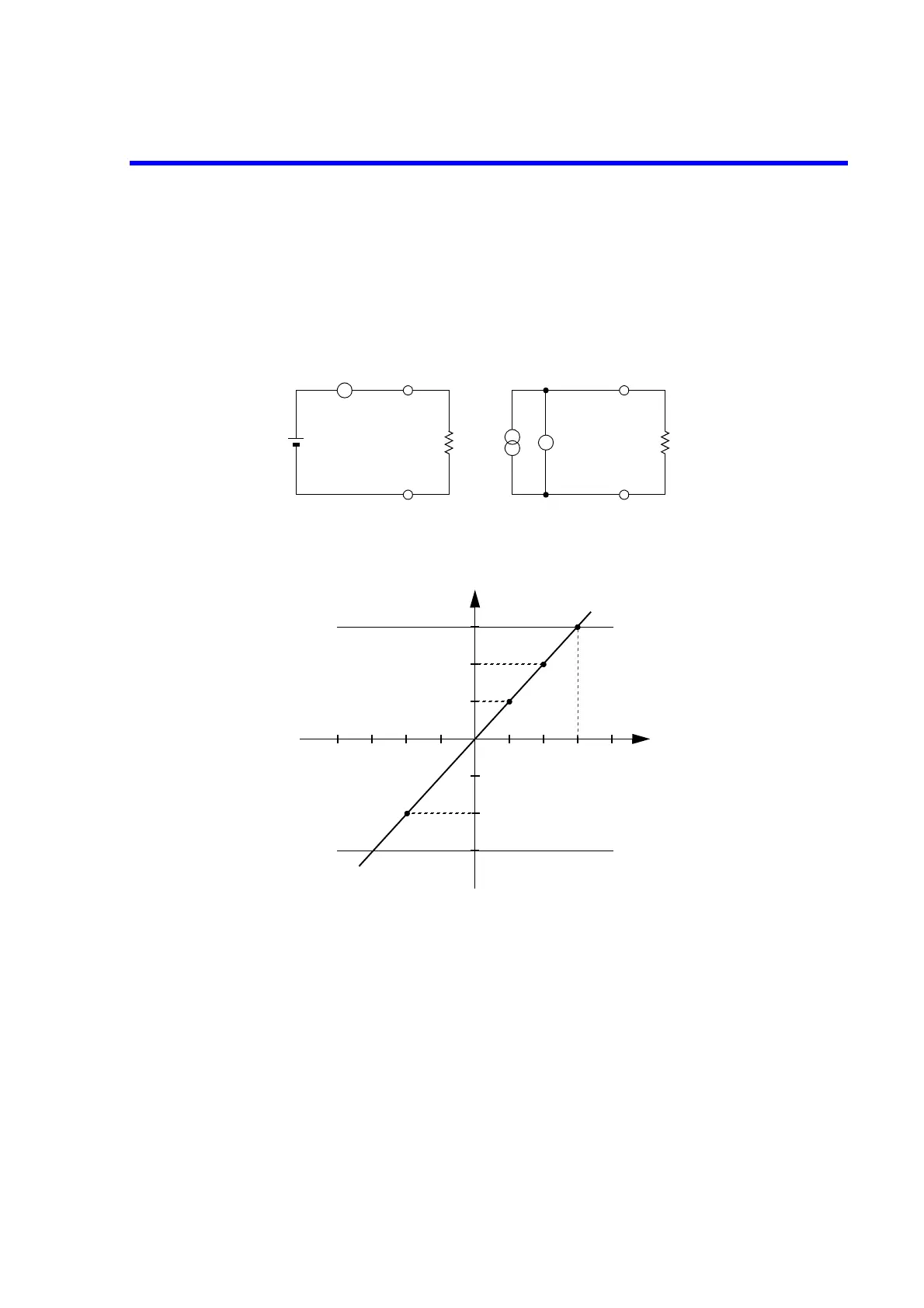

Figure 2-15 DC Measurement
Preparation
1. Initialize the 6240B in accordance with the procedure described in Section 2.2.4,
"Initializing Setting Conditions."
2. Connect the DUT with the supplied input and output cables and alligator clips.
• Connect the A08532 alligator clips to the A01044 input and output cables.
• Connect the input and output cables to the HI OUTPUT and LO OUTPUT
terminals of the 6240B.
• Clip the DUT 1 k resistor with the alligator clips.
A
Im
Vs R L
Is Vm
I
+3 mA
+2 mA
+1 mA
-1 mA
-2 mA
-3 mA
-4 V -3 V -2 V -1 V +1 V +2 V +3 V +4 V
V
D
B
A
C
R
L = 1 k 
+I L
-I L
R L
V
(a) Voltage Source Current
Measurement
(VSIM)
(b) Current Source Voltage
Measurement
(ISVM)
(c) Operating Point
