2. OPERATION
2-1
2. OPERATION
This chapter describes the part names and functions on the front and rear panels and screen display (annota-
tions) elements. The basic operations are explained by using measurement examples.
2.1 Panel Description
This section describes the part names and functions on the front and rear panels and the screen display (anno-
tation) elements.
Fore more information on the operation, refer to Chapter 4, "REFERENCE."
2.1.1 Front Panel
The following describes the panel keys and connectors for each front panel sections.

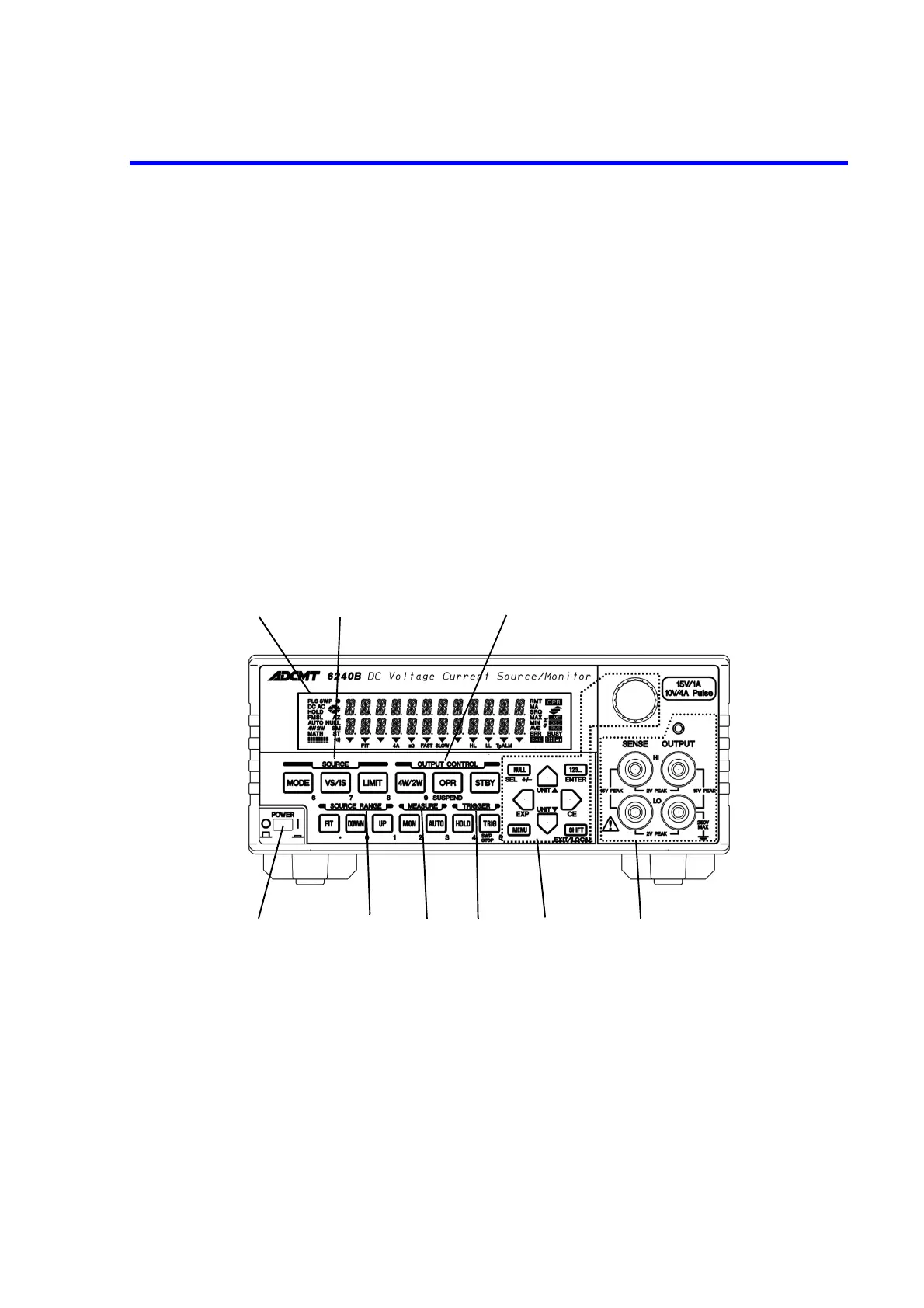

Figure 2-1 Front Panel
The front panel is divided into the following nine sections.
1. Display Section
2. SOURCE Section
3. SOURCE RANGE Section
4. MEASURE Section
5. OUTPUT CONTROL Section
6. TRIGGER Section
7. Other Keys
8. Output Section
9. POWER Switch
34
5
67 8
12
9
