ADCMT 6240B User Manual

6240B DC Voltage Current Source/Monitor Operation Manual
2.1.1 Front Panel
2-6
2.1.1.8 Output Section

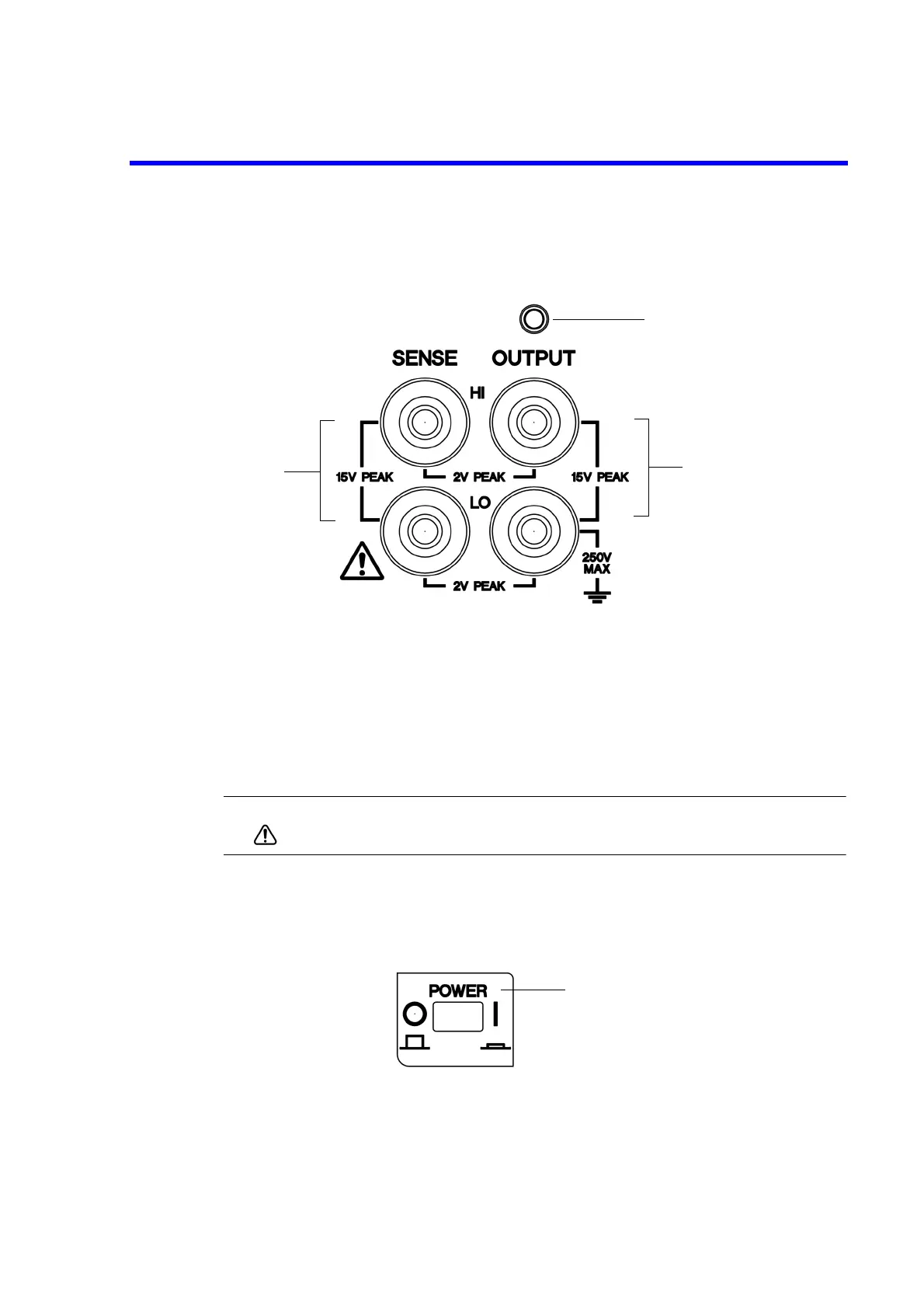

Figure 2-9 Output Section
1. OUTPUT terminals Voltage and current output terminals
2. SENSE terminals Function as sensing terminals for voltage output and input termi-
nals for voltage measurement in the remote sense mode (4-wire
connection).
3. OUTPUT Indicator Lights up when the output relay is ON (Operate or Suspend sta-
tus).
WARNING:
Electric shock danger. A hazardous voltage is output if an external hazardous voltage is
applied to the case, causing a potential difference between the case and the LO.
2.1.1.9 POWER Switch
Figure 2-10 POWER Switch
1. POWER Switch Turns the power ON or OFF.
1
2
3
1
