6240B DC Voltage Current Source/Monitor Operation Manual
5.2.3 Operations in Sweep Source Mode
5-19
5.2.3.4 2-Slope Linear Sweep
The 2-slope linear sweep function initially sweeps staircase waveform (staircase pulse waveform) of the
1st step value between the designated first value and middle value. Next, it sweeps staircase waveforms
(staircase pulse waveforms) of the 2nd step value between the designated middle value and last value.

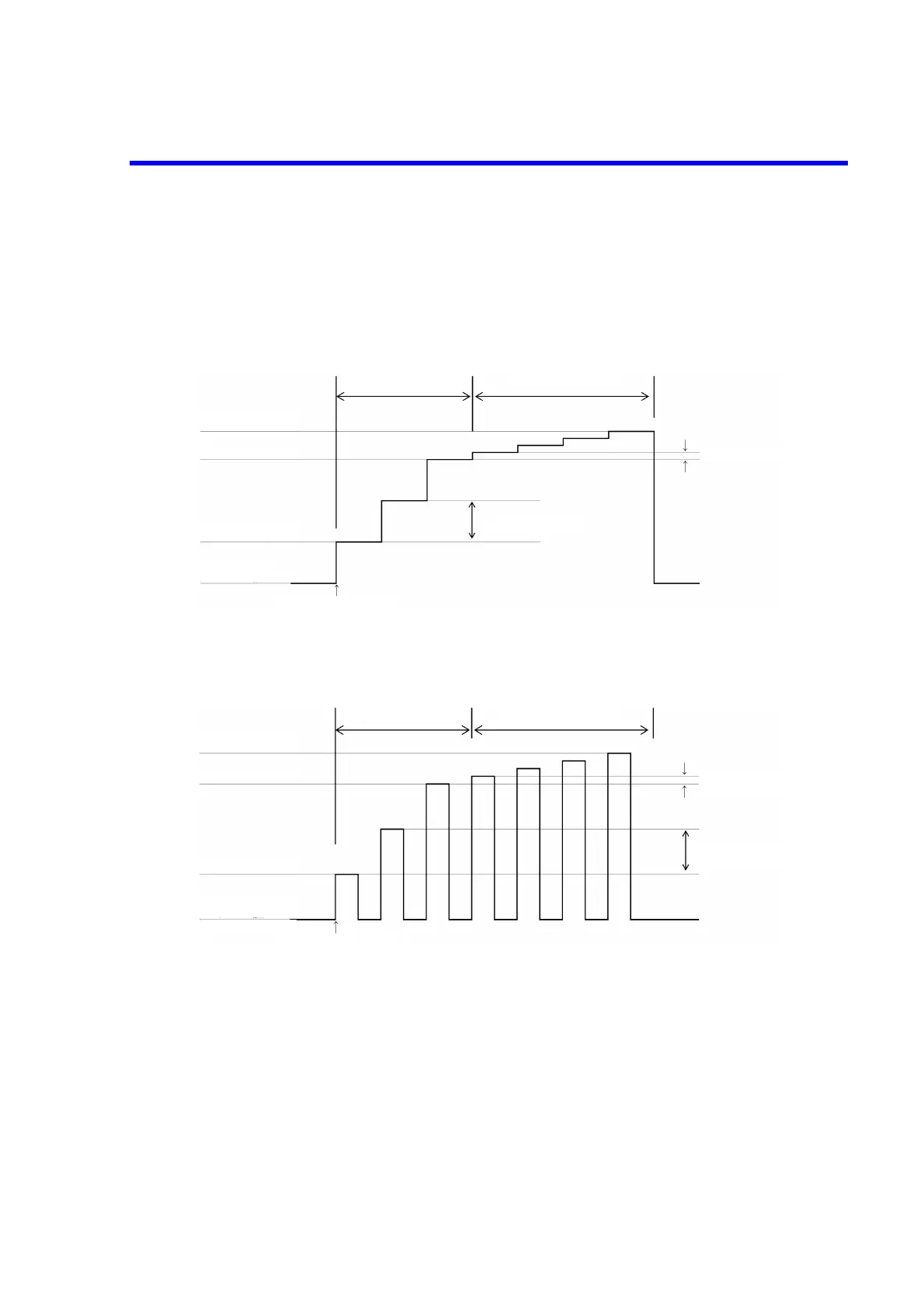

Figure 5-9 2-Slope Linear Sweep
Figure 5-10 2-Slope Linear Pulse Sweep
1st slope 2nd slope
2nd step
1st step
Last value
Middle value
First value
Bias value
Start trigger
1st slope 2nd slope
2nd step
Last value
Middle value
First value
Bias value
Start trigger
1st step
Base value
