4.2.6 MENU Key (Parameter Setting)
4-7
Random:
SWEEP VAL
Sweep Adr Sets the start and stop addresses for random sweep.
Select the parameter by using the NULL (SEL) key.
Bias Value Sets the bias value (source value before sweep start).
PSW Base Sets the pulse sweep base value.
Linear 2:
SWEEP VAL
First Val Sets the first value for 2-slope linear sweep.
Middle Val Sets the middle value for 2-slope linear sweep.
Last Val Sets the last value for 2-slope linear sweep.
Step1 Val Sets the step 1 value between the first value and the middle value
for 2-slope linear sweep.
Step2 Val Sets the step 2 value between the middle value and the last value
for 2-slope linear sweep.
Bias Value Sets the bias value (source value before sweep start).
PSW Base Sets the pulse sweep base value.

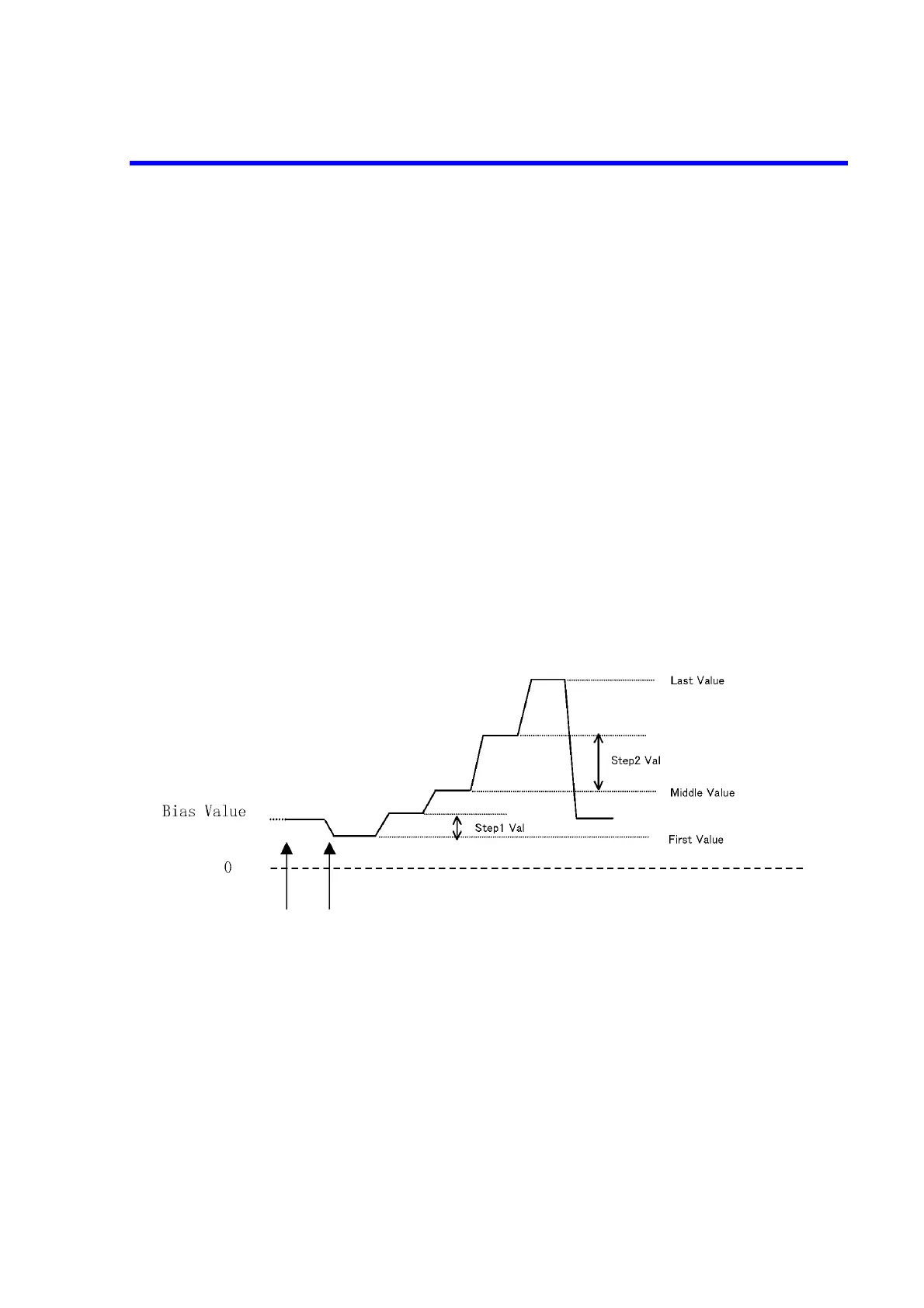

Figure 4-3 2-Slope Linear Sweep
TIME Sets the time-related parameters for source and measurement
Hold Time Sets the time from the sweep start to the step period start in the
sweep source mode.
Src Delay Sets the delay time (Tds) from the start of the period time (Tp) to
the source start in the pulse source mode or sweep source mode.
Meas Delay Sets the delay time (Td) from the measurement trigger to the mea-
surement start.
