6240B DC Voltage Current Source/Monitor Operation Manual
2.2.5 DC Measurement
2-37
10. Return the source value to +2 V with or , and press 123..., 4 and ENTER
in order.
The voltage source value is set to 4 V in the 15 V range.

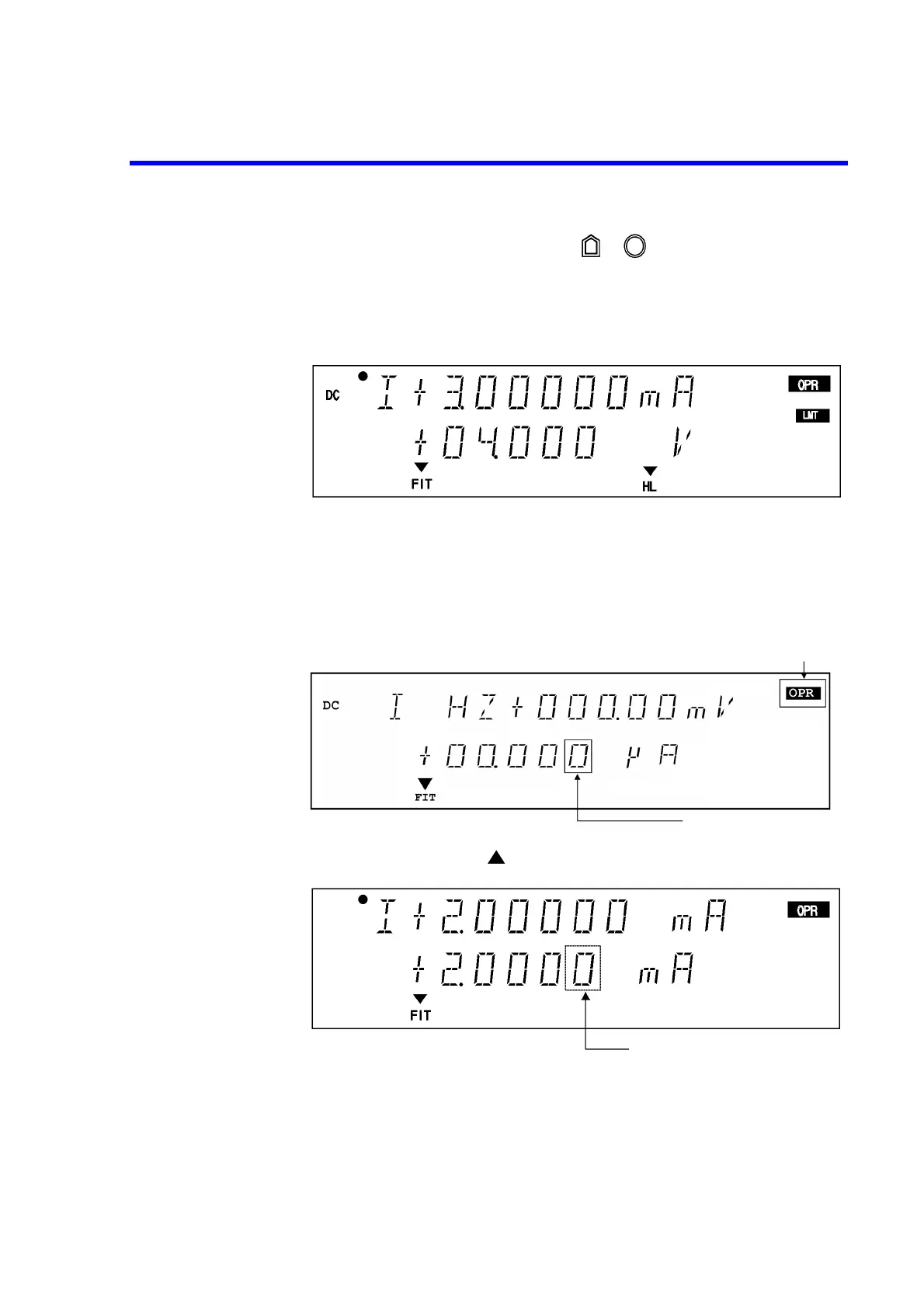

As the source current is limited by the current limiter, the limiter indicator goes
ON. (See Point D in Figure 2-15.)
Current source (ISVM)
11. Press VS/IS.
The measurement changes to current source and the 6240B goes into Suspend
status.
12. Press 123..., 2, UNIT , ENTER, and OPR in order.
Cursor (blinking)
Blinking
