ADCMT 6240B User Manual

6240B DC Voltage Current Source/Monitor Operation Manual

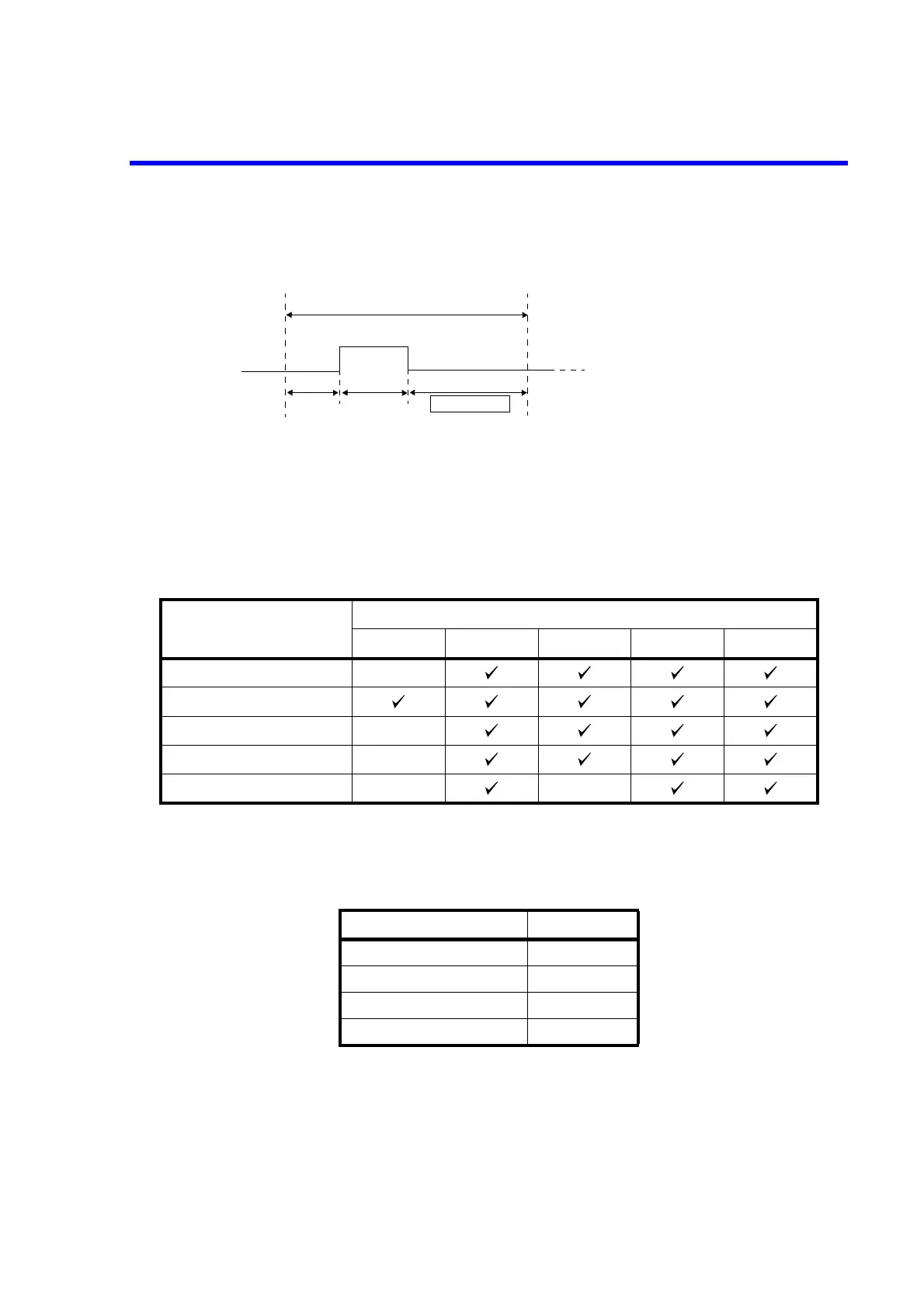

5.2.9 Source and Measurement Timing
5-48
• Source delay time (Tds) + pulse width (Tw) + 300 s < period time (Tp)
• Period time (Tp)  600 ms
Conditions: Source mode Pulse mode, pulse sweep mode
or low-resistance measurement pulse mode
Integration time Sample hold mode
2. Relationship between restrictions and source mode
The table below shows the relationship between the restrictions described above and the source mode.
3. Source delay time, measurement delay time and pulse width
The setting resolutions of the source delay time, the measurement delay time and the pulse width are
determined by the period time resolution. Values rounded off to the resolution are set.
Restrictions:
Source mode
DC PLS DC-SWP PLS-SWP PLS-RM
[Tds + 300 s < Tp] -
[Td + 300 s < Tp]
[Tds  Td] -
[Tds + Tw + 300 s < Tp] -
[Tp 600 ms] - -
Period time setting range Resolution
0.500 ms to 60.000 ms 1 s
60.01 ms to 600.00 ms 10 s
600.1 ms to 6000.0 ms 100 s
6001 ms to 60000 ms 1 ms
Tp
Tds 300 s or more
Tw
